1-10S Lader mit 500W / 20A bei 10-30V Eingangsspannung
starker Balancer mit 1,3A.

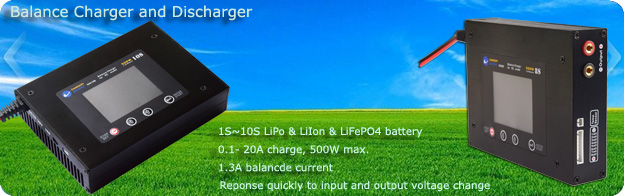

Chargery 5006B,5008B,50010B Series charger uses advanced Synchronous buck-boost DC/DC converter technology, high power, high current and high-performance power conversion circuit. The maximum charge power up to 500W, the maximum charge/discharge current is up to 20A. The charger can charge up to 10S LiPo, Lilo, LiFe, with maximum 1.3A balance current, adopts unique balance circuit resume fast all cells voltage.
Specifications:
Input voltage: DC 10-28V, 30V max.
Input Current: 25A maximal
Charge current: 0.1-20A, 500W max.
Discharge Current: 0.1-10A, 35W max.
Accuracy of the cell voltage: -5mV/+5mV
Balance current: 1.3A per cell only for LiPoly, Li-ion and LiFePO4 battery pack
The terminal voltage per cell can be set up to 4.35V only for HV LiPo battery. NiMh/NiCd cell count is identified automatically
Mechanical Characteristics: Size:154*114*33 (L×W×H, mm) or 6.1×4.48×1.3 (L×W×H, inch) Weight: 680g Input power cable: AWG14 wire, 600mm length
Lieferumfang: Ladegerät Ladekabel mit 4mm Goldstecker USB-Kabel 1 Temperatursensorkabel Adapterkabel mit Adapterplatine
Packaging Content: Charger unit: 1pcs Power cable: 1pcs, AWG14 wire, 320mm length with 4mm gold male connector USB data line: 1pcs Temperature sense lead: 1pcs adapter wire: 1pcs adapter board: 1pcs
Special Features:
1. Unique charge architecture realized better transient response to any changes of voltage on input and output.
2. The charger use advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 10S LiPo battery.
3. The charger adopts advance balance circuit and Algorithm, constant 1.3A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell voltage balance status at the shortest time. Over temperature protection make sure the system safety during balance.
4. Charger internal temperature protection. When the internal temperature exceeds the reduce temperature, the output power is automatically decreased; and the charger will stop working when temperature exceeds the shut-down temperature.
5. Intelligent fan control circuit sense internal temperature via temperature sensor, to thereby control the fan speed.

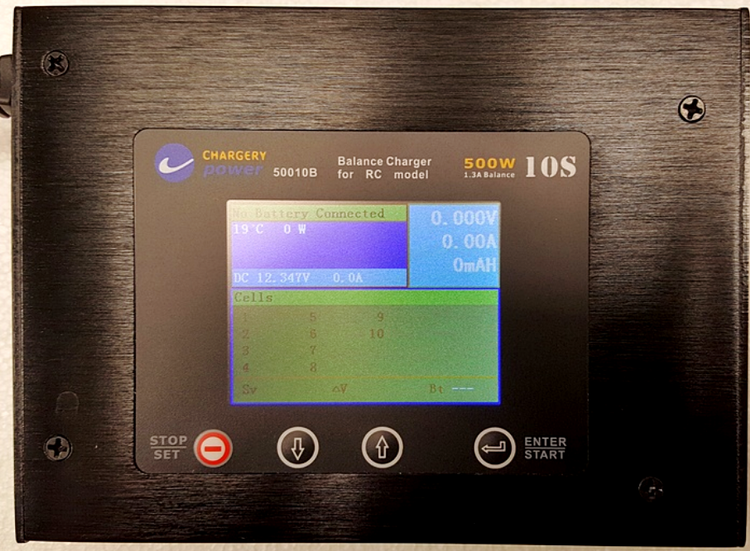

6. TFT LCD screen provides rich information including current, voltage, power, capacity, time, working status and temperature and so on.
7. The charger features a maximal safety protection,

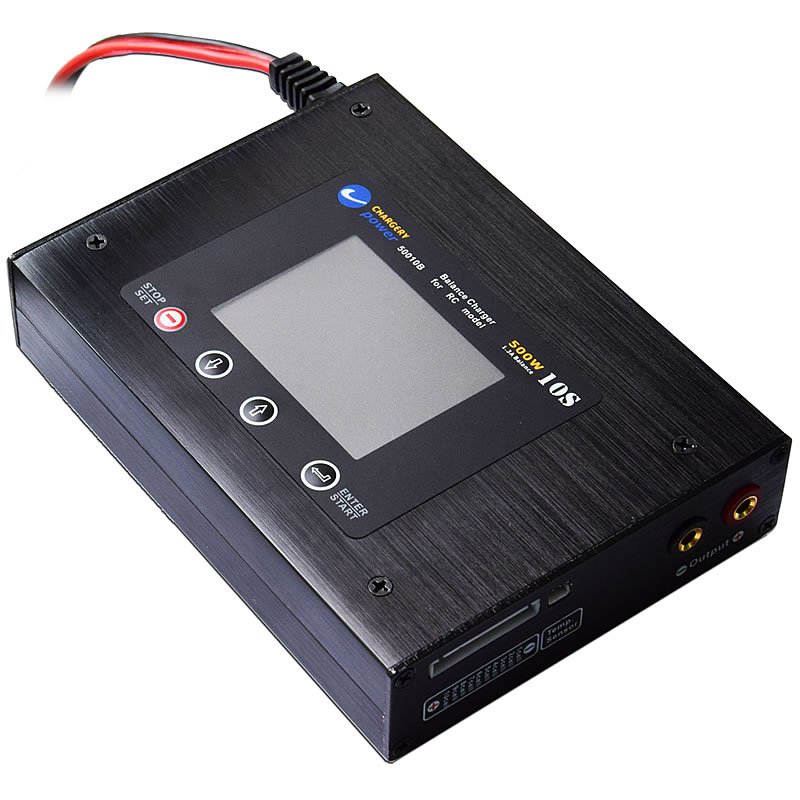

Chargery Ladegerät 50010B - 500W 10S
