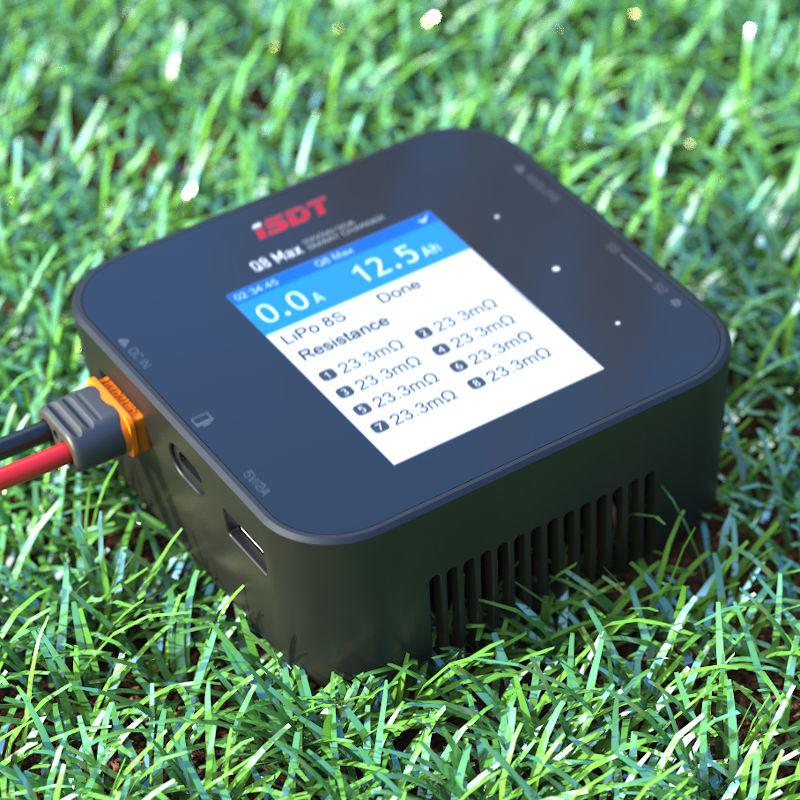

ISDT Q8 MAX 1000W, 30A, 8S Lipo Smart Charger
- 1000 watt charging power with up to 30A charging current
- powerful balancer with 1500mA / cell, up to 8 cells LiFe / LiIon / LiPo, 7 cells LiHv
- Supports BattGO at the entrance and exit. A very compact loader for this high performance
- The display is a color display with high brightness
New Operating System ScOS 2.0
- has been optimized for improved system stability
- New functions with additional programs:
- DC Power - the output can be used as a DC output can be used, voltage and current are adjustable
- dark mode - the display is switched for use in the dark
- battery scrap - if a battery is to be disposed of, this function can be set to 0V be discharged
Specifications:
- Input voltage: DC 10-34Volt
- Input current max: 20A
- Charge power max: 500W (over 27V input voltage)
- Output voltage: 1-34V
- Discharge power: 15W
- Charge current range: 0.1-20A
- Discharge current range: 0.1-1.5A
- Balance current: 1500mA/Zelle
- adjustable cell voltage: max 4,35V for LiHV
- cell count: 1-8 LiXX, 1-7 LiHV, 1-16 NiXX, 1-12 Pb
- weight: 170 g
- Dimension: 80x80x345mm
- Display: 2.4" 320×240 IPS LCD Angle 178°
- BattGO Support smart battery - output only
- updatable
- multilingual menu navigation
