Art.No.:
Manufacturer:YGE

YGE AUREUS 185 ESC 6-12S / UHV-BEC (5,5-12V)

New 12V UHV BEC 10A/25A (5.5-12V) & telemetry! 6-12S Lipo, 185A continuous current, 270A peak, supports all common telemetry protocols, such as VBAR, SBUS, Jeti, Graupner, Spektrum or S32 JLog, anti-flash, aluminum housing

Made in Germany
NEW RELEASE - in stock
Delivery time:

3-5 days

Recommended articles / accessories


YGE AUREUS 185 HV Brushless ESC 6-14S UHV BEC 12V/30A - Telemetryyge-logo.png



Highlights:

  • 185A continuous current / 270A peak / burst
  • 6-12S LiPo

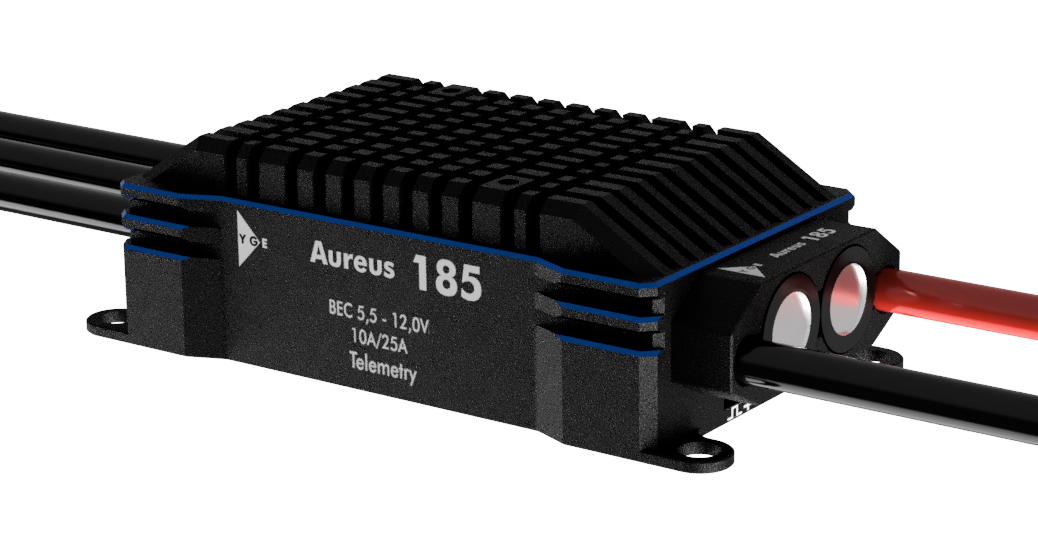

  • UHV-BEC 5.5-12V 10A continuous / 25A peakyge-aureus-185-hv-esc-6-12s-bec.png
  • Rubber grommets, fan with connector, screws and fancover included
  • black blue aluminum housing
  • high-quality fan included
  • integrated anti-flash
  • Dimensions: 96,5 x 47x 28 mm
  • Weight: 269g with all cables
  • pluggable receiver and telemetry cables with JST sockets
  • New 32-bit processor
  • full telemetry capability

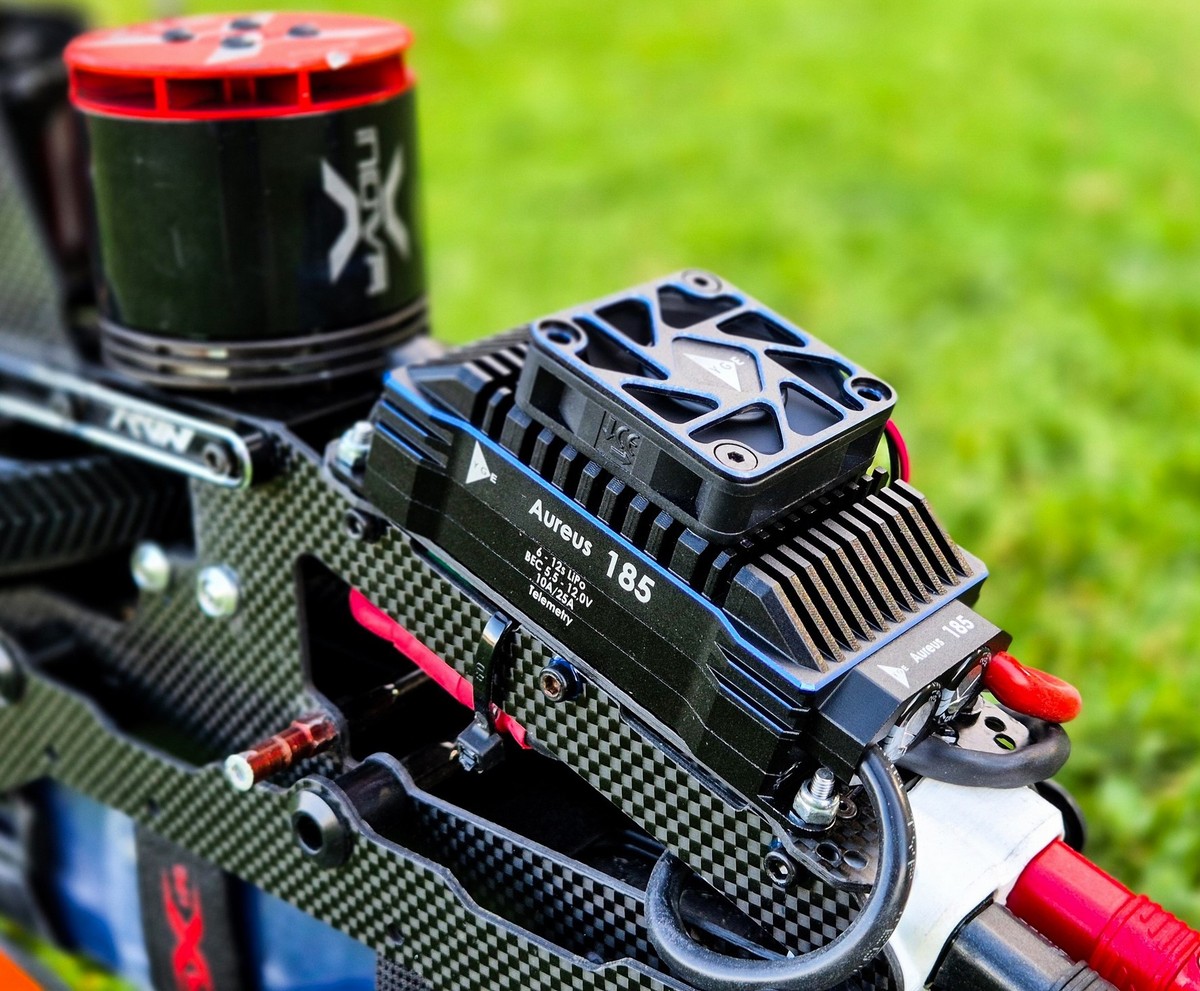

  • Sine startyge-aureus-185-esc-goblin-mounted.jpg
  • Super slow start selectable for scale helis (up to 60sec.) Current limitation yge-aureus-18585-esc-gobobobo Super slow start for scale helis selectable (up to 60sec.) )
  • Current limitation
  • Setting of the most important parameters directly in the transmitter (Graupner, Jeti and Mikado VBC)
  • Update and extended setup via PC software (optional USB adapter required)
  • Speed limit: 240,000 rpm (2-Poler)
  • Mounting brackets directly on the controller
  • "T" stands for telemetry.
  • All common parameters such as current, voltage, capacity, speed, temperature, etc. are transmitted.
  • The optional USB adapter allows the 265 Aureus to be set up in a variety of ways and new updates to be installed.
  • During operation, the PWM frequency is always automatically adapted to the needs of the motor and is therefore always optimal.
  • Thanks to the new sinusoidal start-up of the 265 Aureus HVT, the start-up behavior is now also SUPER SMOOTH.

The following protocols are currently compatible:
- Mikado VBAR
- Futaba, FR-Sky and Spectrum can be transmitted via the YGE-TEXY
- Graupner HoTT V4
- Jeti ExBUS
- Multiplex Sensor BUS V2
- Own YGE protocol for further telemetry connections

detailed Specifications:

- 6 to 12s LiPo
- 185A continuous current / 270A peak / burst
- The specified current is the maximum continuous full-gas current with good cooling.
- Back regulation or switch-off in case of undervoltage
- BEC 5.5-12V 10A continuous / 25A peak
- Current limitation
- Undervoltage detection can be switched off.
- Speed control (governor mode).
- Soft start.
- Active freewheeling, therefore unlimited partial load resistance.
- Automatic timing, or adjustable in 6 steps.
- EMK brake adjustable.
- F3A / Acro brake (brake strength continuously adjustable in flight).
- Min. and max. values are logged and can be displayed in the optional PC tool after the flight (e.g. current)
- Speed limit: 240,000 rpm (2-Poler)
- Overtemperature / overload warning
- Anti-flash: Reduces the switch-on spark.
- Basic programming via mode setup.
- Fine adjustment and selection of telemetry protocol via PC setup, suitable USB adapter is optionally available.
- Dimensions: 96,5 x 47 x 28 mm
- Weight with all cables: 269g
