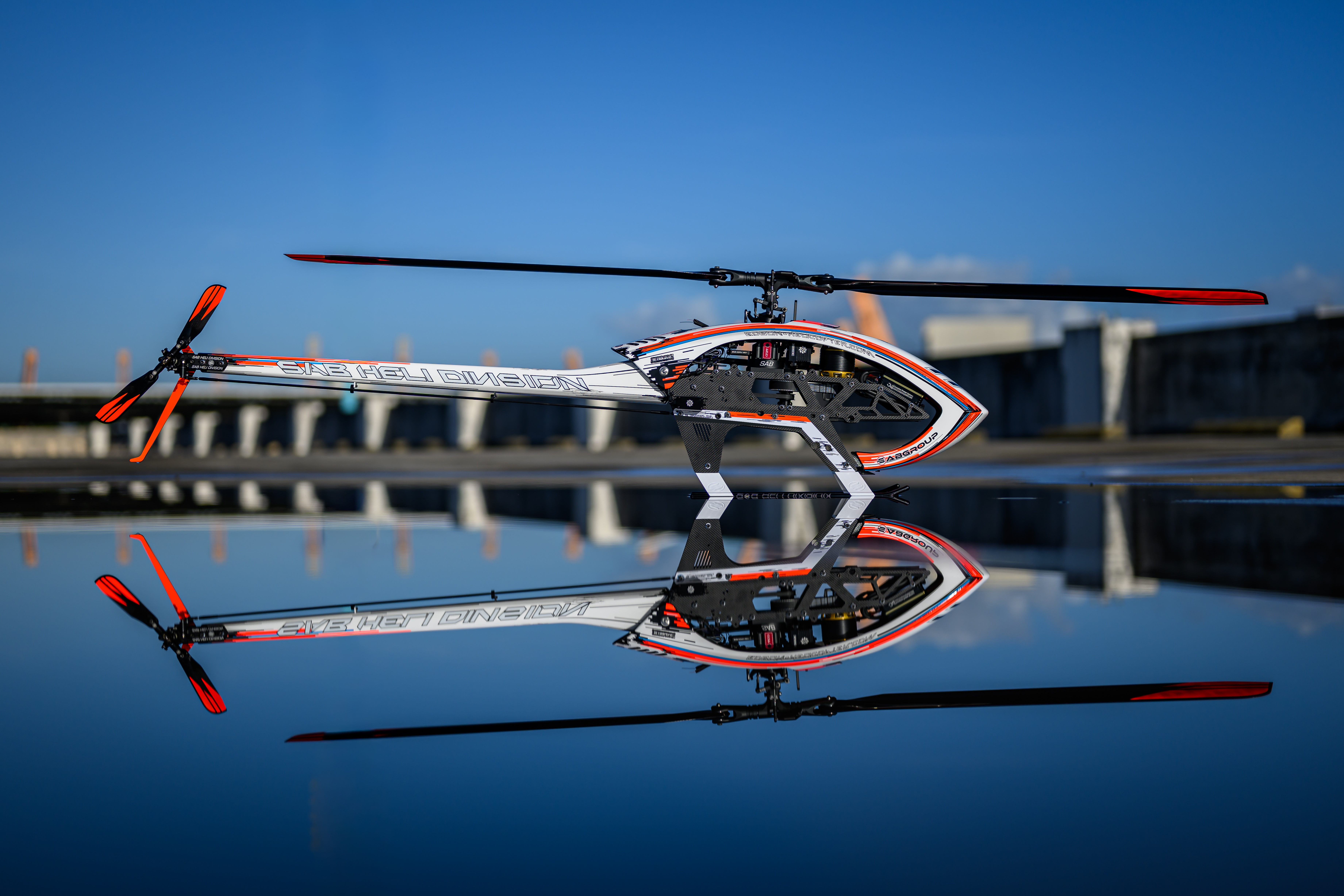

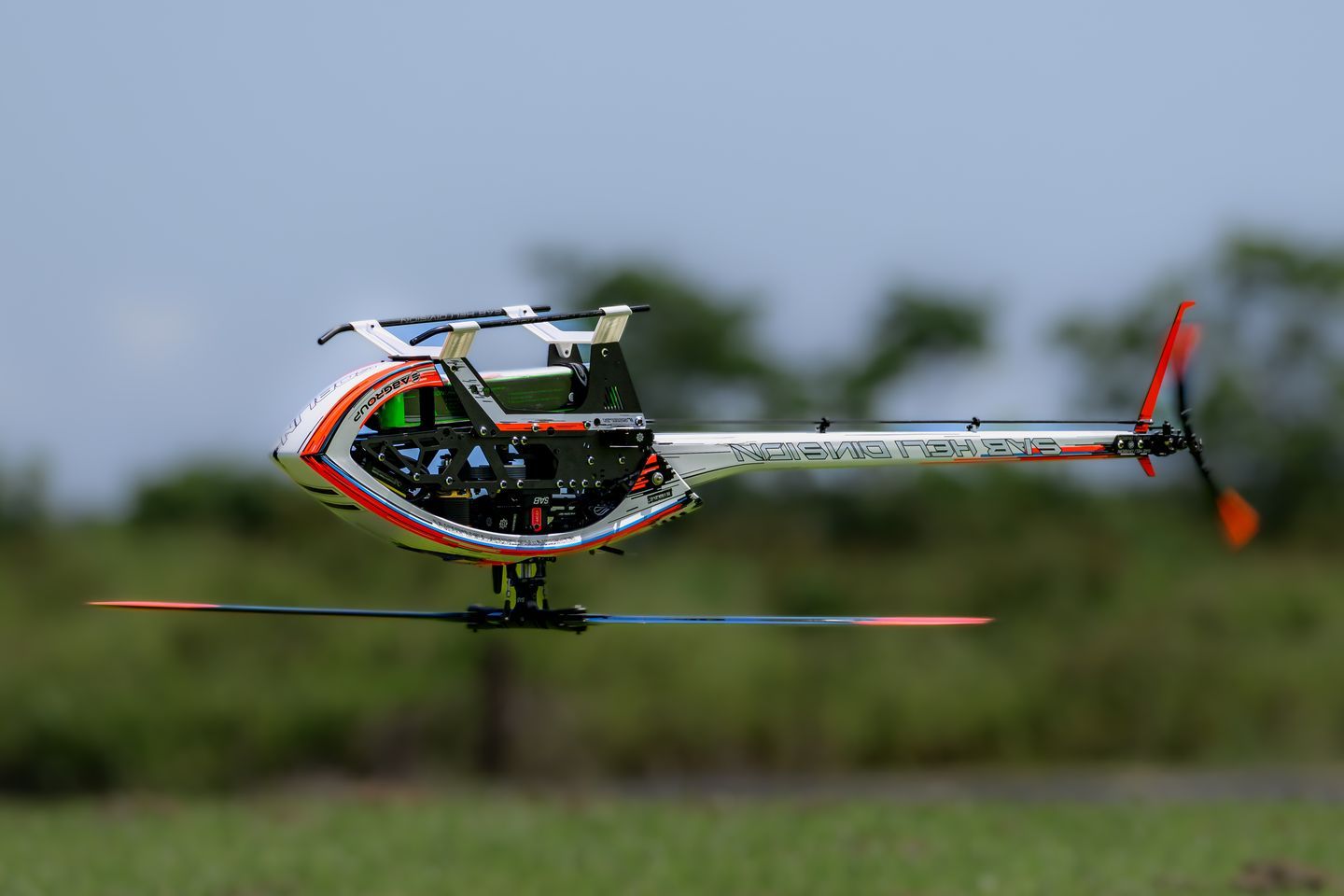

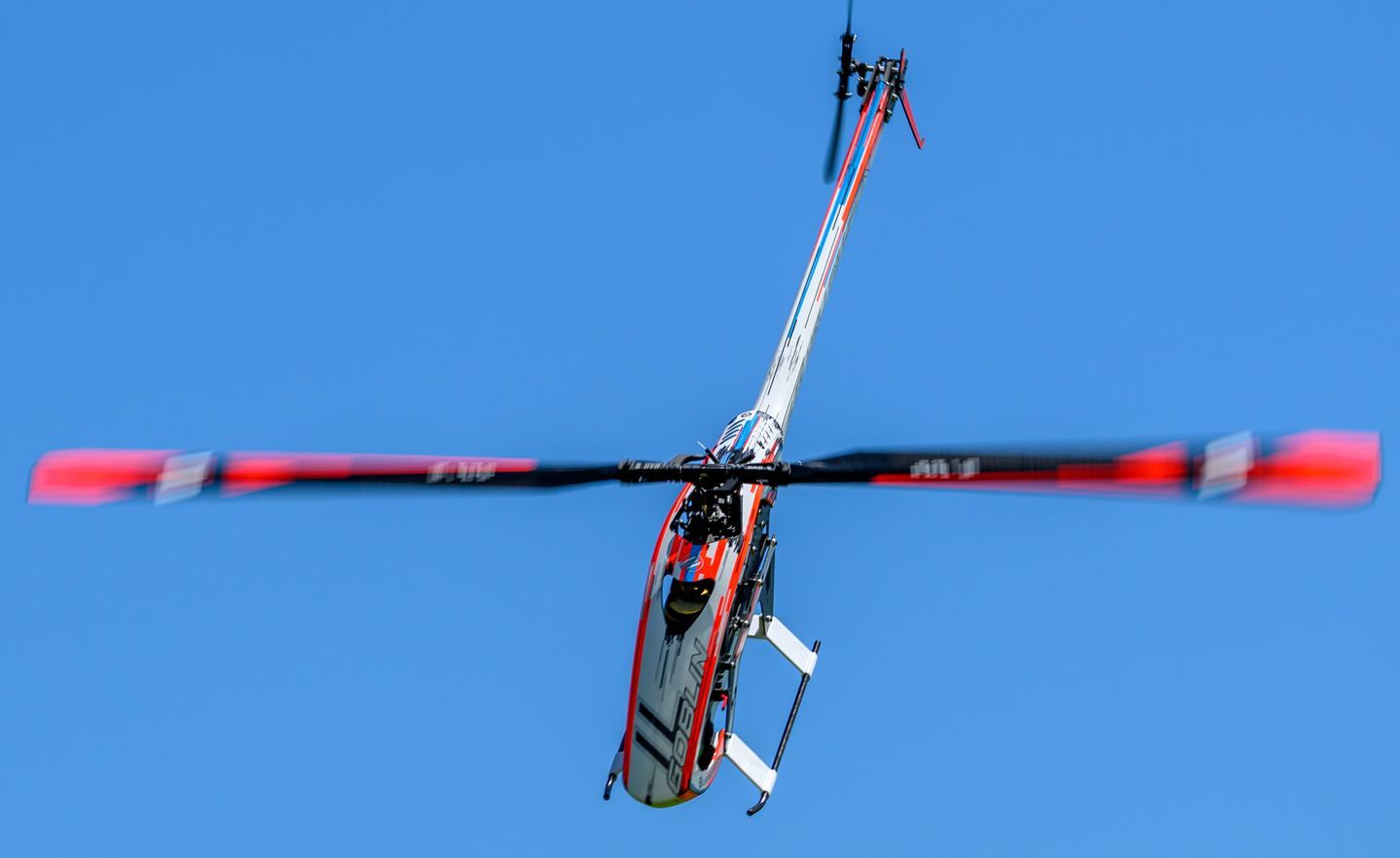

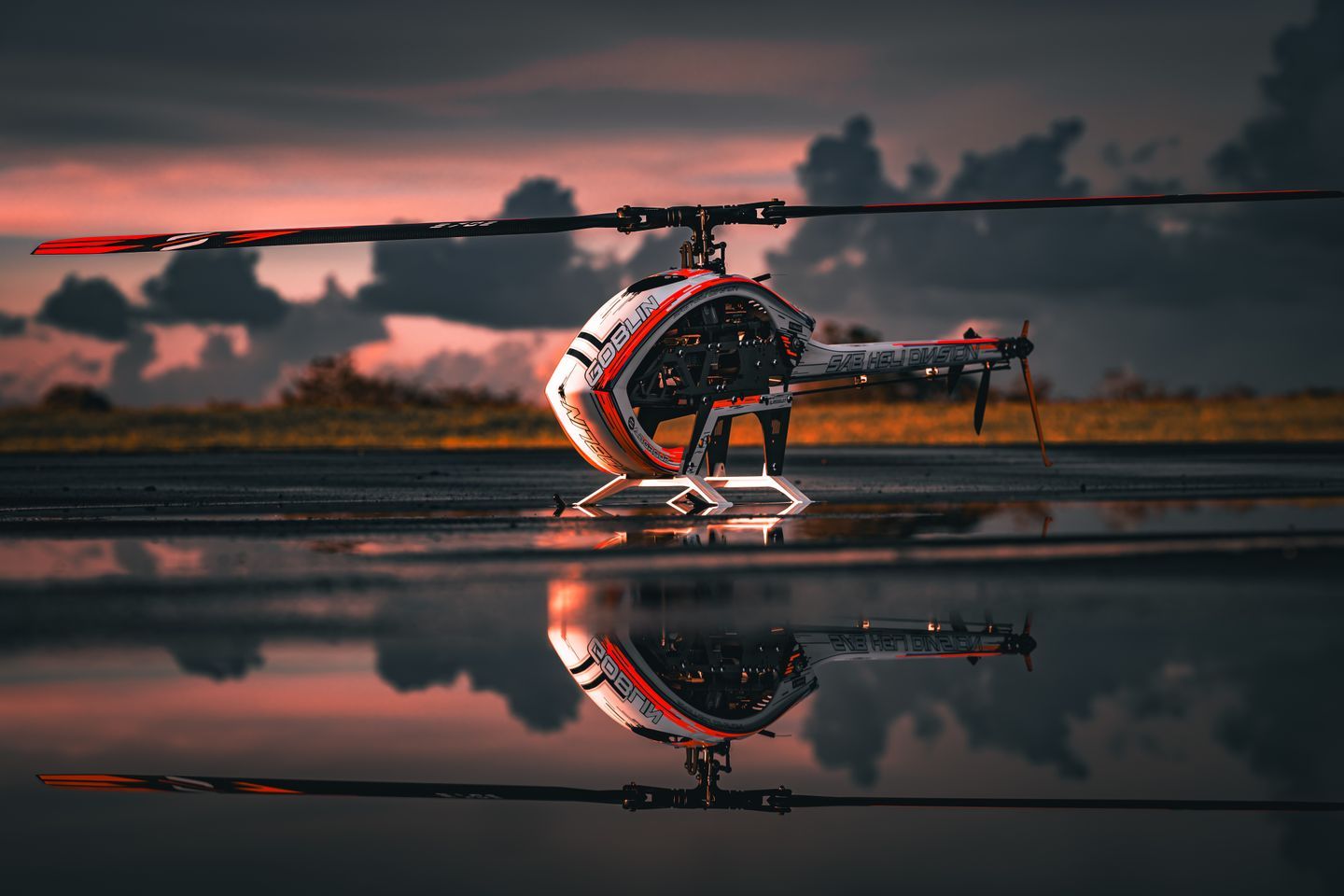

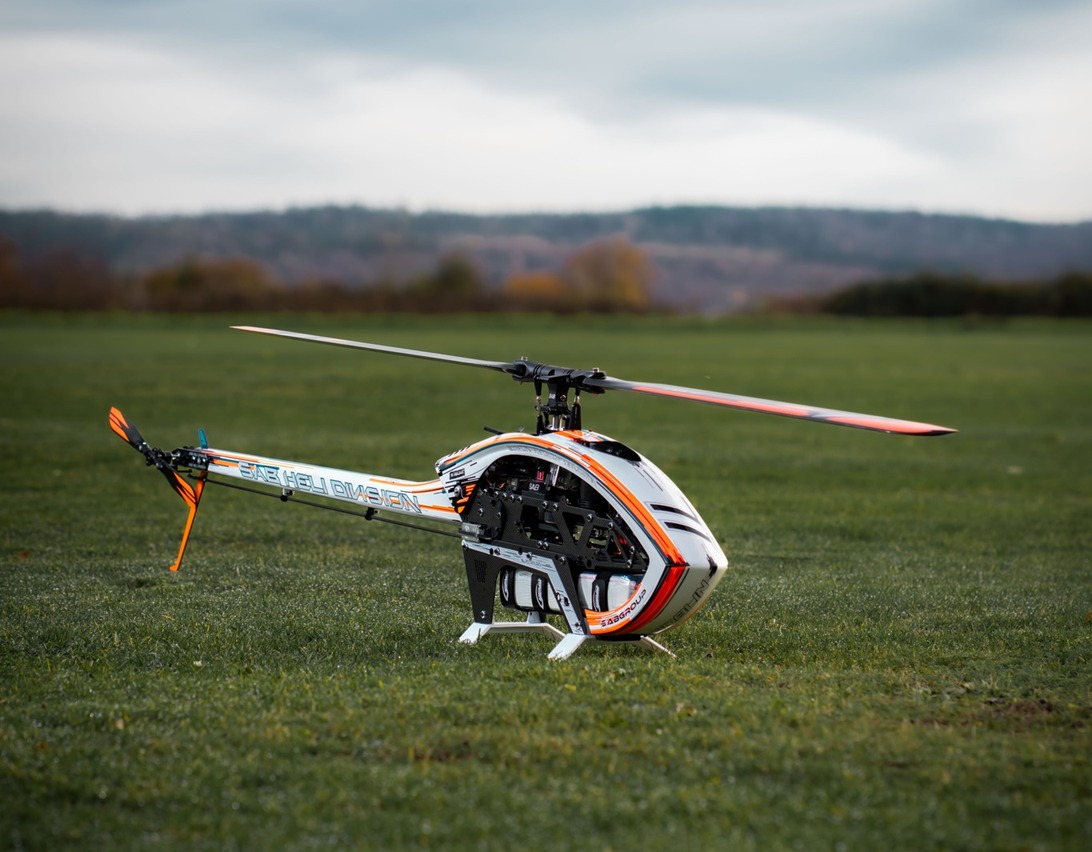

» SAB ILGOBLIN PIUMA «

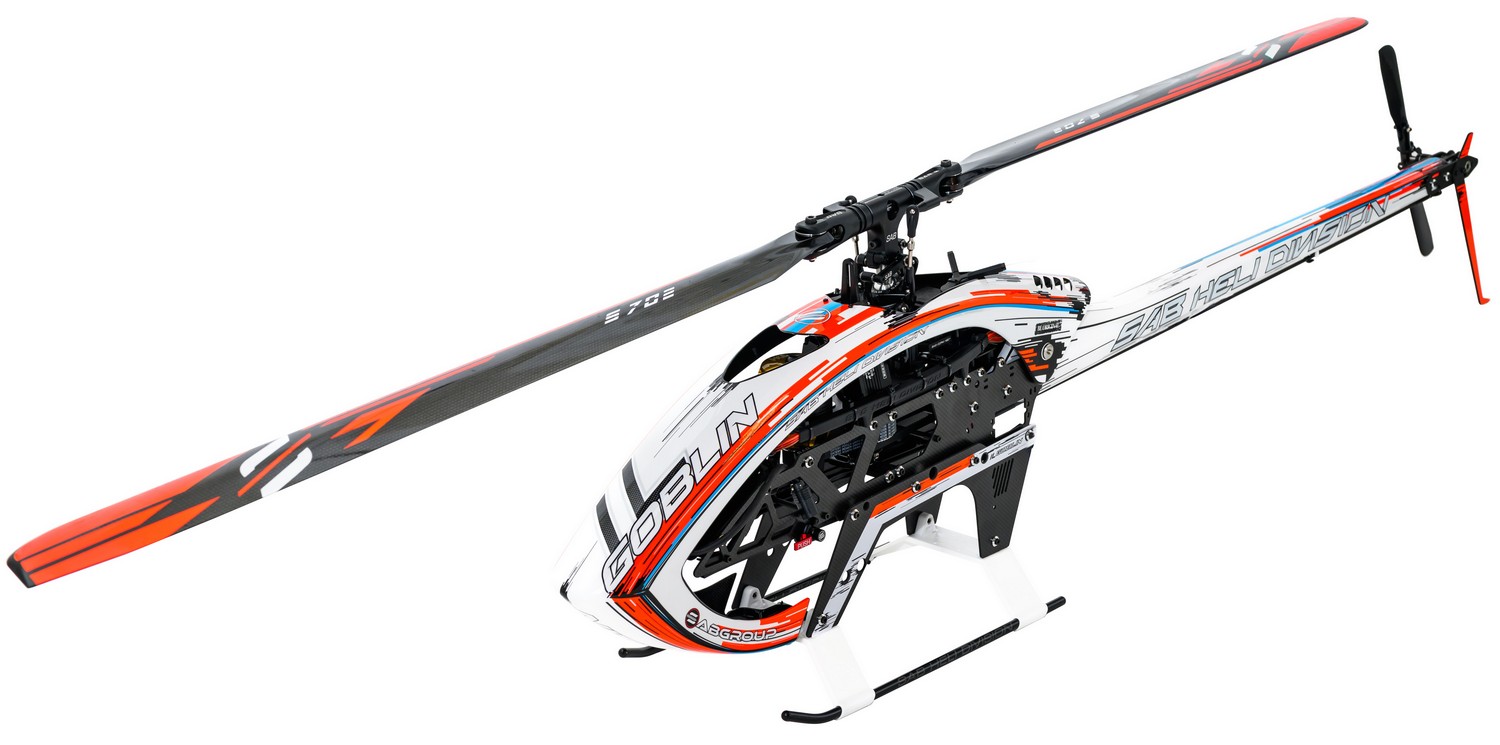

THE NEW ILGoblin PIUMA
is the result of a carefully engineered design that ensures the stiffness and reliability typical of standard 700-class models, while maintaining a strong focus on lightness and structural simplicity.
Equipped with a 12 mm main shaft, a 10 mm spindle, and a main gear shared with the ilGoblin PRO, the PIUMA stands out as a model that is both solid and lightweight.
Thanks to its intelligent and modular design, the ILGOBLIN PIUMA can be easily converted into a NITRO version with the ILGoblin NITRO CONVERSION KIT SC769.
giving pilots the freedom to test both power options—electric and nitro—with minimal effort.
As always, the model features original and innovative graphic schemes and offers the option to install a standard aluminum tail boom, adding even more versatility to this new Goblin release.

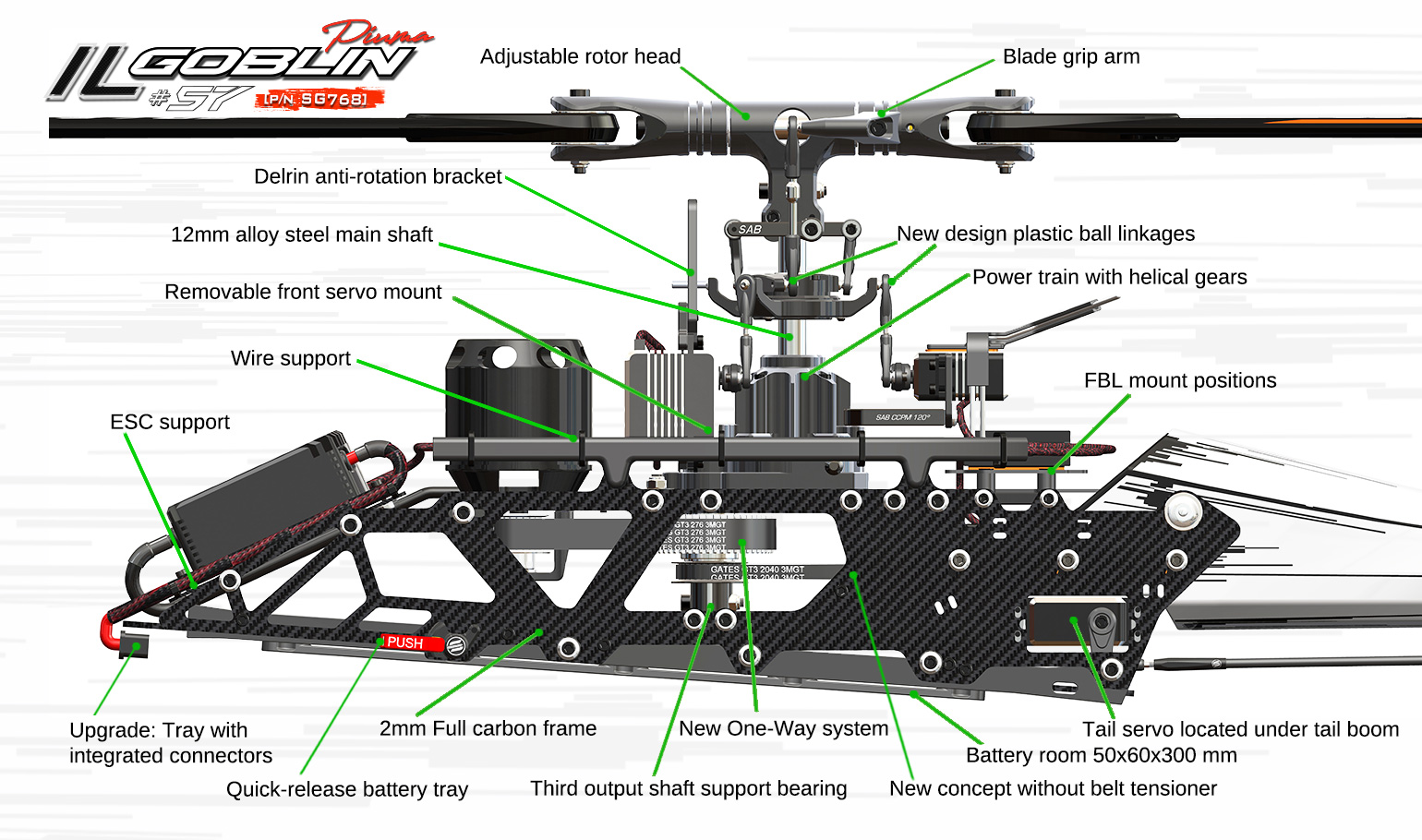

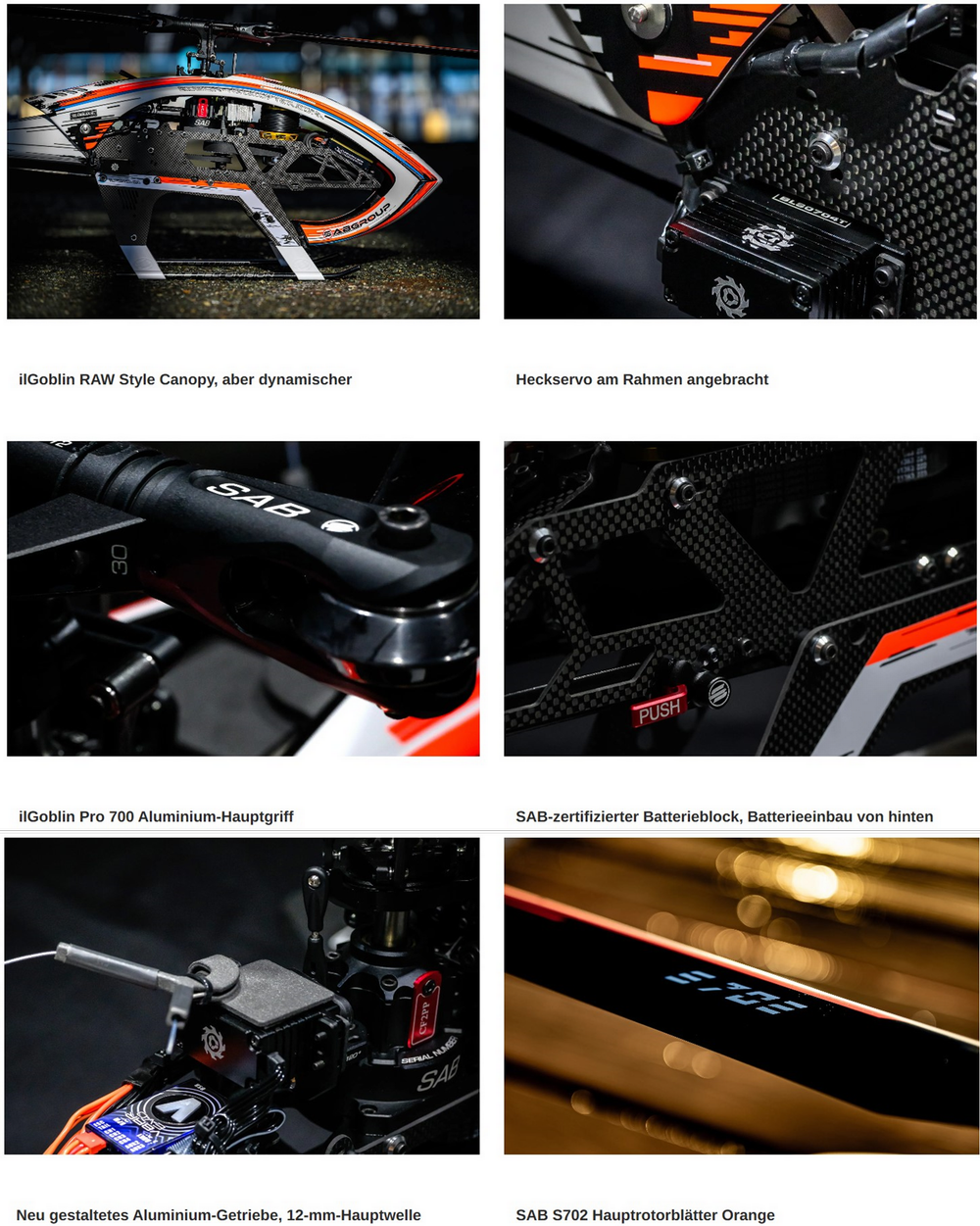

HIGHLIGHTS:
Main Rotor
- Blades grip size: same as ilGoblin PRO
- Main shaft: 12 mm, Tail shaft: 6 mm, Spindle: 10 mm, Bearings: 10x19x5 mm
- Optional pivot shaft for the spindle allows fine-tuning of head rigidity and maximum movement
Tail Rotor
- Shaft and hub machined from a single piece for maximum precision
- Tail pulley available in three different sizes to adjust tail ratio based on personal preference
Tail Boom
- Constructed using high-pressure molding technology
- Total weight: only 180 grams
- Made of molded carbon for strength and lightness
Canopy & Blades
- Unique canopy design allows battery insertion from the rear — no need to remove the canopy
- Integrated connectors make battery changes fast and convenient
Features / Special characteristics
Technische Daten ILGOBLIN PIUMA:
- Airframe weight: 1995 g (without blades, motor 4525, 180A ESC, servos, FBL)
- Main blade length: 650–715 mm
- Tail blade length: 105–115 mm
- Cyclic servos: Standard size (40 mm)
- Tail servo: Standard size (40 mm)
- Main rotor ratio: 11.8 to 8.8 : 1 (21T pulley included = 10.1 : 1)
- Tail rotor ratio: 4.88–4.66 : 1 (23T pulley included = 4.66 : 1)
- Power system: Supports 6S–12S setups, Motor KV range: 480–560 / 950–1100 KVBattery compartment: 50 x 60 x 300 mm
Included:
- ILGoblin PIUMA 700 Kit
- 21T motor pulley (other pulley sizes available)
- 1 battery tray
- S702-O Orange main blades (700 mm)
- S110-O Orange tail blades (110 mm)
RC / Electronic Recommendation:
Heli Servo Combo 3x Swashplate, 1x Tail:
- KST 12V HLS SERVO COMBO HELI (3x HLS3008-12 / 1x HLS1535-12)
- KST X20 HLS SERVO COMBO HELI (3x X20-2208 / 1x X20-1035)
Swashplate Servo Standard 40mm (3x):
- KST BLS915 (3x)
- FUTABA HPS-H701 (3x)
- MKS HBL960 (3x)
- SAVOX SB-2295SG (3x)
Tail Servo Standard 40mm:
- KST BLS905X Heckservo
- MKS HBL 990
- SAVOX SB-2295SG
ESC with BEC 12S Lipo:
- HobbyWing Platinum PRO 180A HV V5 Regler 6-14S
- SCORPION TRIBUNUS III 14-220A 4-14S HV BEC

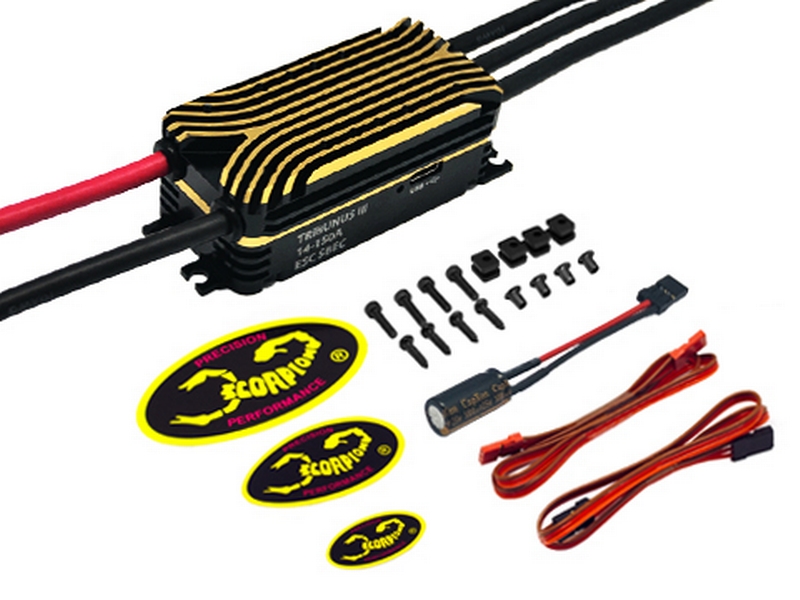

- SCORPION TRIBUNUS III 14-150A 4-14S HV BEC
- YGE AUREUS 135 HV-BEC 6-12S
- YGE AUREUS 185 HV BEC 6-12S
ESC with BEC 6S Lipo:
- YGE SAPHIR 125 HV BEC 4-8S
- HobbyWing Platinum PRO 150A 3-8S HV BEC
- SCORPION TRIBUNUS III 06-160A 3-6S HV BEC
- YGE SAPHIR 155 HV BEC 4-8S
- YGE SAPHIR 125 HV BEC 4-8S
Motor 12S Lipo:
- SCORPION HK5-4525-535KV - Sport & 3D bei max. Effizienz
- XNOVA Lightning 4525-530KV - Sport & 3D
- XNOVA Lightning 4530-525KV - 3D
- SCORPION HK5-5024-535KV (6x36) - 3D der Powermotor
Motor 6S Lipo
- SCORPION HK5-4026-1115KV - 3D Power
- XNOVA Lightning 4025-1120KV - Sport & 3D
Flybarless System:
- MSH Brain2
- Microbeast
- VANTAC
Power Drive battery 12S 4500-55000mAh (max. size 50x60x300 mm)
- SLS QUANTUM 4500mAh 12S1P 65C/130C
- SLS QUANTUM 5000mAh 12S1P 40C/80CSLS XTRON 5000mAh 12S1P 40C/80C
- SLS XTRON 5000mAh 12S1P 50C/100C
- SLS QUANTUM 5000mAh 12S1P 65C/130C
