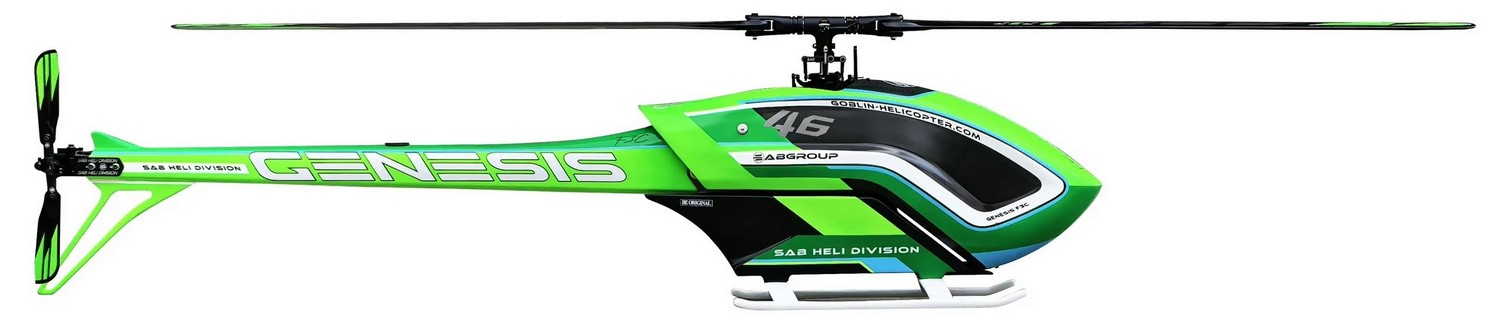

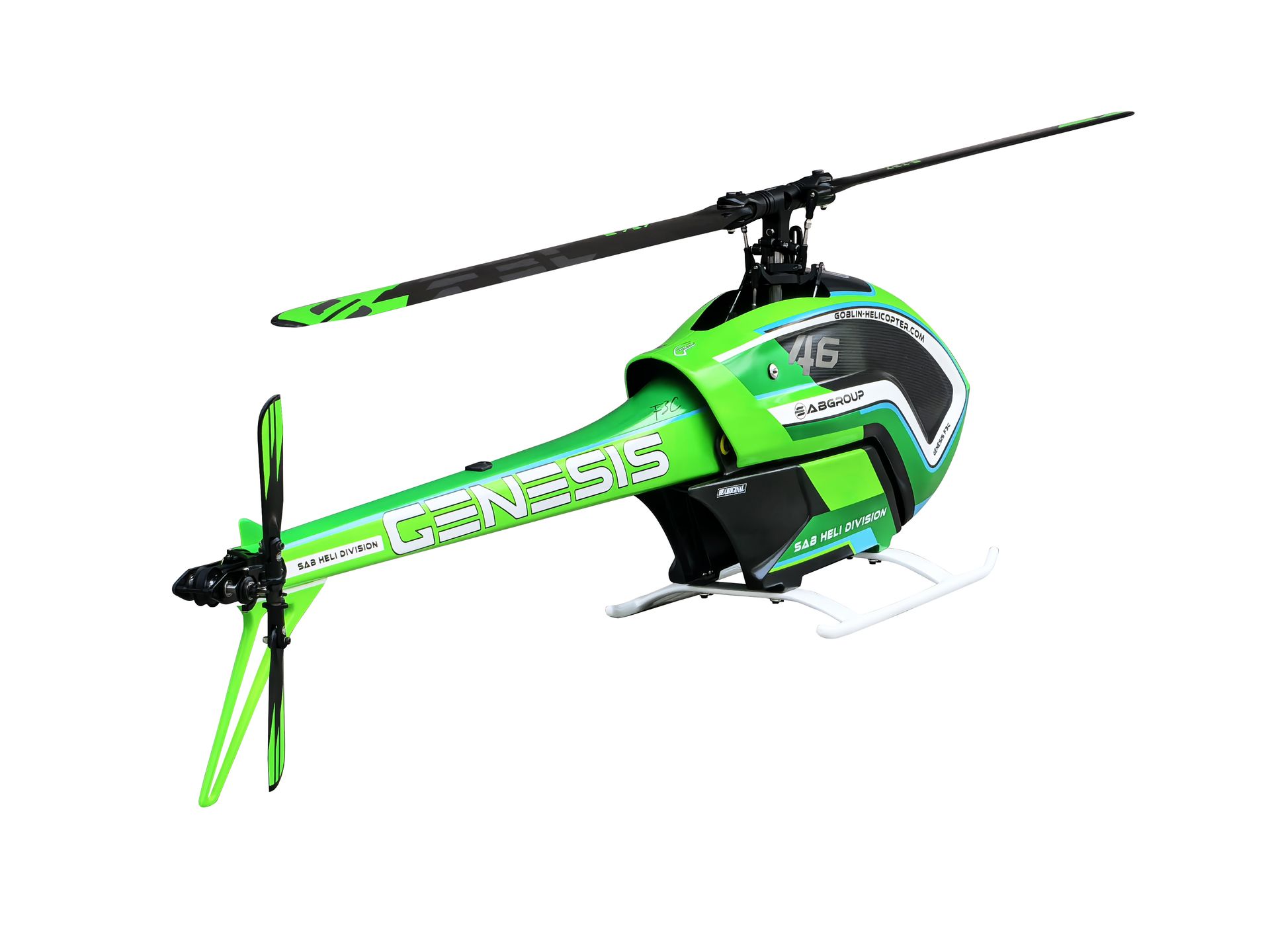

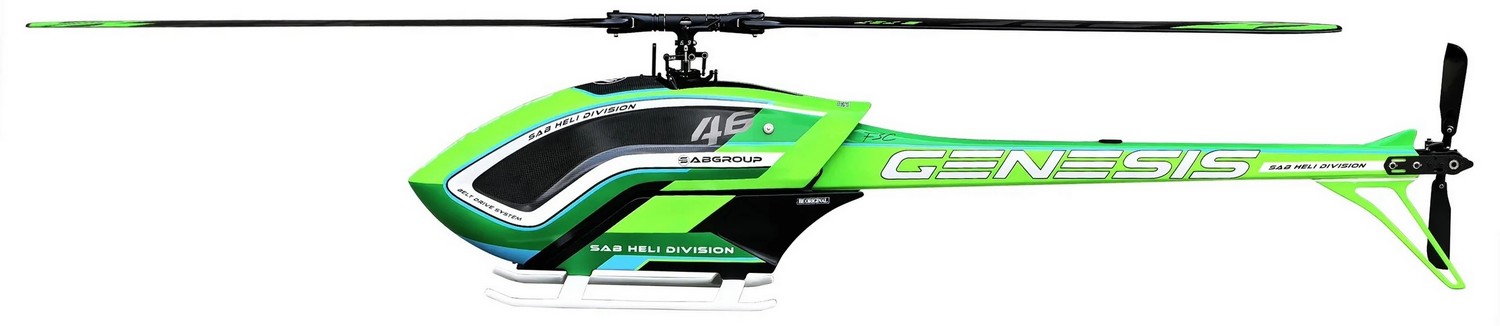

SAB GENESIS F3C

SAB Genesis F3C - Master class in competition

• We have invested a lot of development time in the SAB Genesis F3C, but we are sure that the wait was worth it.
• The Genesis F3C combines years of SAB know-how with the experience of the world's leading F3C pilots.
• The focus of this competition helicopter is on achieving extreme precision while maintaining mechanical simplicity.
• The result is an RC helicopter that raises flight stability to a whole new level.

SAB Genesis F3C Innovations:

• Ultra-quiet gearbox: Optimized for maximum efficiency and minimal noise.
• Integrated airframe system: A rigid airframe design that integrates seamlessly into the fuselage for superior structural integrity.
• Damped tail boom: Features a special damper support system to eliminate vertical vibrations.
• Graber Edition blades:
  Equipped with the latest F3C blades, developed in collaboration with world champion Ennio Graber.

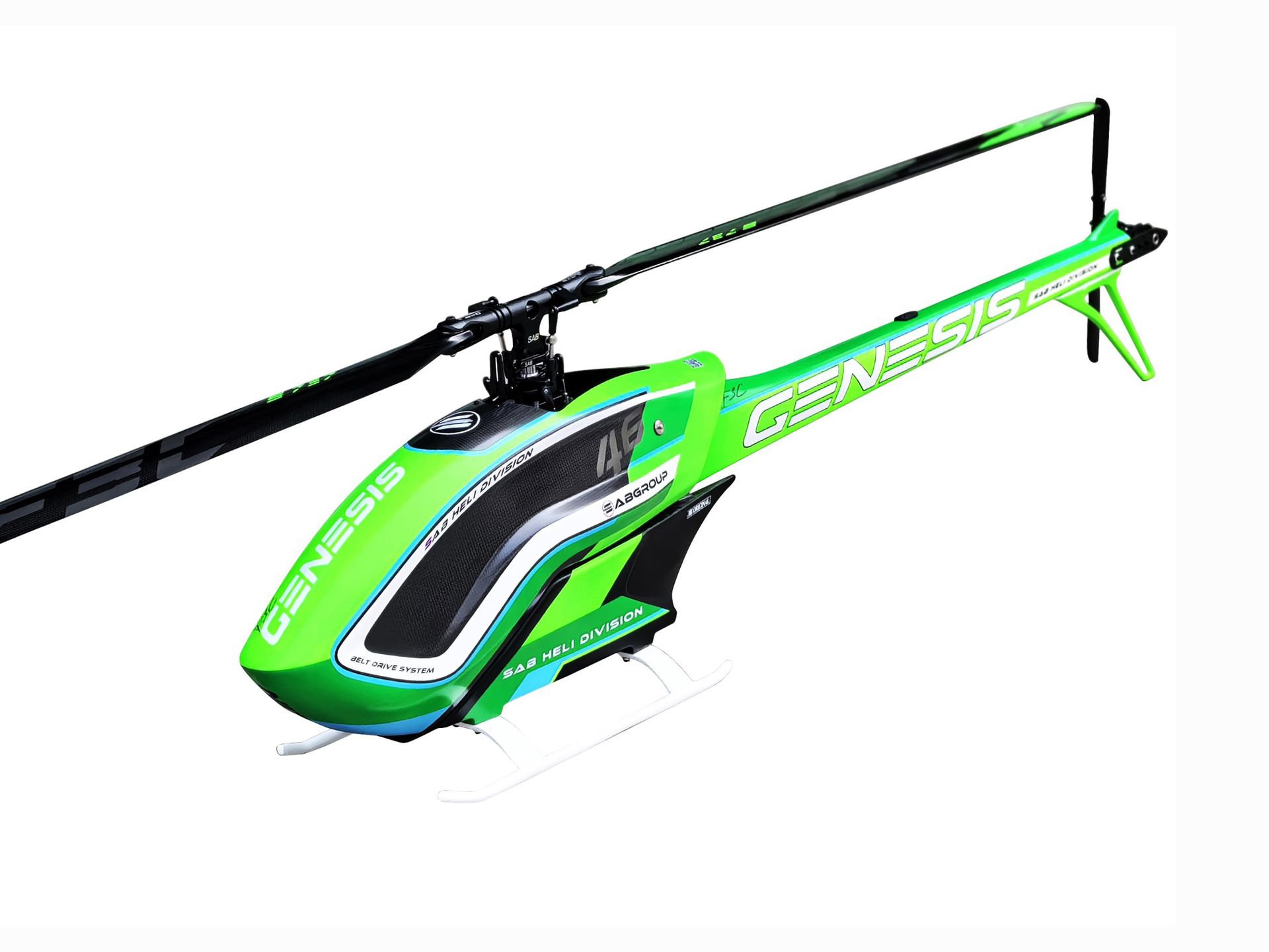

• The Genesis F3C makes its debut in its characteristic green competition scheme

HIGHLIGHTS:

• The Genesis F3C is a no-compromise model, developed specifically for F3C competition.
• Every detail is designed to deliver maximum precision, quiet operation, vibration control, and outstanding flight presence.

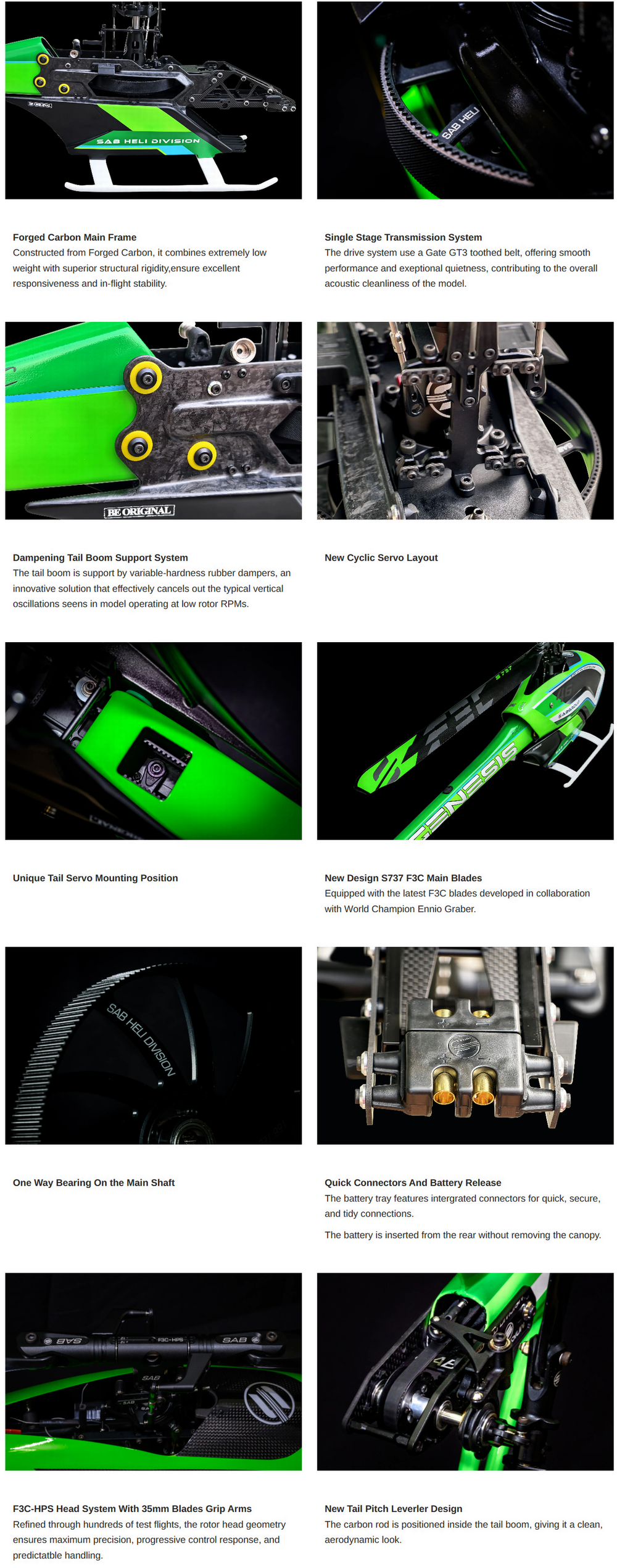

Main Frame

• Constructed from Forged Carbon, it combines extremely low weight with superior structural rigidity,
  ensuring excellent responsiveness and in-flight stability.

Transmission

• The drive system uses a Gates GT3 toothed belt, offering smooth performance and exceptional quietness,
  contributing to the overall acoustic cleanliness of the model.

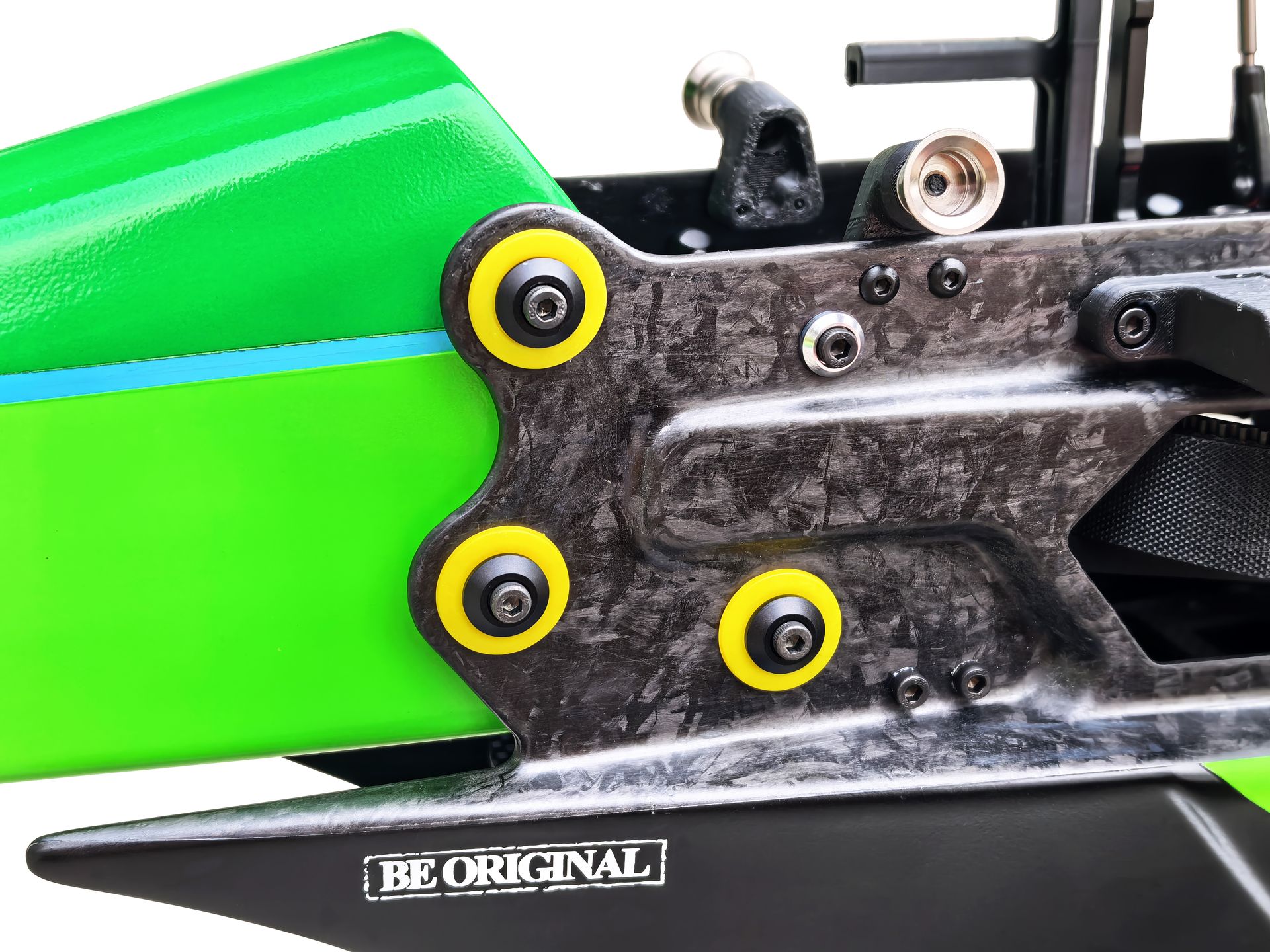

Tail Boom Support

• The tail boom is supported by variable-hardness rubber dampers,
  an innovative solution that effectively cancels out the typical vertical oscillations seen in models operating at low rotor RPMs.

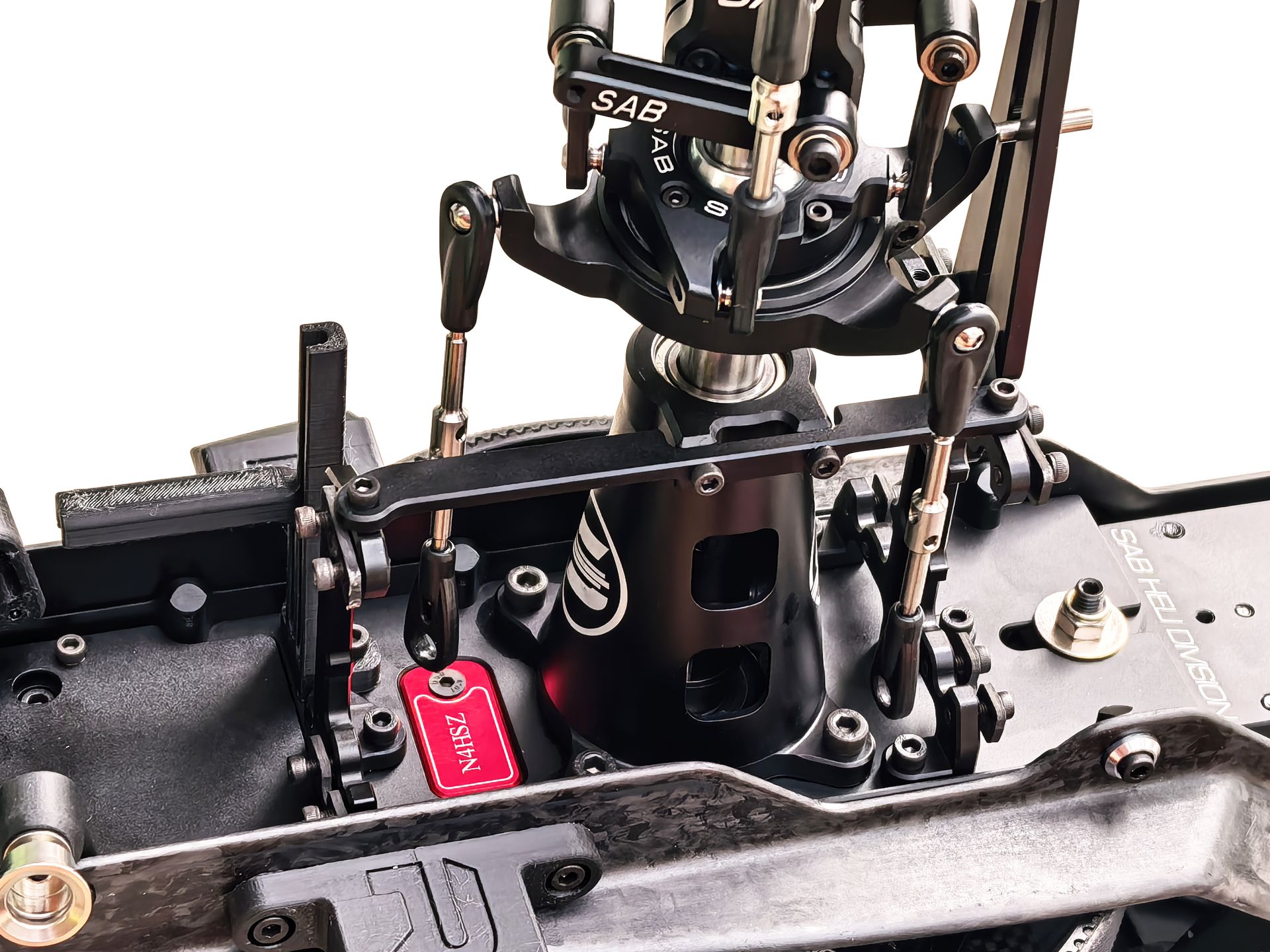

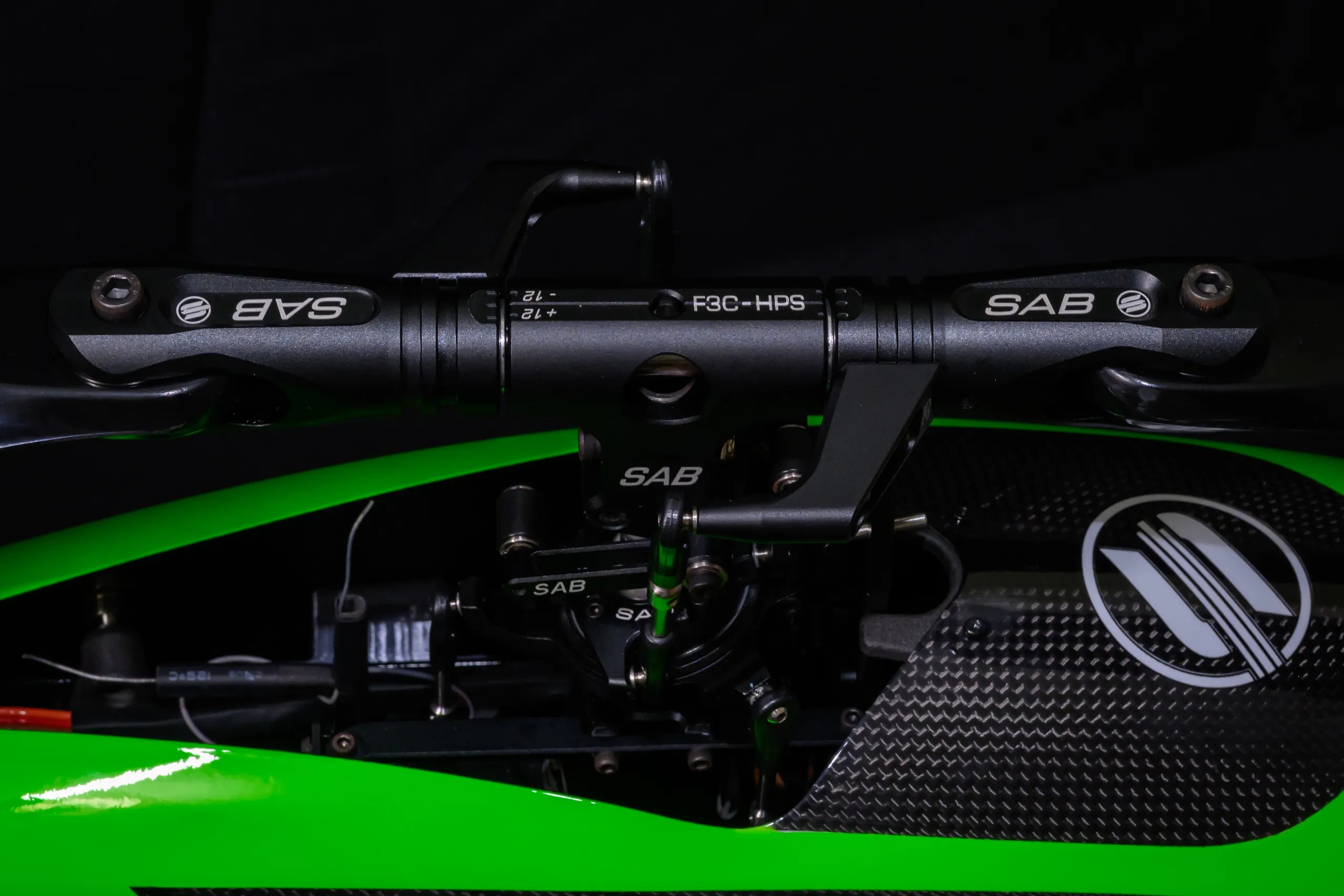

Rotor Head Geometry

• Refined through hundreds of test flights, the rotor head geometry ensures maximum precision,
  progressive control response, and predictable handling.

Design & Clean Layout

• The carbon rod is positioned inside the tail boom, giving it a clean, aerodynamic look.

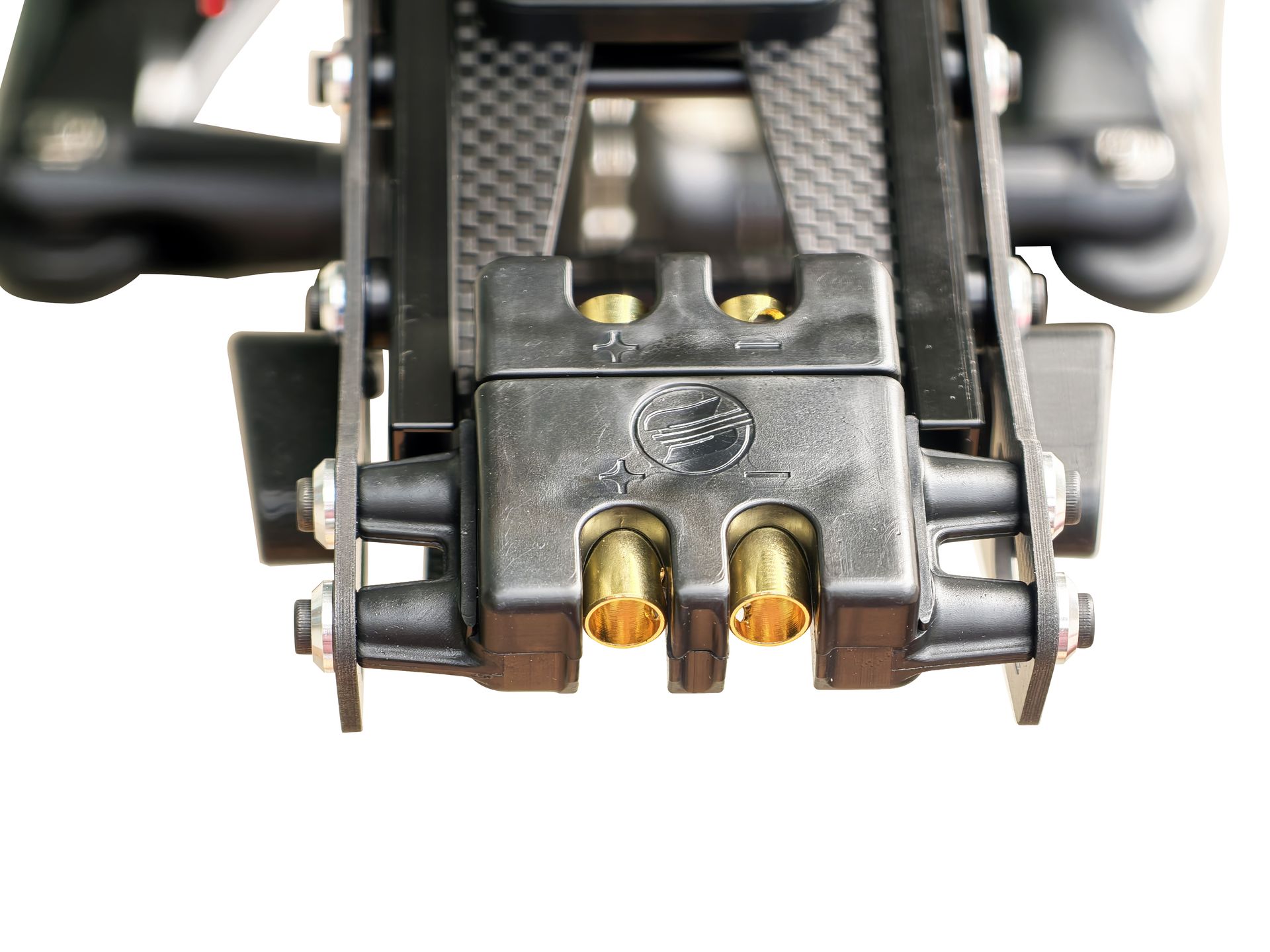

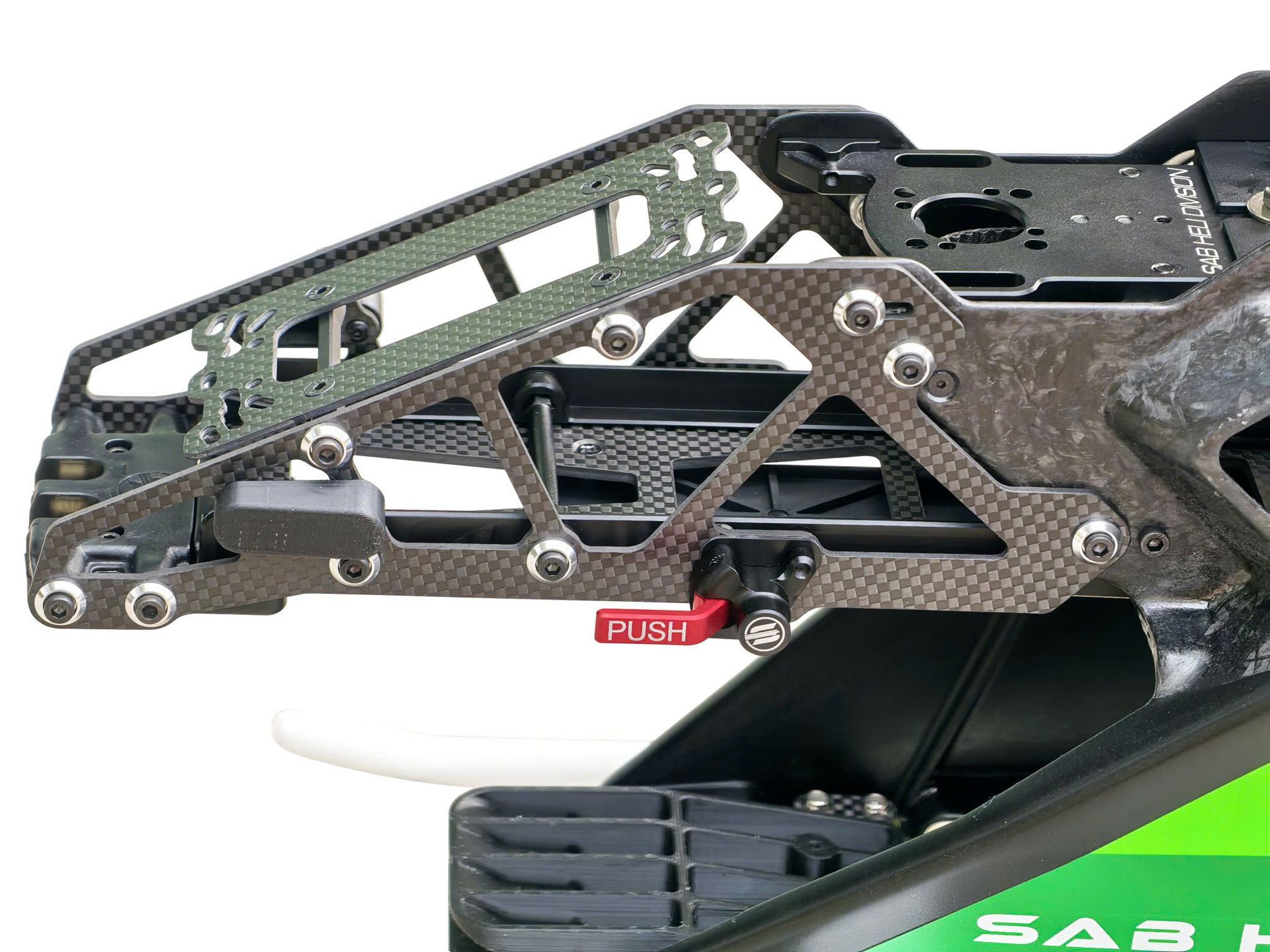

Battery Tray

• The battery tray features integrated connectors for quick, secure, and tidy connections.
• The battery is inserted from the rear without removing the canopy.

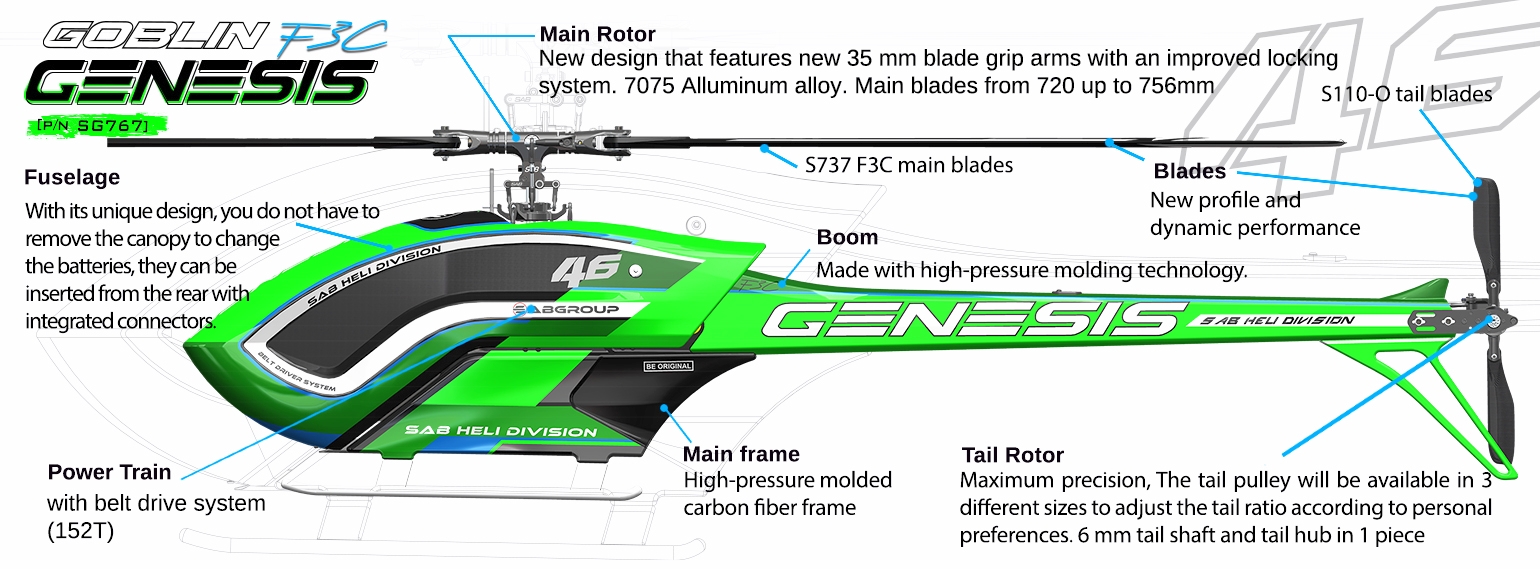

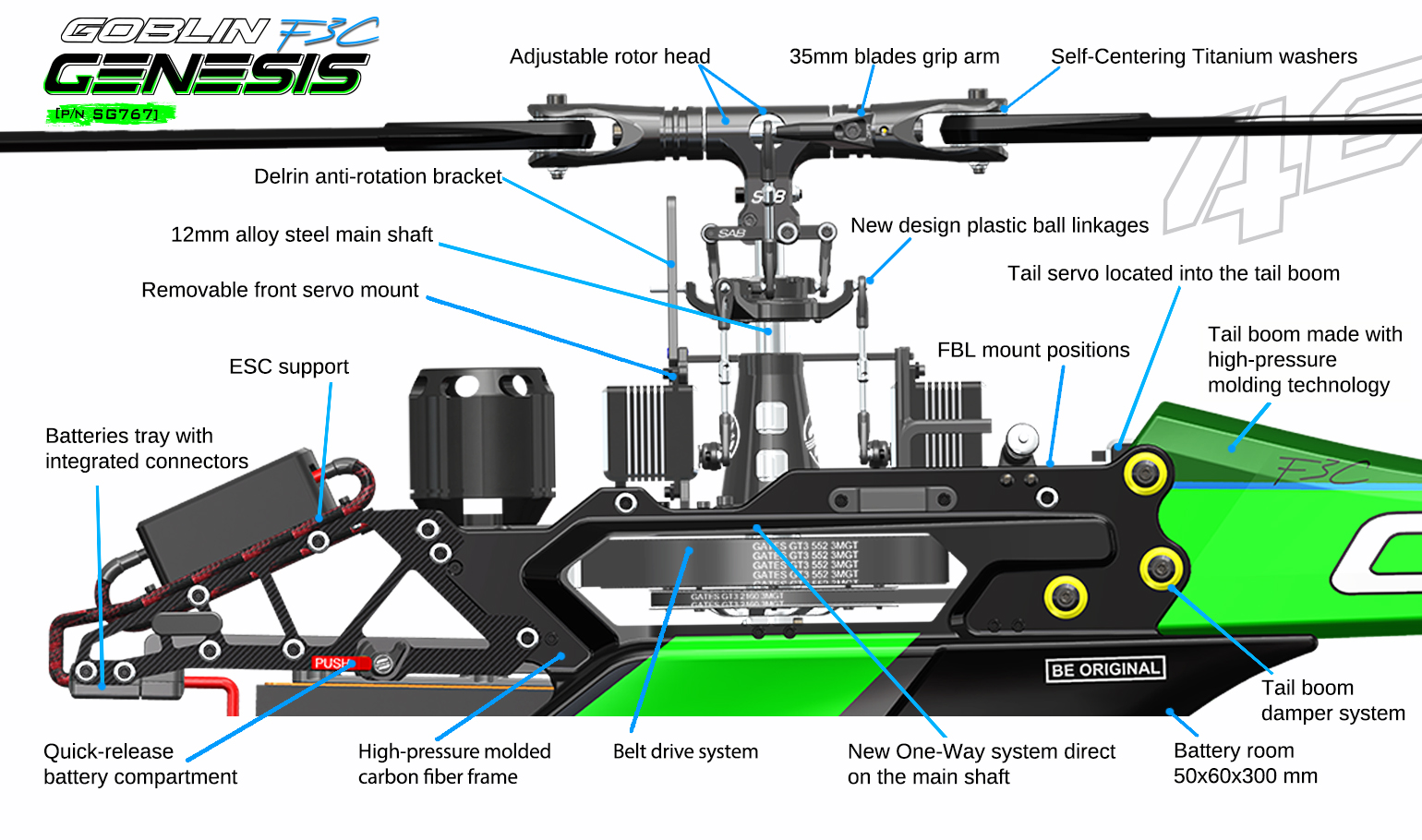

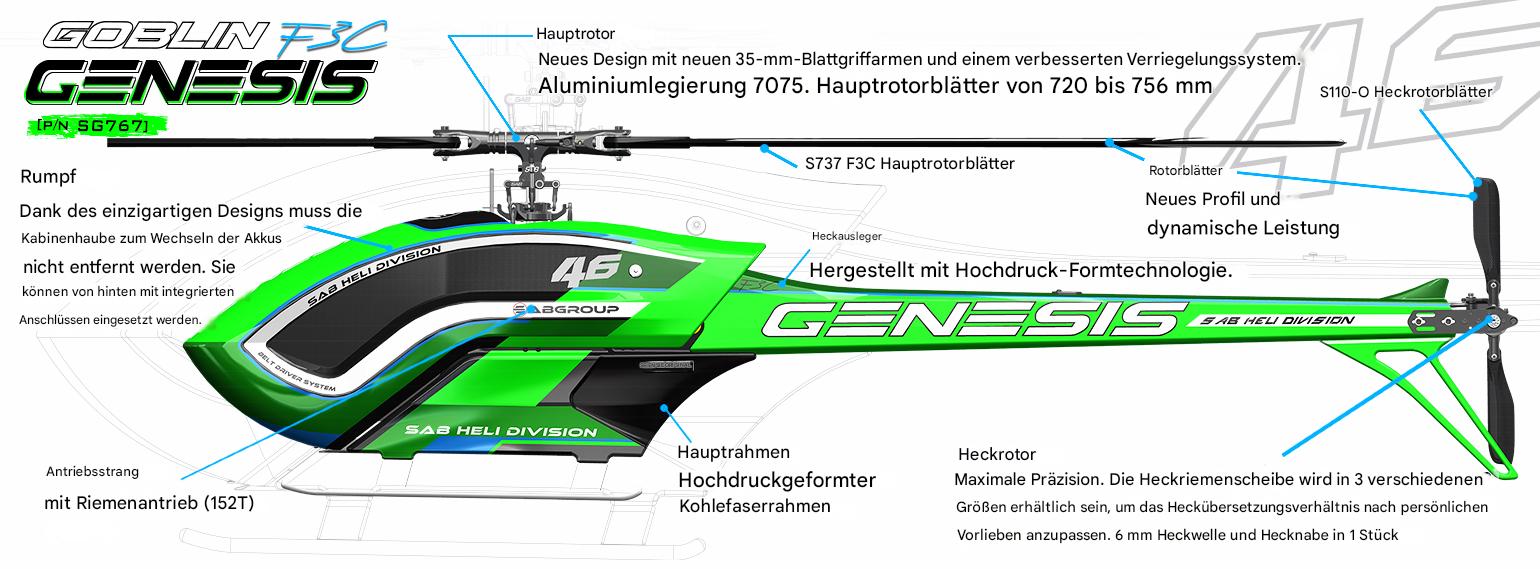

Technical Overview:

Main Rotor

• Main shaft: 12 mm – Tail shaft: 6 mm – Spindle: 10 mm – Bearings: 10x19x5 mm
• Pivot-mounted spindle allows fine-tuning of head stiffness and optimized control authority
• One-way bearing directly integrated on the main shaft axis

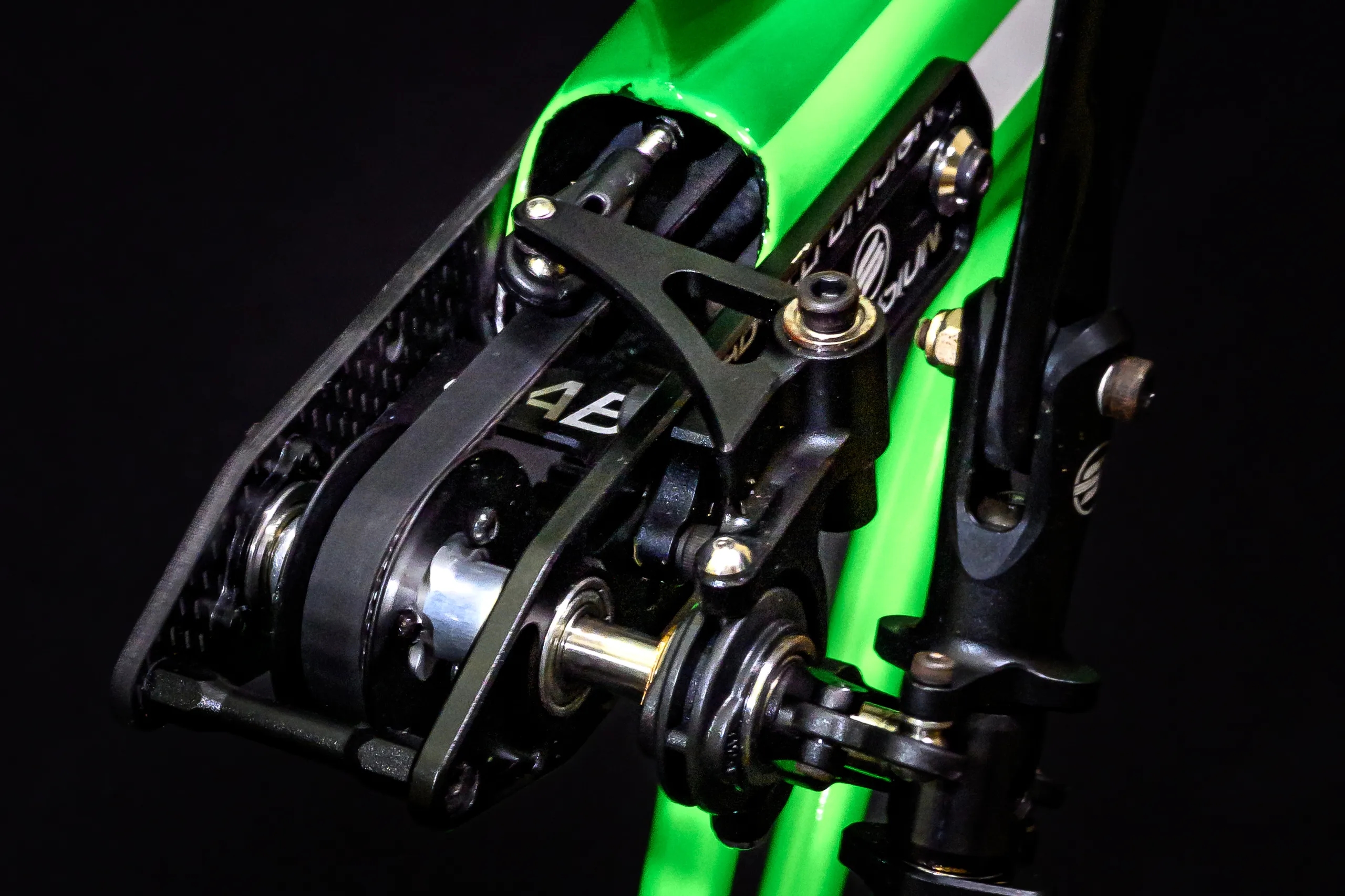

Tail Rotor

• Tail shaft and hub machined from a single solid piece for maximum precision and strength
• Tail pulley available in three different sizes to fine-tune the tail ratio according to pilot preference

Tail Boom

• Adjustable stiffness via interchangeable rubber dampers with variable shore hardness
• Internal carbon rod for added rigidity and clean aesthetics
• Built using high-pressure molding technology
• Total weight: only 220 grams
• Made of molded carbon for the perfect balance of strength and lightness

Canopy

• Unique rear-entry canopy design allows easy and quick battery installation from the back

Features / Special characteristics:

Specifications GENESIS F3C:

• Airframe weight: 3646g excluding battery,  (4525 motor, 150A ESC, servos, FBL)
• Main rotor diameter: 1650 mm (with 737 mm blades)
• Main blade length: 690–750 mm
• Tail rotor diameter: 292 mm (with 110 mm tail blades)
• Tail blade length: 105–115 mm
• Cyclic servos: Standard size (40 mm)
• Tail servo: Standard size (40 mm)
• Main rotor gear ratio: 6.1 to 8.4 : 1 (21T pulley included = 7.3 : 1)
• Tail rotor gear ratio: 4.1 to 5.1 : 1 (24T pulley included = 4.4 : 1)
• Power system: Supports 12S setups
• Motor KV range: 340 - 420 KV
• Battery compartment dimensions: 50 x 60 x 300 mm

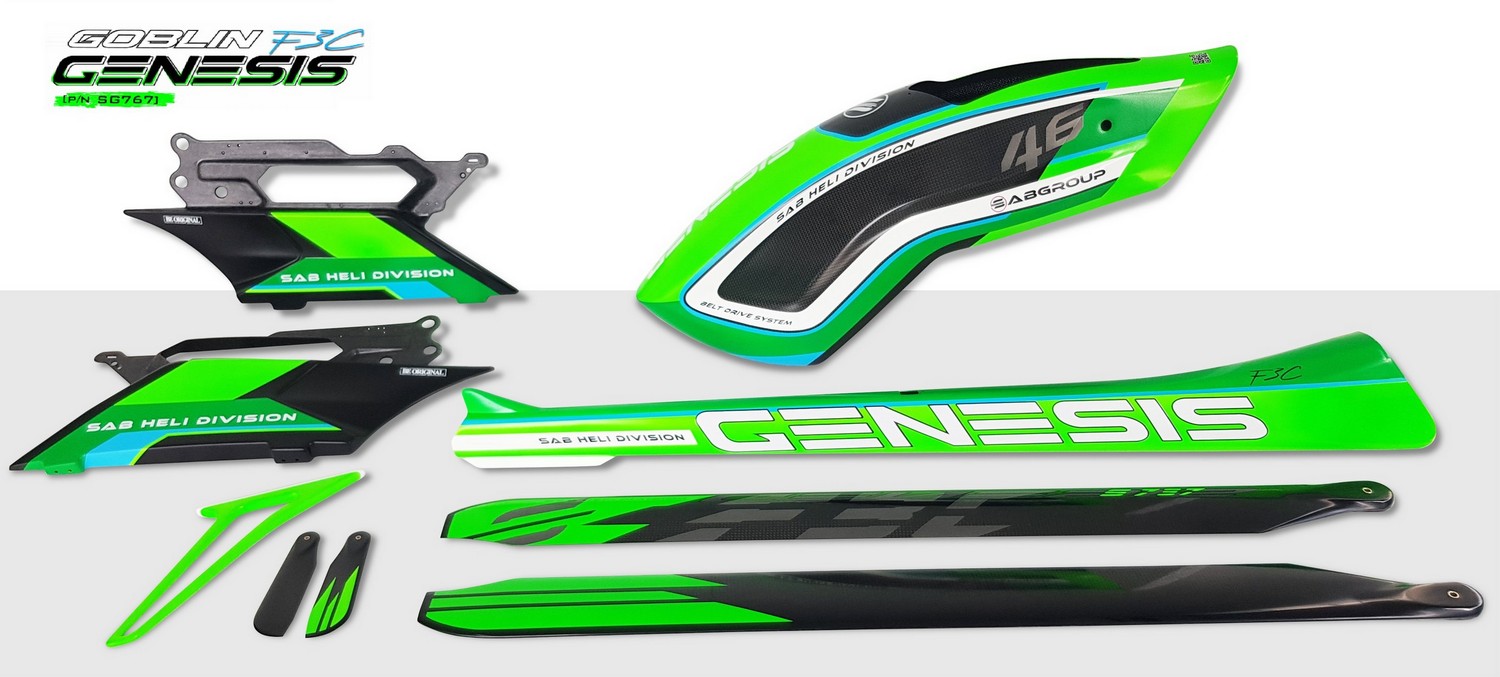

Kit Includes:

• SAB GENESIS F3C HELI KIT
• 21T motor pulley (other sizes available separately)
• 2 battery trays with integrated connectors
• S737X F3C main blades (240 g)
• S110 tail blades (110 mm)

RC Electronics recommendation:

Heli Servo Combos 3x Swashplate, 1x Tail:

• KST 12V HLS SERVO COMBO HELI (3x HLS3008-12 / 1x HLS1535-12)
• KST X20 HLS SERVO COMBO HELI (3x X20-2208 / 1x X20-1035)

Swashplate Servo Standard 40mm (3x):

• KST X20-2208 HLS (3x)
• KST BLS915 (3x)
• FUTABA HPS-H701 (3x) / HPS-HC701 (3x)
• MKS HBL960 (3x) / MKS HBL850 (3x)
• SAVOX SB-2295SG (3x)

Tail Servo Standard 40mm:

• KST X20-1035 HLS / KST BLS905X
• FUTABA HPS-HT700
• MKS HBL990 / HBL880
• SAVOX SB-2295SG

ESC 12S:

• SCORPION TRIBUNUS III 14-220A 4-14S HV BEC
• HobbyWing Platinum PRO 260A / 180A HV V5 Regler 6-14S
• YGE AUREUS 185 HV BEC 6-12S

Motor:

• SCORPION HK5-4525-365KV
• XNOVA Lightning 4525-380KV

Flybarless System:

• MSH Brain2
• Microbeast
• VANTAC

Battery 12S 4200-55000mAh (max. Size 50x60x300 mm)

• SLS XTRON 5000mAh 12S1P 50C/100C
• SLS QUANTUM 5000mAh 12S1P 65C/130C
• SLS QUANTUM 5000mAh 12S1P 40C/80C
• SLS XTRON 5000mAh 12S1P 40C/80C
