Art.No.:
Manufacturer:KONTRONIK

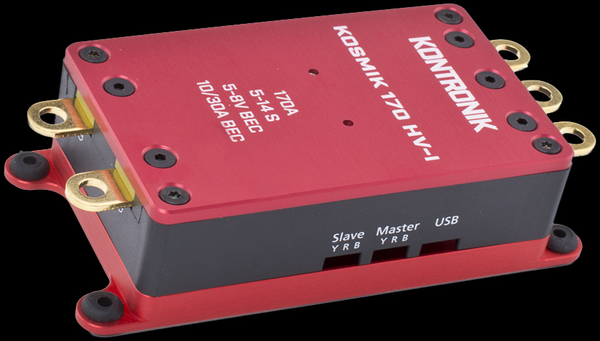

Kontronik KOSMIK 170 HV-I

High End ESC-14S 170A The new HV-I ESC´s; are Superhereos, with the integrated telemetry function, strong BEC 10/30A, Lightweight: superstrong, even without heat sink


Delivery time:

5-7 days

KONTRONIK KOSMIK 170 HV-I kontronik-logo-new-2017-small.png

Specifications:

  • with integrated telemetry
  • Telemetry protocole for
    Futaba, Jeti, Multiplex, Mikado, Graupner
  • 5-14 S LiPo
  • 20-59 V
  • 1770 A continuous current
  • BEC 10 A continuous current
  • BEC 30 A peak current
  • Lightweight: superstrong, even without heat sink
  • 200 g without cable
  • 337 g with cable

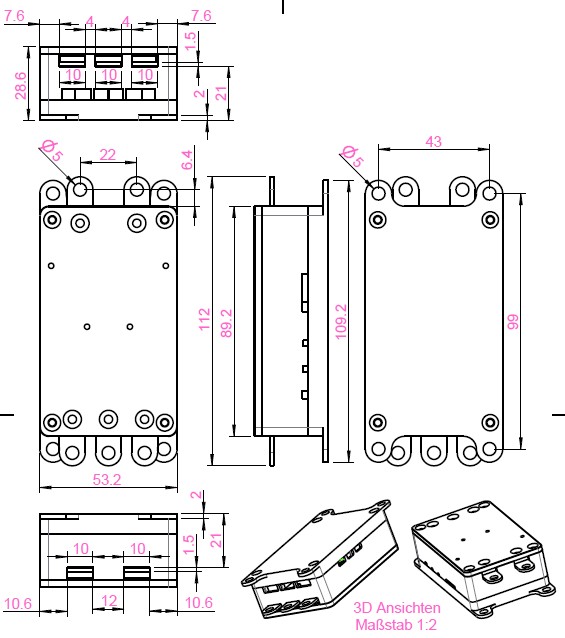

  • Size 109,2x53,2x38,6 mm

KOSMIK HV-I Serie

With the KOSMIK ESC, KONTRONIK has defined a new high-end level.

Optimally protected in a plastic case, covered by two aluminum plates, the KOSMIK conceals its interior: continuous current up to 250 A and a voltage range up to 14 S. Also included are anti-spark and high part-load capability even at high power. So the KOSMIK can cope with all the requirements you can have for an ESC of superlatives.

Superheroes are the KONTRONIK controllers, which are even more powerful with the integrated telemetry function! From now on you can recognize our controllers with telemetry by the abbreviation „HV-I“.

The KOSMIK‘s new cooling concept with two aluminum plates and optional heat sinks allows operation at extremely high continuous current.

BEC

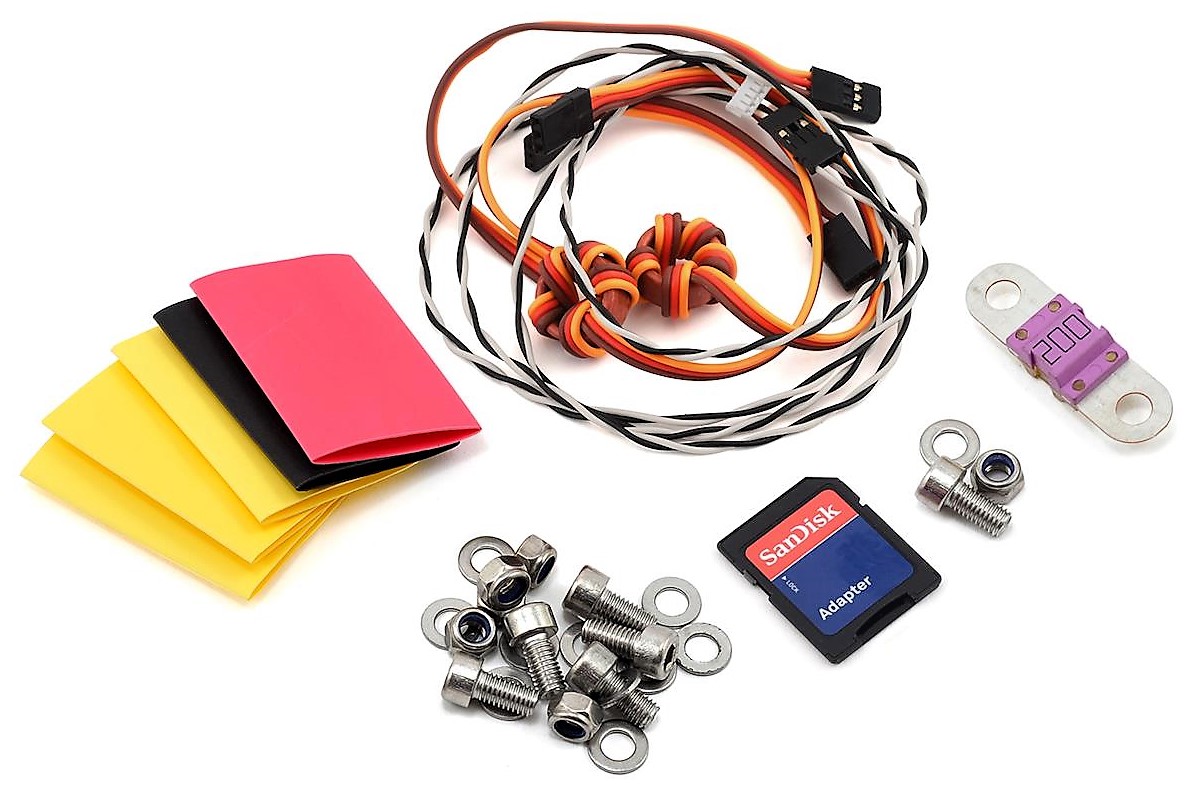

A critical feature of the KOSMIK is the strong BEC with a voltage from 5 V up to 8 V and a current capacity up to 10 A continuous and up to 30 A peak. The KOSMIK hast two BEC ports that have to be used when high BEC current is required. The two BEC cables are included in the package.

Screwed instead of soldered
No wires. This is maybe the first thing you notice looking at the new KOSMIK. To handle the enormous power, the KOSMIK is provided with gold tabs instead of the familiar soldered cables. Before usage, cables and tabs are connected via screws and cable shoes. This concept makes exchanging cables easy and forms a reliable high current connection.

Data interfaces
The KOSMIK, in addition to three connectors for sensors and telemetry, provides a fast micro USB port to give out and process operation data.

Logger
As the first KONTRONIK ESC, the KOSMIK offers the possibility of recording operating parameters internally. Internal recording delivers more detailed data than an external system could ever supply. With the high recording capacity and speed, KONTRONIK provides state-of-the-art technology.

All internally recorded data are written on a MicroSD card. This enables a flexible analysis of a high data volume. For viewing the logging data, we recommend the data explorer found under download on our website.

You can use either a TelMe or our bluetooth module, which allows the connection to your smartphone by using the K-VIEW / K-PROG-App.

Mode-Programming
The well-known and proven KONTRONIK Drives Mode-Programming is also implemented in the KOSMIK. Thus, the ESC is rapidly deployable and can be customized for different applications within the shortest possible time.

Of course, the KOSMIK is also updatable online. This allows software updates easily set at home. Long downtimes caused by sending and waiting are a thing of the past.
