Art.No.:
Manufacturer:YGE

YGE 65 LVT Brushless ESC - 65A - Telemetrie

New with Telemetrie! 2-6S Lipo, incl. HV BEC ....

Delivery time:

small quantity
 Stück
Add to cart

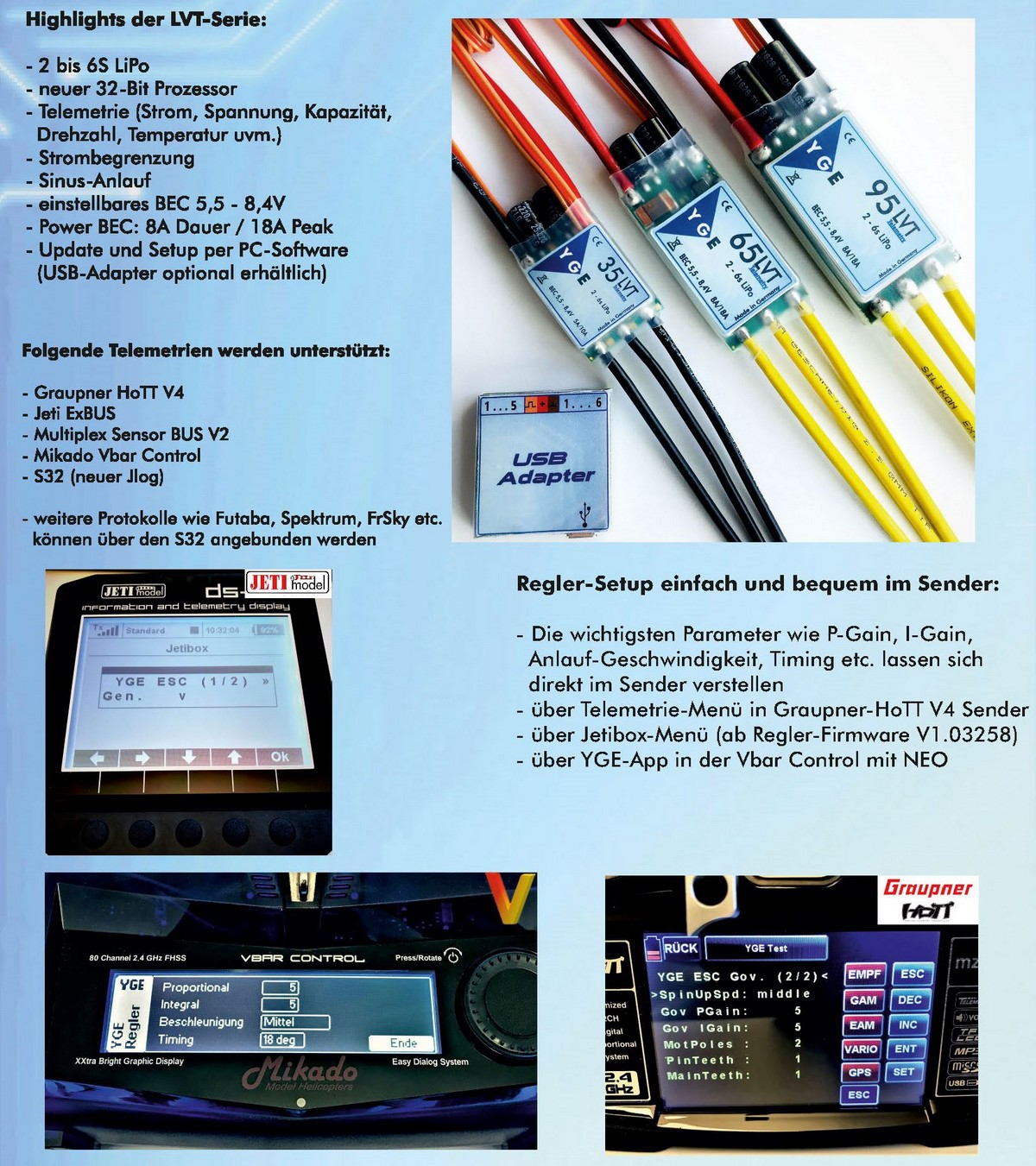

"T" for Telemetry. following protocols are currently compatible:

  • Mikado VBAR soon
  • Futaba, FR-Sky & Spectrum via S32 / JLOG from R2Prototyping
  • Graupner HoTT V4
  • Jeti ExBUS
  • Multiplex Sensor BUS V2
  • YGE-protocol for different telemetry-connections
  • more protocols follow soon

Highlights:

  • Update capable (optional USB-Adapter available)
  • entirely overhauled hard- und software (32-bit)
  • the PWM-frequency will be set automatically to the requirements of the motor
  • Current-limitation
  • 2 to 6S LiPo
  • super smooth sinus-startup
  • adjustable HV-BEC from 5,5 to 9V
  • high BEC-current rating: 8A permanent / 18A peak
  • dimensions in mm: 64 x 26 x 9
  • weight with / without cables: 30g / 45g
  • basic settings via mode-setup
  • BEC- and Telemetry-settings, as well as additional parameters adjustable via PC-Software -
    (optional USB-adapter available)

Specs:
- The specified current is the maximum continuous full power current
- 2 to 6s LiPo, incl under voltage protection by power reduction
- BEC: 5,5-8,4V - 8A Current / 18A Peak
- Current limiting
- Disconnectable under voltage detection
- Electronic speed control (Governor- mode)
- Soft start
- Active free-wheel, allowing unlimited part load operation.
- Automatic or 6 step adjustable timing
- Adjustable EMK brake
- F3A(Acro brake (brake force control infinitely adjustable)
- Frequency: 16 to 32 kHz
- Speed limit: 240.000 rpm (2- Poles)
- Temperature and overload warning
- Anti- flash: decreases the closing spark (65LVT)
- Basic -Programming with mode programming
- Fine adjustment and selection of telemetry log with the PC Setup
- Suitable USB-adapter optionally available
