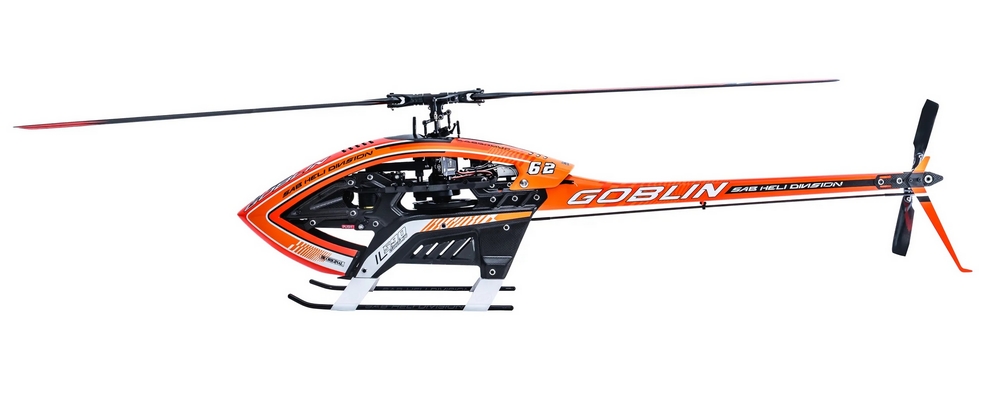

SG590 SAB ilGOBLIN 590 ORANGE

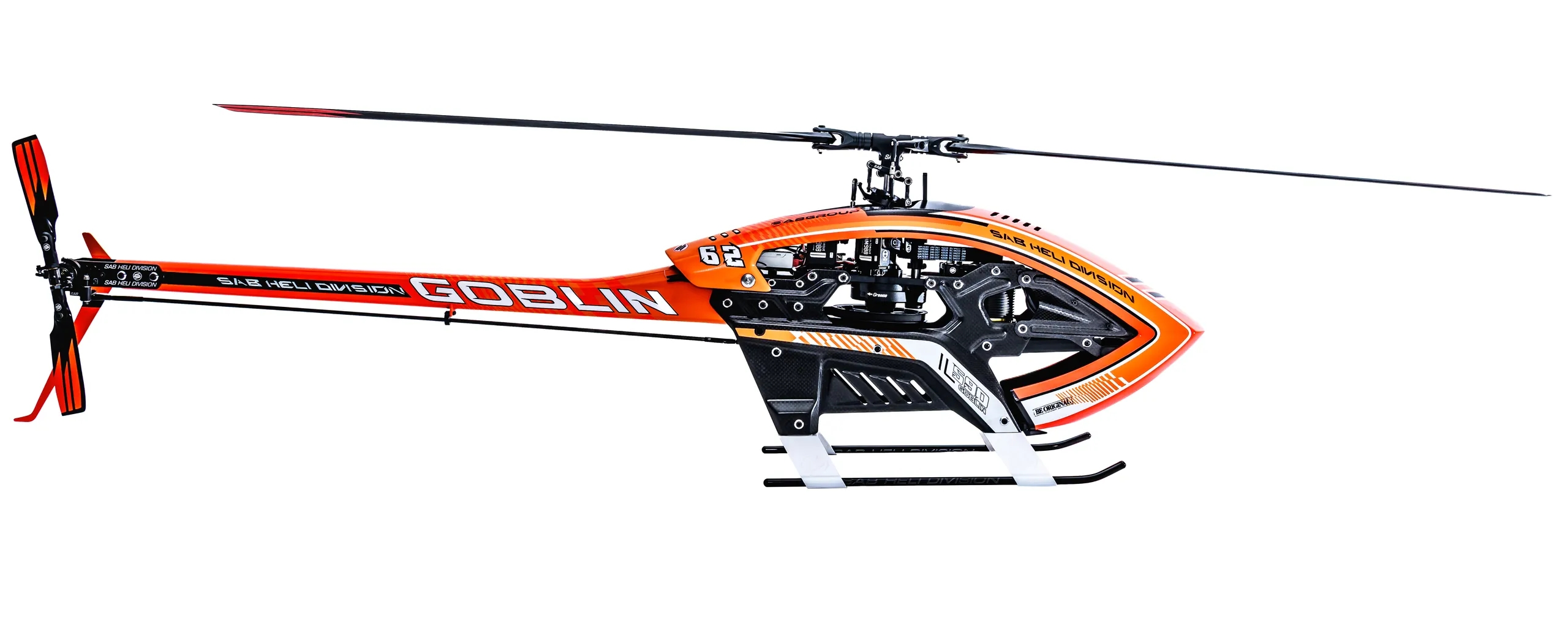

The New ILGOBLIN 590,
The Goblin 590 was developed for precision and is built to last.
With its ultra-rigid carbon chassis and oversized, “eternal” gearbox, it sets new standards in RC helicopter performance.
Experience a level of aerobatic precision and flight feel that has never been achieved before.

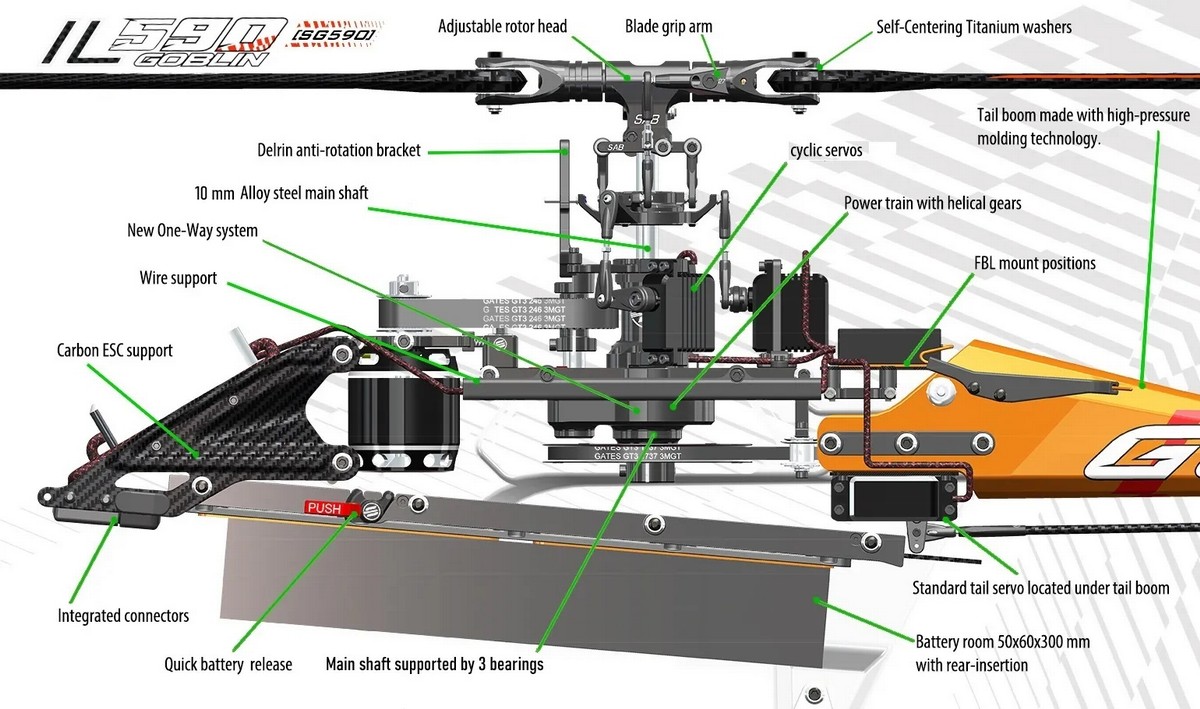

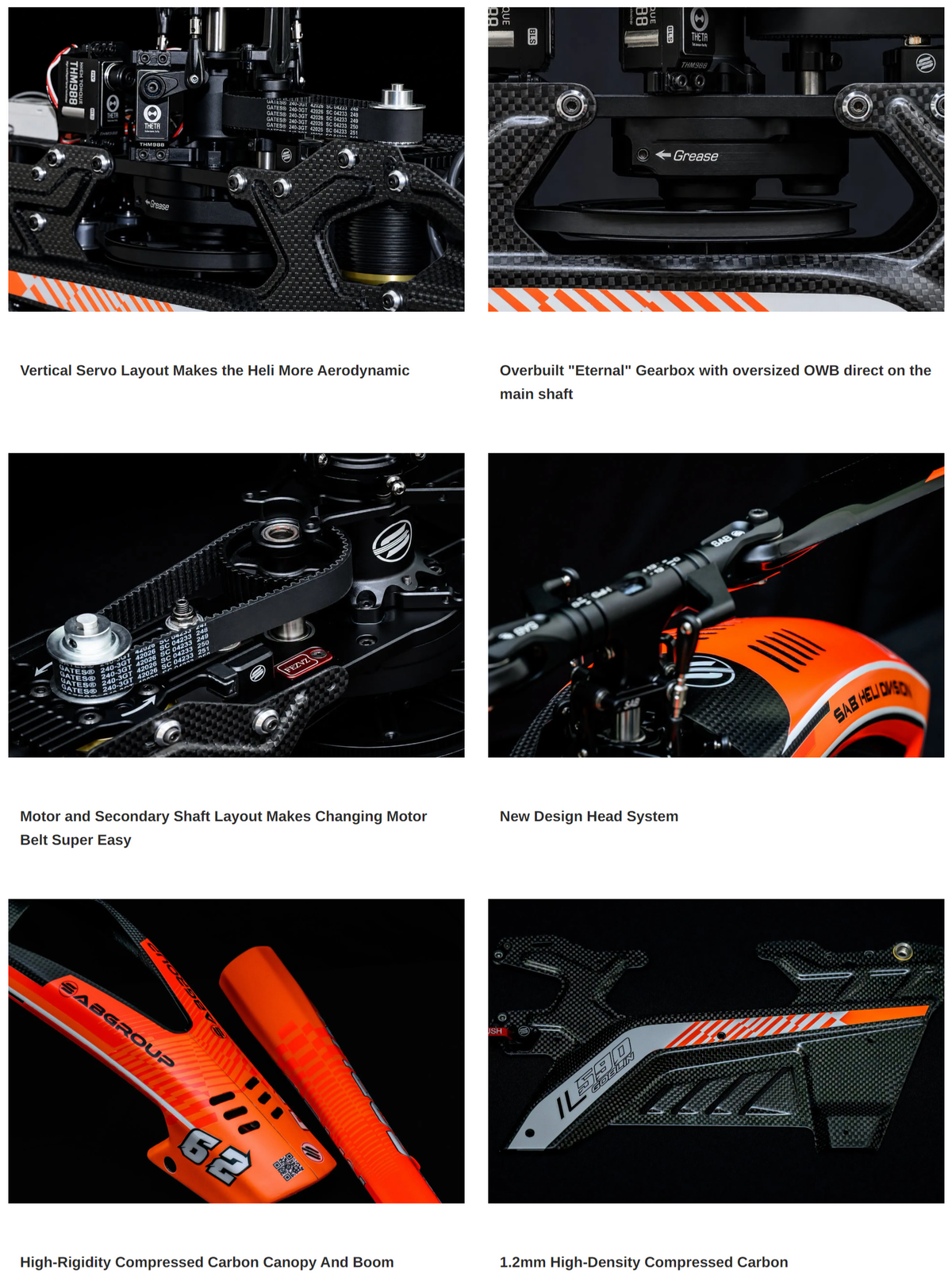

Features:

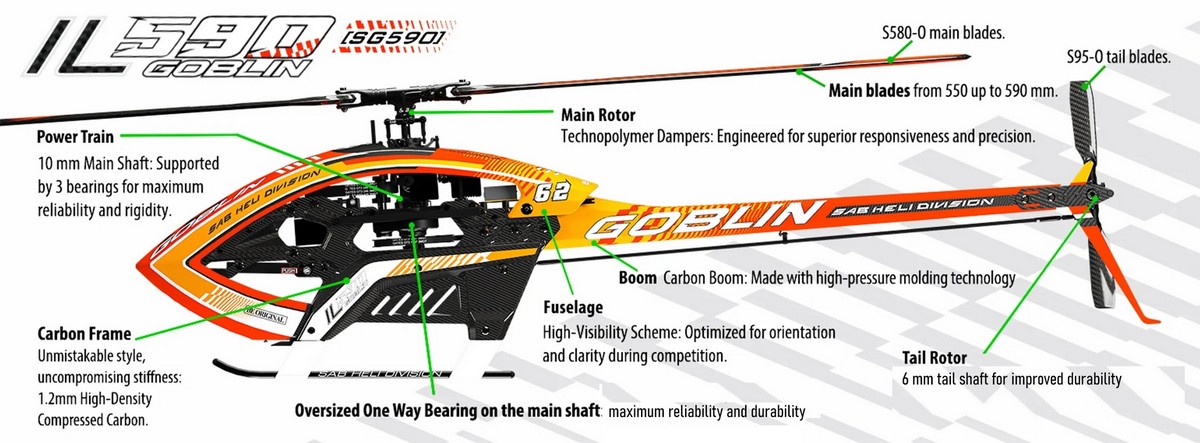

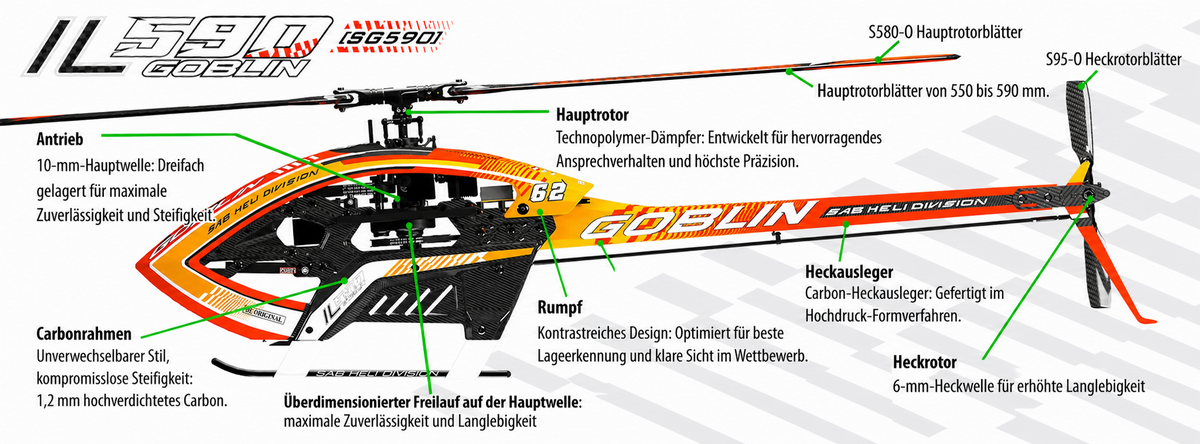

Technical Specifications ilGOBLIN 590
- Airframe weight: 1794 g (including main and tail rotor blades; excluding motor and electronics)
- Tail boom: High-stiffness, densified carbon

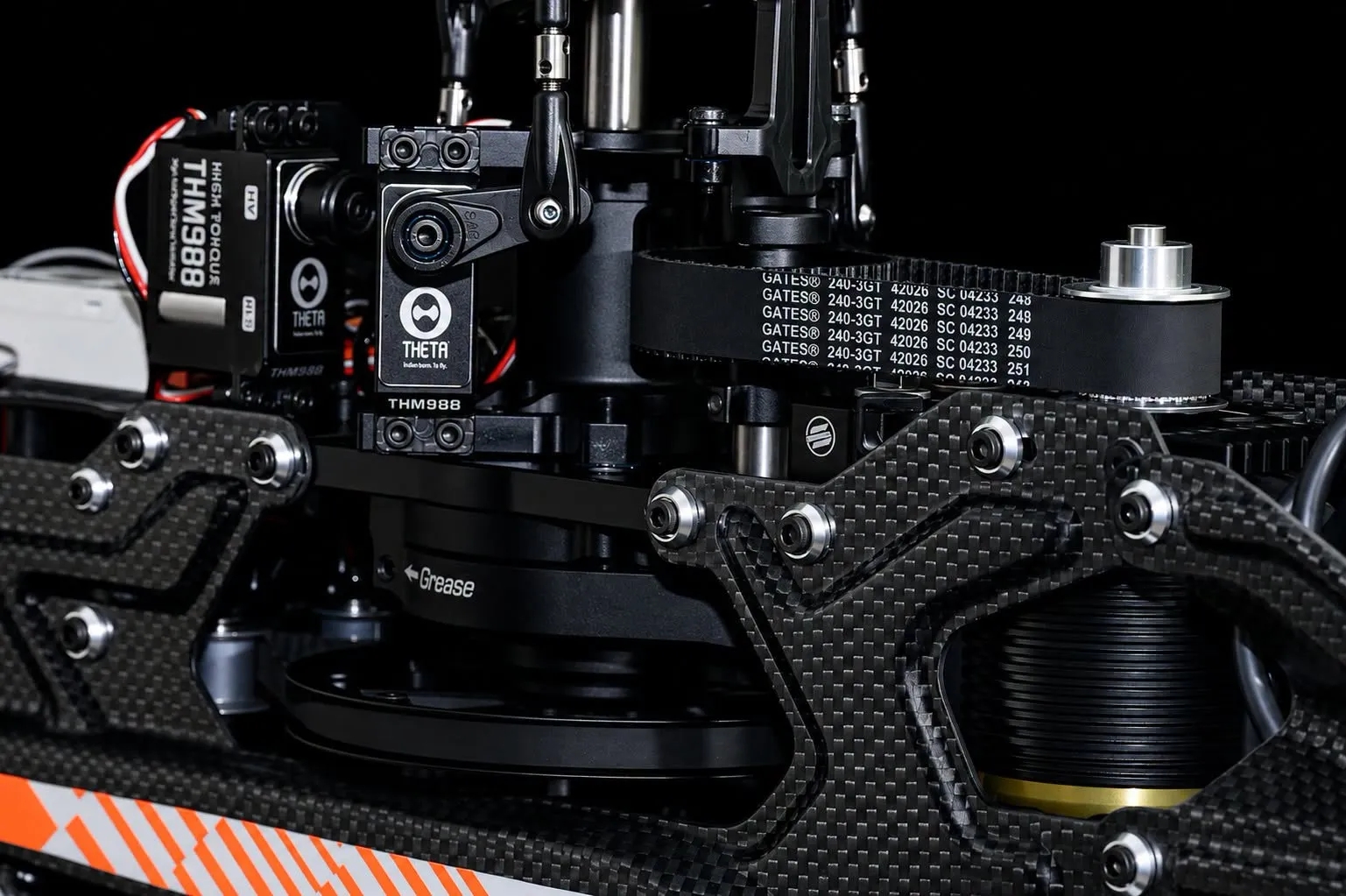

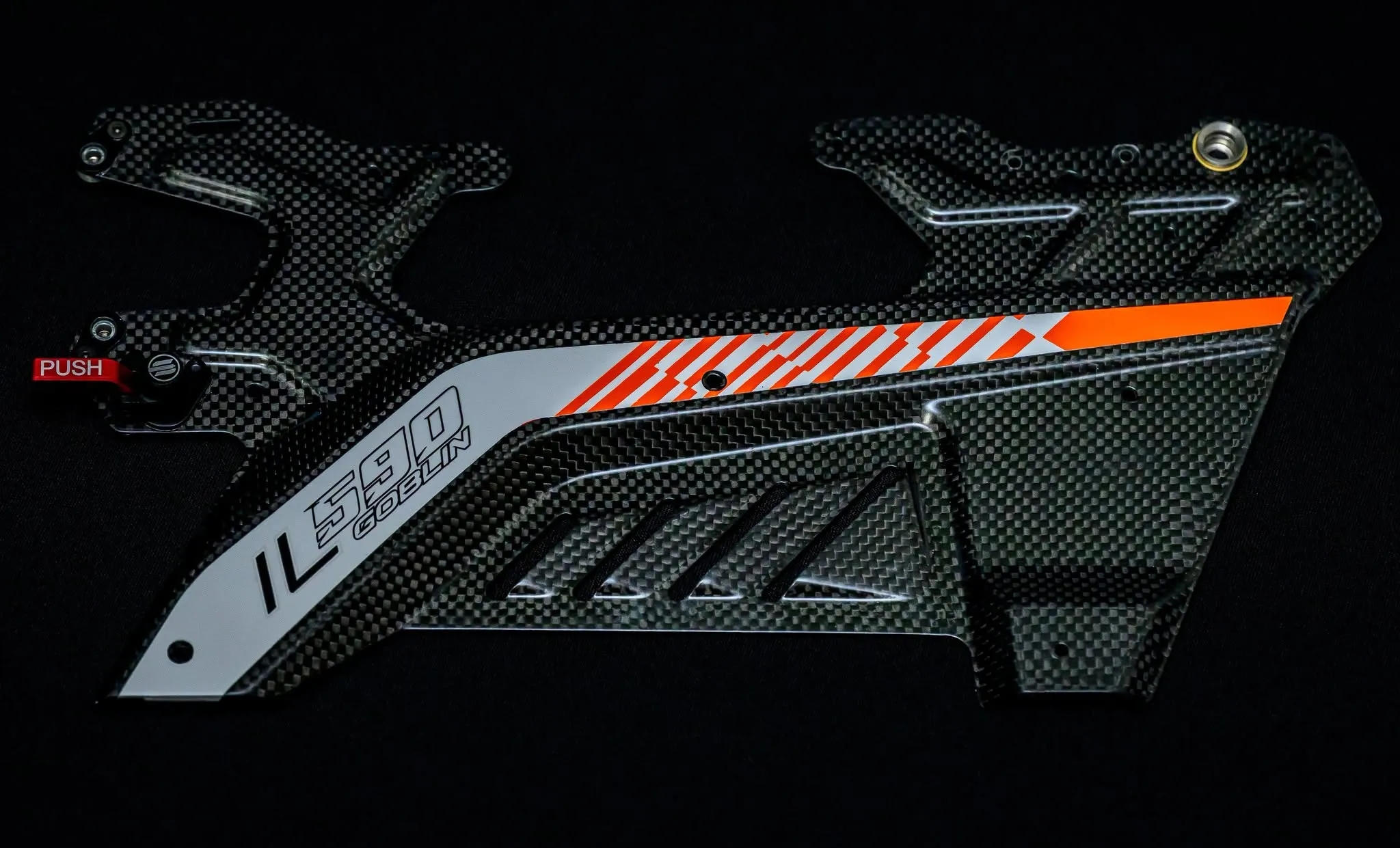

- Frame: 1.2 mm high-density, densified carbon

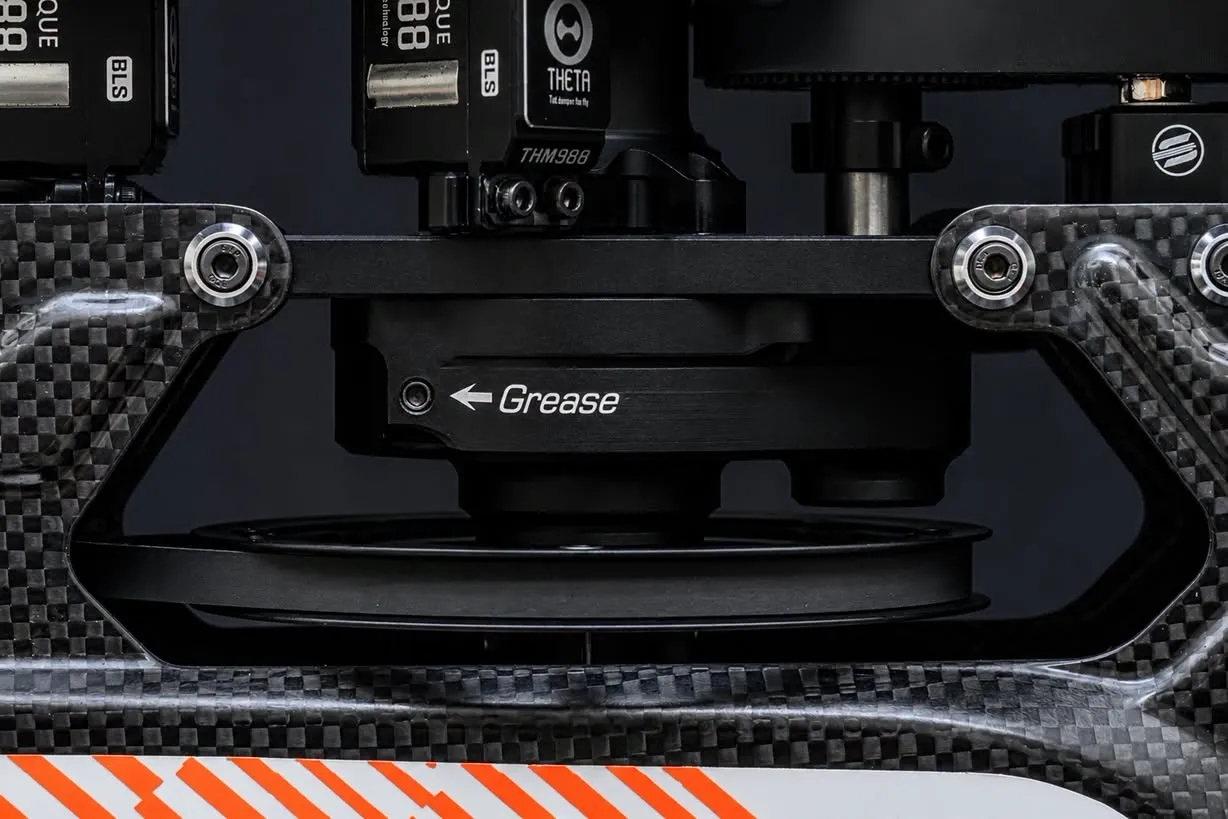

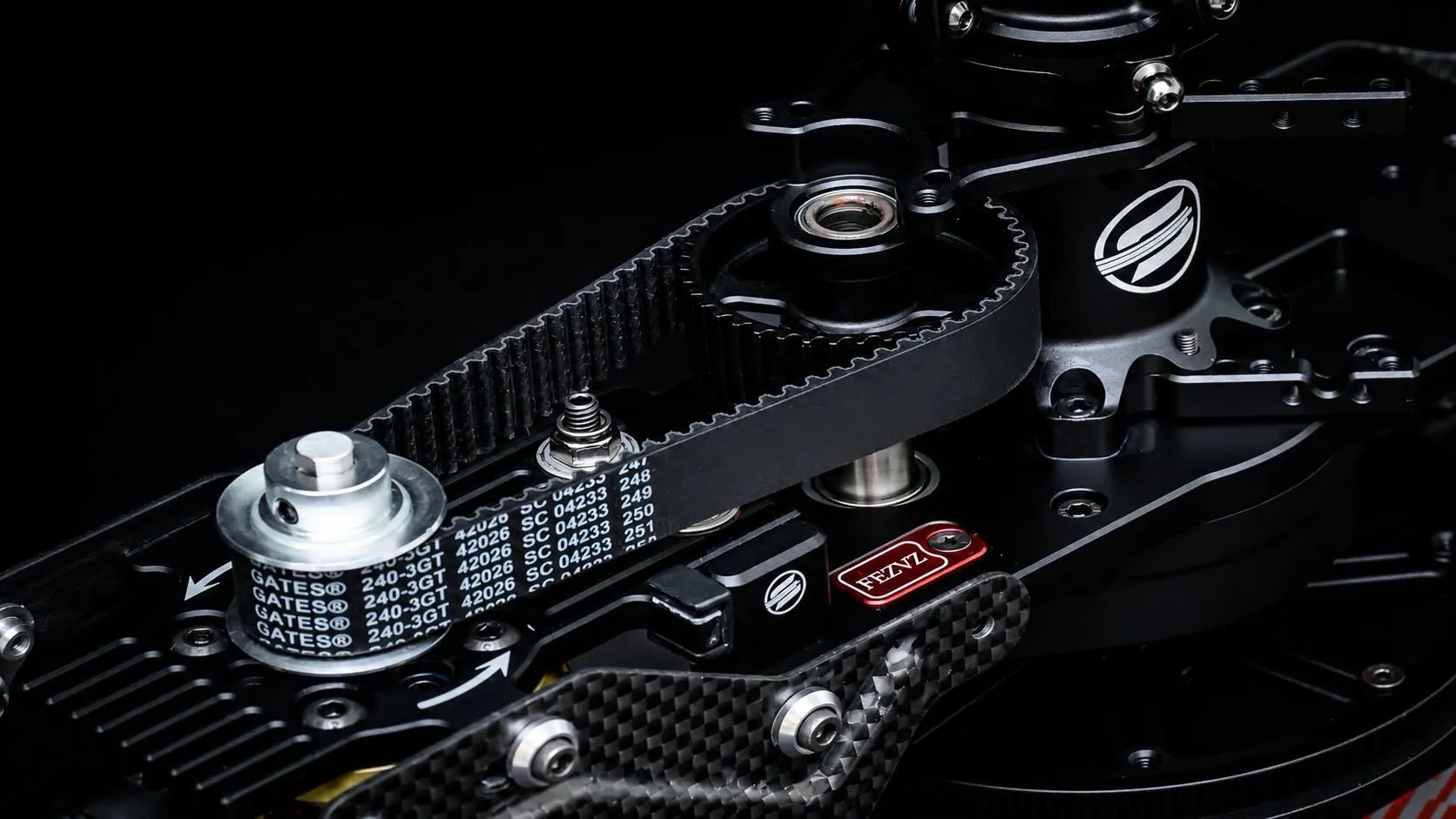

- Gearbox: Oversized “Eternal” gearbox with an oversized OWB mounted directly on the main shaft
- Shafts: Main rotor shaft 10 mm | Tail rotor shaft 6 mm
- Battery: Battery rail that slides in from the rear
- Main rotor diameter: 1,242 mm (with 580-mm blades)
- Main rotor blade length: 550 – 590 mm
- Swashplate servos: Mini size 35 mm / Standard 40 mm with H2537-S upgrade
- Tail servo: Standard 40 mm, ideal with H2539-S
- Max. battery size: 50 x 60 x 300 mm
6S LiPo battery 5000–6000 mAh
12S LiPo battery 3000–4000 mAh - Motor:
6S configuration: Motor 4026-1115 KV / 4025-1100 KV
12S configuration: Motor 4026-545 KV / 4025-560 KV
Includes:
- ilGOBLIN 590 Orange Heli Kit
- T Motor Pulley
- SAB S5800 MainBlades 580 mm
- SAB S Tail Blades mm
- Manual
UPGRADES / TUNING:
- H2514-S SAB TAIL PULLEY - ILGoblin 590 (increase Tail Rotor RPM)
- H2527-S: SAB Battery Tray w. Battery Connector - ILGoblin 590
- H2537-S SAB Front Standard Servo Mount - ILGoblin 590
- H2539-S SAB Rear Standard Servo Mount - ILGoblin 590
- H2553-S SAB Swashplate Leveler - ILGoblin 590
- H0015-21-S SAB Motor Pulley 21T
- H0015-22-S SAB Motor Pulley 22T
- H0015-23-S SAB Motor Pulley 23T
- HM059 - SAB Goblin 500-600 Carry Bag / Heli Bag
RC Component Recommendations:
Heli Servo Combos 3x Swashplate Servo, 1x Tail Servo (Standard Size 40mm):
- The following upgrades are required:
H2537-S Front Standard Servo Mount & H2539-S Rear Standard Servo Mount - KST X20 HLS SERVO COMBO HELI (3x X20-2208 / 1x X20-1035)
- KST 12V HLS SERVO COMBO HELI (3x HLS3008-12 / 1x HLS1535-12)
- KST 12V HELI SERVO COMBO 3x SV915-12 / 1x SV905-12
- MKS HBL650SL / HBL680SL LOW PROFILE HELI SERVO COMBO
Swashplate Servo Mini 35mm (3x):
- KST X15-1809 V8.0 BLS Servo 24,5kg / 0,07s
- KST X15-1208 HV Servo 13,5kg / 0,07s
Swashplate Servo Standard 40mm (3x):
- This requires the H2537-S front standard servo mount
- KST X20-2208 HLS (3x)
- KST BLS915 (3x)
- MKS HBL960 (3x) / MKS HBL850 (3x)
- SAVOX SB-2295SG (3x)
Tail Servo Standard 40mm:
- KST X20-1035 HLS
- KST BLS905X Tailservo
- MKS HBL 990 / MKS HBL 880
- SAVOX SB-2295SG
ESC 12S:
- HobbyWing Platinum PRO 180A HV V5 ESC 6-14S
- SCORPION TRIBUNUS III 14-180A 4-16S HV BEC
- YGE AUREUS 135 HV-BEC 6-12S
Motor 12S:
- SCORPION HK5-4026-545KV - Sport & 3D
- XNOVA Lightning 4025-560KV - Sport & 3D
ESC 6S:
- HobbyWing Platinum PRO 150A 3-8S HV BEC
- SCORPION TRIBUNUS III 08-160A 3-8S HV BEC
- YGE SAPHIR 155 V2 HV BEC 4-8S
- YGE SAPHIR 125 HV BEC 4-8S
Motor 6S:
- SCORPION HK5-4026-1115 KV - 3D Power
- XNOVA Lightning 4025-1120KV - Sport & 3D
Flybarless System:
- Axon, Demon 3X
- Microbeast
- VANTAC
Battery Lipo 12S 3000 - 4500 mAh (max. Size 50 x 60 x 300 mm)
- SLS XTRON 3600mAh 12S1P 30C/60C
- SLS QUANTUM 4000mAh 12S1P 40C/80C
- SLS XTRON 4000mAh 12S1P 40C/80C
- SLS XTRON 4500mAh 12S1P 30C/60C
Battery Lipo 6S 4500-55000mAh (max. Size ca. 50x60x300 mm)
- SLS SPEED Limited Edition 5100mAh 6S1P 70/140C
- SLS QUANTUM 4500mAh 6S1P 65C/130C
- SLS QUANTUM 5000mAh 6S1P 65C/130C
- SLS QUANTUM 5000mAh 6S1P 40C/80C
- SLS XTRON 5300mAh 6S1P 30C/60C
- SLS XTRON 5000mAh 6S1P 40C/80C
- SLS XTRON 5000mAh 6S1P 50C/100C
