Art.No.:
Manufacturer:Scorpion

SCORPION A-4220 V2 PNP Combo (6s/70E+/2553W)

NEW VERSION - A-4220-540KV V2 Motor & Tribunus III 06-110A ESC SBEC 2553W 7,0kg Thrust 1,5-1,65m Wing Span, for 6s 3300 - 5000mah ...

- HIGH END -
You save:
in stock
Delivery time:

in stock

Recommended articles / accessories


Scorpion A-4220-540KV V2 PNP ESC COMBO (6S /70E+ /2553W)scorpion-power-systems.png



Included:

  • SCORPION TRIBUNUS III 06-110A ESC w. SBEC
  • SCORPION A-4220-540KV V2 Motor

In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 70E+ / 15cc sized airplanes commonly used in 60"-64" Acrobatic Airplanes. The A-4220 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, preprogrammed, Tribunus III ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.

  • Recommended Prop : 15x10E / 16x7E / 16x8E

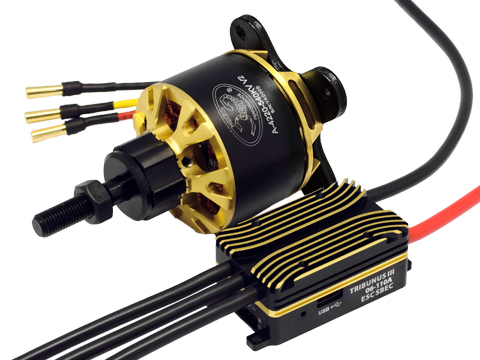

  • Recommended Battery : 6s 3300 - 5000mahscorpion-a-4220-v2-pnp-combo-6s.jpg
  • Included:

    • 1 x Scorpion A-4220 540kv V2 Motor
    • 1 x Tribunus III 06-110A ESC SBEC
    • 1 x 30mm Cooling Fan
    • 2x BEC Cables
    • 1 x Scorpion Lock Strap
    • 1 x hardware Mounting Pack

    MOTOR SPECIFICATIONS:

    • Motor Kv 540 RPM / Volt
    • Weight (including cross mount + Prop mount accessories): 336g
    • Motor Body Dimensions: 45.8mm x 50.7mm (+12.0mm prop spacer)
    • External Shaft Diameter: 8mm
    • Continuous Current: 90A
    • Continuous Power: 1998 Watts
    • Peak Current*: 115A
    • Peak Power*: 2553 Watts

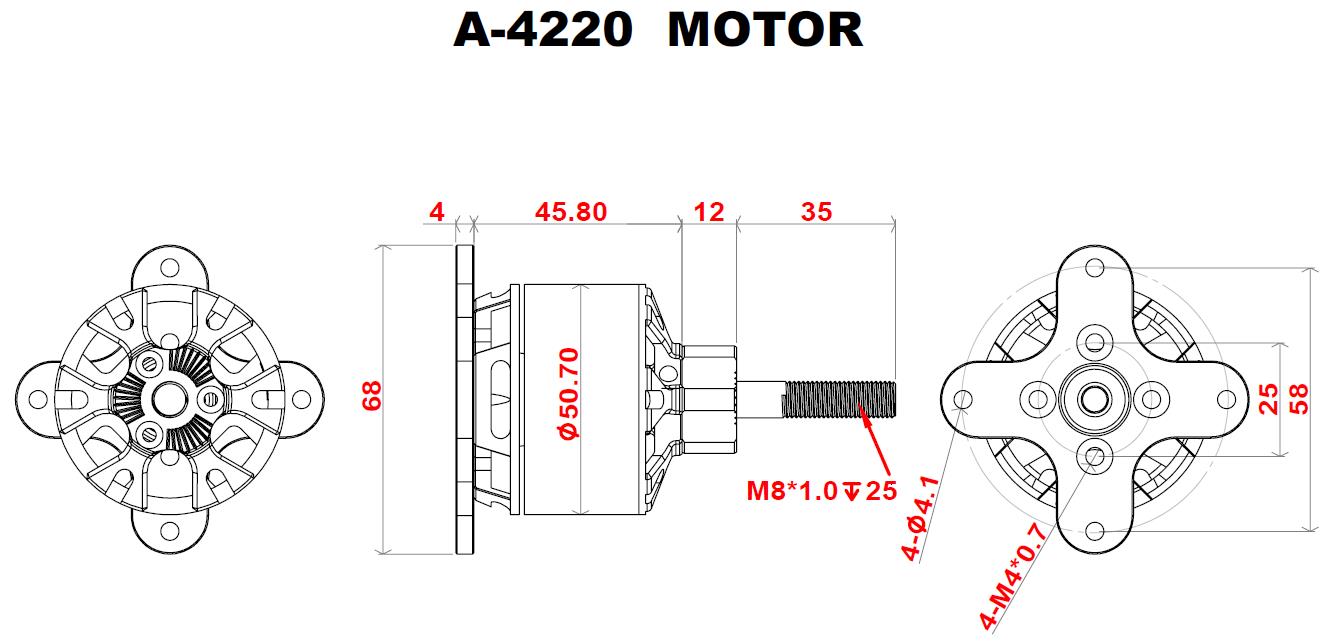

    • Max Rated Lipo Cell: 6sscorpion-a-4220-v2-motor---dimension.jpg
    • Stator Arms: 12
    • Magnet Poles: 14

    ESC SPECIFICATIONS:

    • Max Continuous Current: 110 Amps
    • Peak Current: 150Amps
    • Operating Voltage Range: 11-26.1 Volts
    • BEC Output voltage*: OFF/5.1-12.1V Adjustable
    • Max Cont. BEC Output: 10 Amps @ 8.1 V
    • Peak BEC Output: 20 Amps/1s @ 8.1 V
    • Size: 32.0 x 52.5 x 23.1 mm
    • Mounting Tab Dimensions: 16.0 (Battery Side) / 24.0mm (Phase Side) x 58.0mm M2.5 Bolt
    • Weight (Without Connectors): 105g
    • Drive frequency: 8kHz - 32kHz
    • Cable gauge: 12 AWG
