for airplanes which are designed to use .90 size nitro / glow engines, or airframes weighing 3,5 - 7kg running on 8s battery. Prop Size ~16x10 , 17x10
Scorpion SII-4025-300 Brushless Motor
This motor is perfect for airplanes which are designed to use .90 size nitro / glow engines,
or airframes weighing 3,5 - 7kg running on 8s battery. Prop Size ~16x10 , 17x10
Specifications:
Stator Diameter: 40.0 mm (1.575 in)
Stator Thickness: 25.0 mm (0.954 in)
No. of Stator Arms: 12
Magnet Poles: 14
Motor Wind: 17 Turn Delta
Motor Wire: 17-Strand 0.25mm
Motor Kv: 330 RPM / Volt
No-Load Current (Io) @ 10 v 0.74 Amps
Motor Resistance (Rm): 0.037 Ohms
Max Continuous Current: 75 Amps
Max Continuous Power: 2000 Watts
Weight: 353 Grams (11.96 oz)

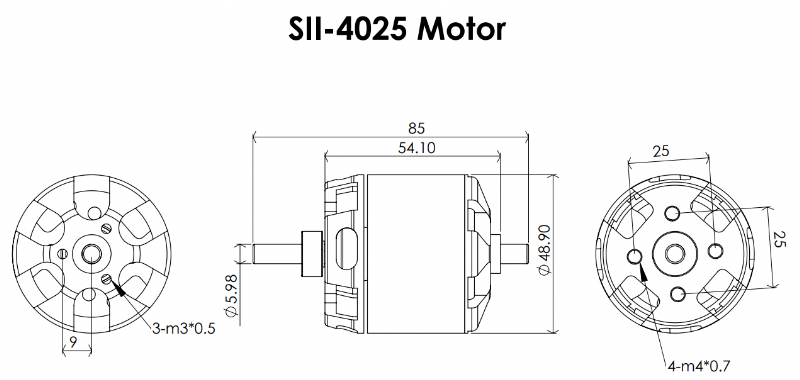

Outside Diameter: 48.9 mm (1.925 in)
Shaft Diameter: 5.98 mm (0.235 in)
Body Length: 54.1 mm (2.129 in)
Overall Shaft Length: 85 mm (3.346 in)
Max Lipo Cell: 8s
Motor Timing: 5deg
Drive Frequency: 8kHz
