Scorpion SII-4025-520KV

Scorpion SII-4025-520 Brushless Motor, Kv=520

Delivery time:
already reordered (no stock)
Add to cart

Scorpion SII-4025-520 Brushless Motorscorpion-power-systems.png


Stator Diameter:40.0 mm (1.575 in)
Stator Thickness: 25.0 mm (0.954 in)
No. of Stator Arms: 12
Magnet Poles: 14
Motor Wind: 11 Turn Delta
Motor Wire: 26-Strand 0.25mm
Motor Kv: 520 RPM / Volt
No-Load Current (Io) @ 10 v: 1.40 Amps
Motor Resistance (Rm): 0.016 Ohms
Max Continuous Current: 100 Amps
Max Continuous Power: 2000 Watts
Weight: 353 Grams (11.96 oz)

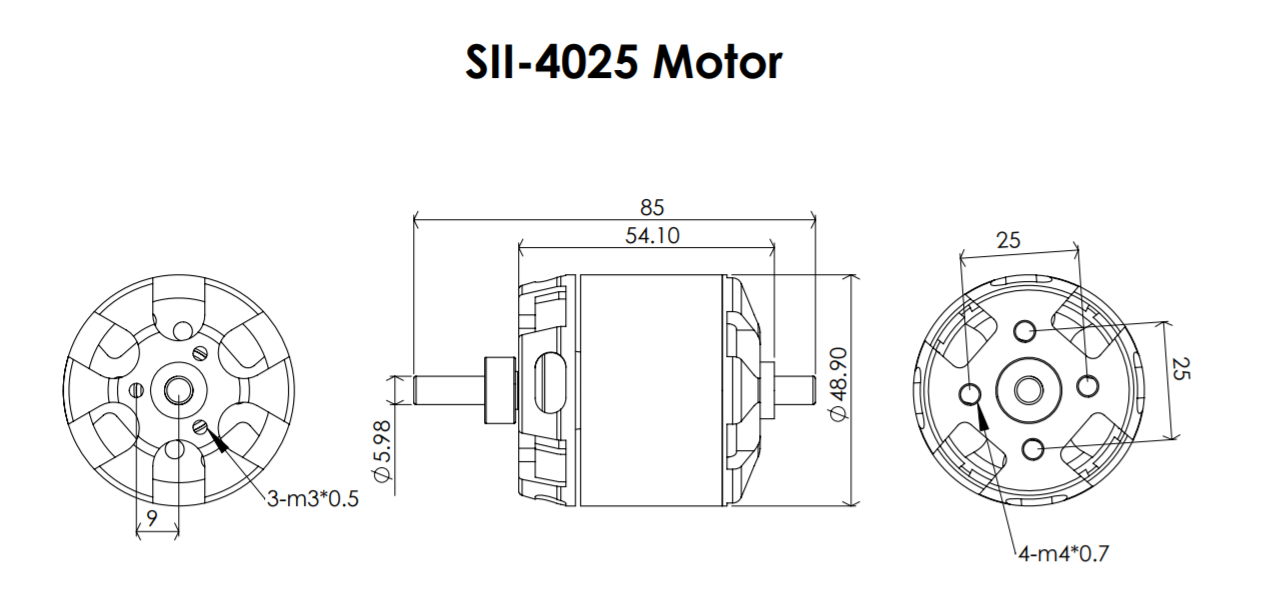

Outside Diameter: 48.9 mm (1.925 in)
Shaft Diameter: 5.98 mm (0.235 in)
Body Length: 54.1 mm (2.129 in)
Overall Shaft Length: 85 mm (3.346 in)
Max Lipo Cell: 6s
Motor Timing: 5deg
Drive Frequency: 8kHz
