Scorpion is proud to announce our latest high performance HKII series motor for those pilots with a need for speed. The brand new HKII-4235-630kv is specifically engineered and built for use in high speed racing applications and is the perfect match for speed machines such as the GAUI R5. With its 1.6mm single strand winding, the HKII-4235-630kv will deliver maximum efficiency and extreme performance on 12s power.
Specifications:

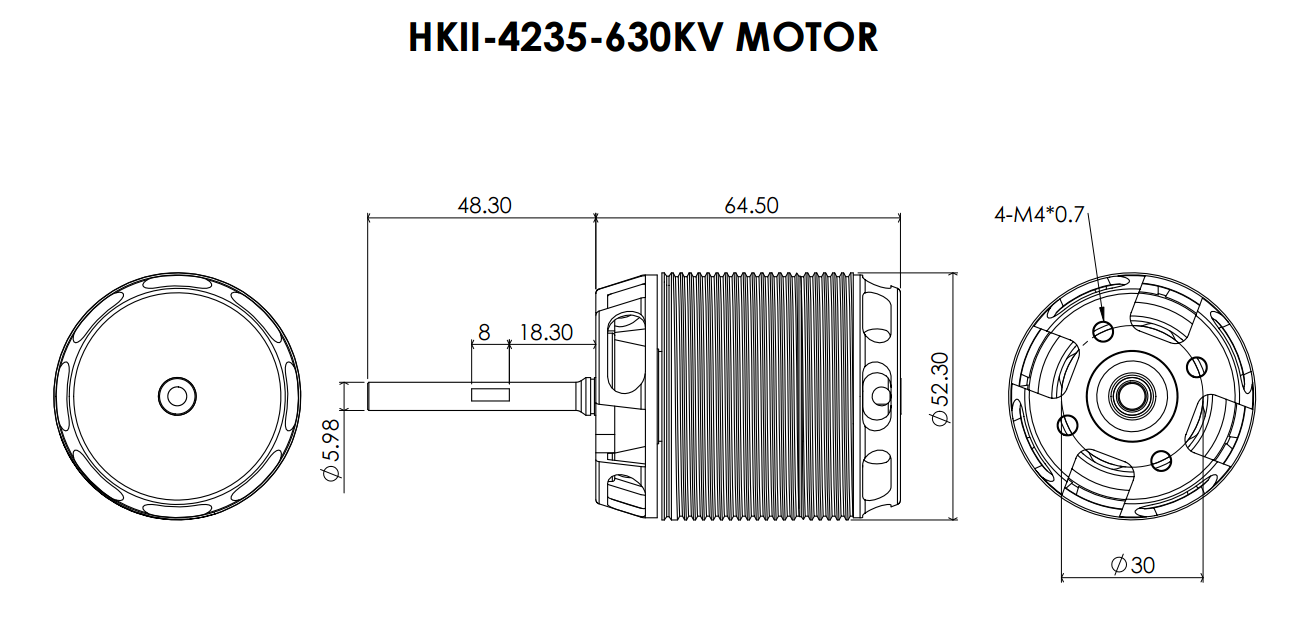

Stator Diameter: 42 mm (1.65 in) Stator Thickness: 35 mm (1.38 in) No. of Stator Arms: 12 No. of Stator Poles: 10 Motor Wind: 4 Turn YY Motor Wire: 1-Strand 1.6 mm Motor Kv: 630 KV RPM/Volt No-Load Current (Io/10V): 3.59 Amps Motor Resistance (RM): 0.009 Ohms Max Continuous Current: 120 Amps Max Continuous Power: 5328 Watts Weight: 522 Grams (18.27 oz) Outside Diameter: 52.3 mm (2.06 in) Shaft Diameter: 5.98 mm (0.24 in) Body Length: 64.5 mm (2.54 in) Overall Shaft Length: 112.9 mm (4.44 in) Max Lipo Cell: 12s Max Peak Current: 160 Amps (3 seconds) Max Peak Power: 7100 Watts (3 seconds) Motor Timing: 5deg to 15 deg Drive Frequency: 8kHz
