Art.No.:
Manufacturer:Scorpion

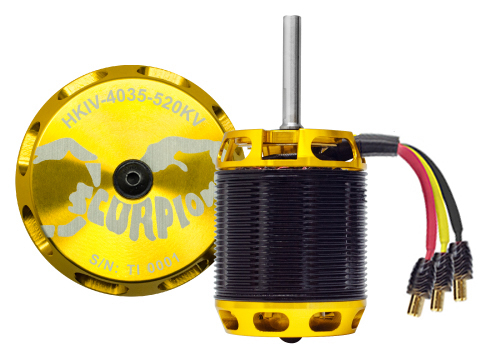

SCORPION HKIV-4035-520KV F3C / FAI Champion

FAI Champion Motor 2019 Hiroki Ito, light weight and high torque, stable Power, 12S, 456g, 4,6KW ...


Delivery time:

not available

scorpion-power-systems.pngSCORPION HKIV-4035-520 KV F3C FAI Champion Motor

  • Since June this year when Scorpion HKIV-40 series was released, a lot of feedback from World Champions and pilots in all facets of the hobby has been received that they have well established the HKIV-40 series as the Gold Standard of R/C model power!
  • The HKIV-4035 series motors have proven themselves to be extremely successful in heli community and has become the most popular motor used in 600 ~ 700 class helicopters worldwide.
  • And now we are pleased to announce the release of the new HKIV-4035-520kv motor that is specially built for F3C helicopter use. With light weight and high torque, it helps you to have a very stable power on your F3C helicopter.

This is a F3C Champion Choice and this motor just won the FAI F3C World Champion 2019 (Hiroki Ito)!!!

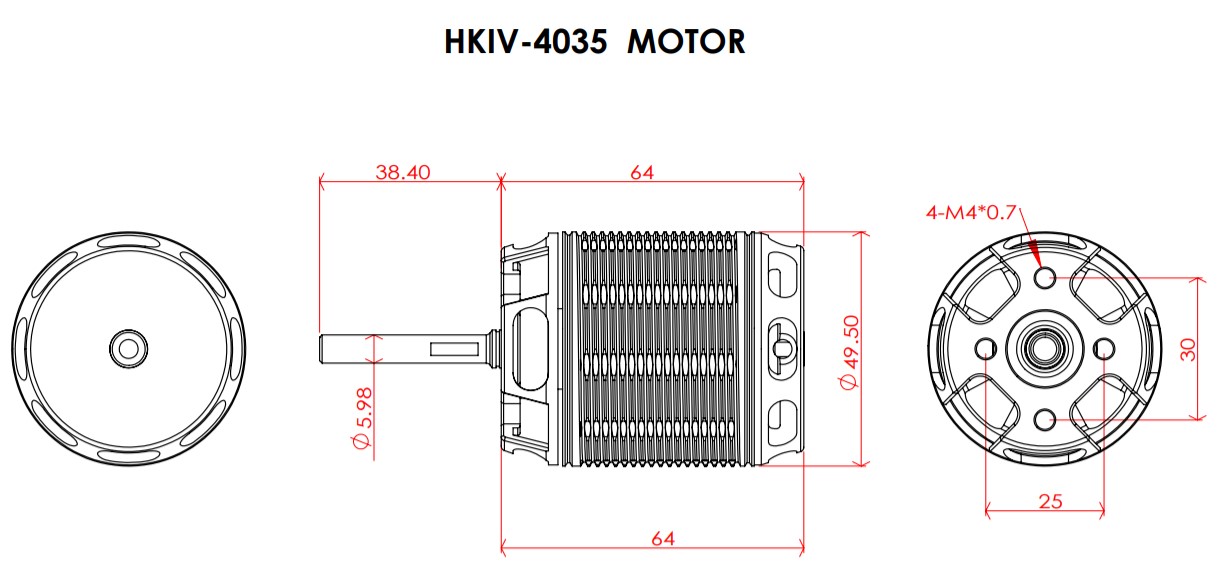

Technische Daten:

  • Stator Durchmesser: 40.0 mmscorpion-hkiv-4035-520-kv.jpg
  • Stator Stärke: 35.0 mm
  • Stator Arme: 12
  • Pole: 10
  • Windungen: 5+6 2Y
  • Draht: 1-Strand 1,35 mm
  • U/min/V: 520
  • Leerlauf (Io): 2,1 A @ 10 V
  • Widerstand (Rm): 0.016 Ohm
  • Belastbarkeit: 84A Dauer / 104A Peak
  • Max Leistung: 3726W Dauer / 4617W Peak
  • Gewicht: 456g
  • Durchmesser: 49.5 mm
  • Welle: 5.98 mm
  • Motorlänge: 64 mm
  • Wellenlänge: 102,4 mm
  • Max. Lipo Zellen: 12scorpion-hkiv-4020-connector-set.jpg

Lieferumfang:
1 x Scorpion HKIV-4035-520KV Motor
3 x weibliche Stecker / Female Connectors
3 x Steckerabdeckung
4 x M4 Schrauben
