SAVOX SB-2292SG Swashplate SERVO

31kg Torque, 0,07s, Monster Torque Servo Full, Aluminum Case, 3 Precision Ball Bearings, Brushless Motor, High Voltage

*HIGHLIGHT

plus Shipping costs

Delivery time:

small quantity

Stück

Add to cart

Description
Inquiry

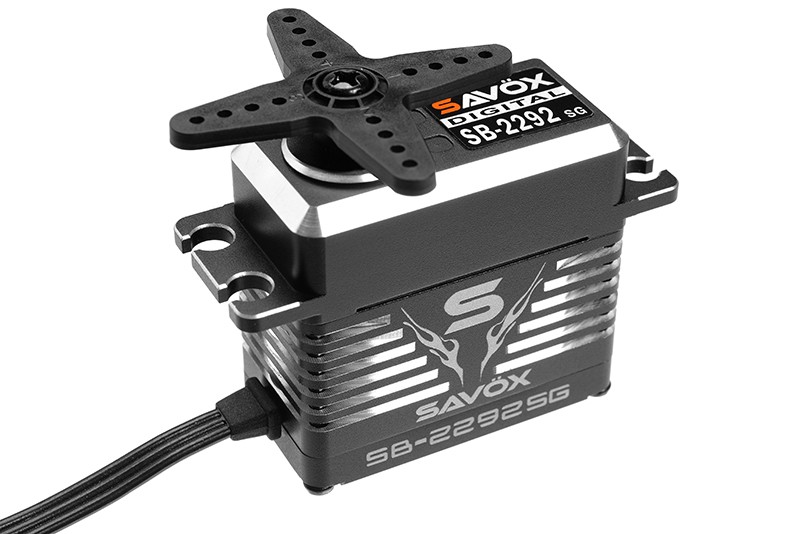

SAVOX SB-2292SG Swashplate Servo

This is the Savox SB-2292SG Black Edition Monster Torque Brushless Steel Gear High Voltage Servo.
The Savox Monster Torque servo utilizes a unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
- Full Aluminum Case
- 3 Precision Ball Bearings
- Brushless Motor
- High Voltage

Specifications:

Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V - 7.4V
Motor Type: Brushless Motor
Gear Material: Steel Gears
Ball Beared: Ball Beared
Servo Case: Full Aluminum Case
Length (mm): 40.3 mm
Width (mm): 20.2 mm
Height (mm): 38.7 mm
Weight (g): 81 g
Speed 60°/Sec @ 6.0V: 0.085 sec/60 deg
Speed 60°/Sec @ 7.4V: 0.07sec/60 deg
Torque kg/cm @ 6.0V: 22.0kg/305.5oz-in
Torque kg/cm @ 7.4V: 31.0kg/430.5oz-in
Connector type: JR
Spline size: 25T Spline
