Manufacturer:Scorpion

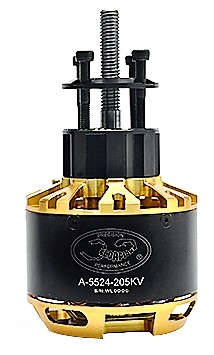

SCORPION A-5524-205KV

New Release 2023!, 11,6kg Trust, 1,8-2m Plane (35-40cc Gasoline) & 50-59cm Prop, 4662W max, 3552W Current Power, 12S Lipo, 8mm Shaft, 205KV, 622g, 74x65,8mm

*HIGHLIGHT*
- New @ WOH -
Delivery time:

already reordered (no stock)
 Stück
Add to cart




Scorpion A-5524-205KVscorpion-power-systems.png



The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane.

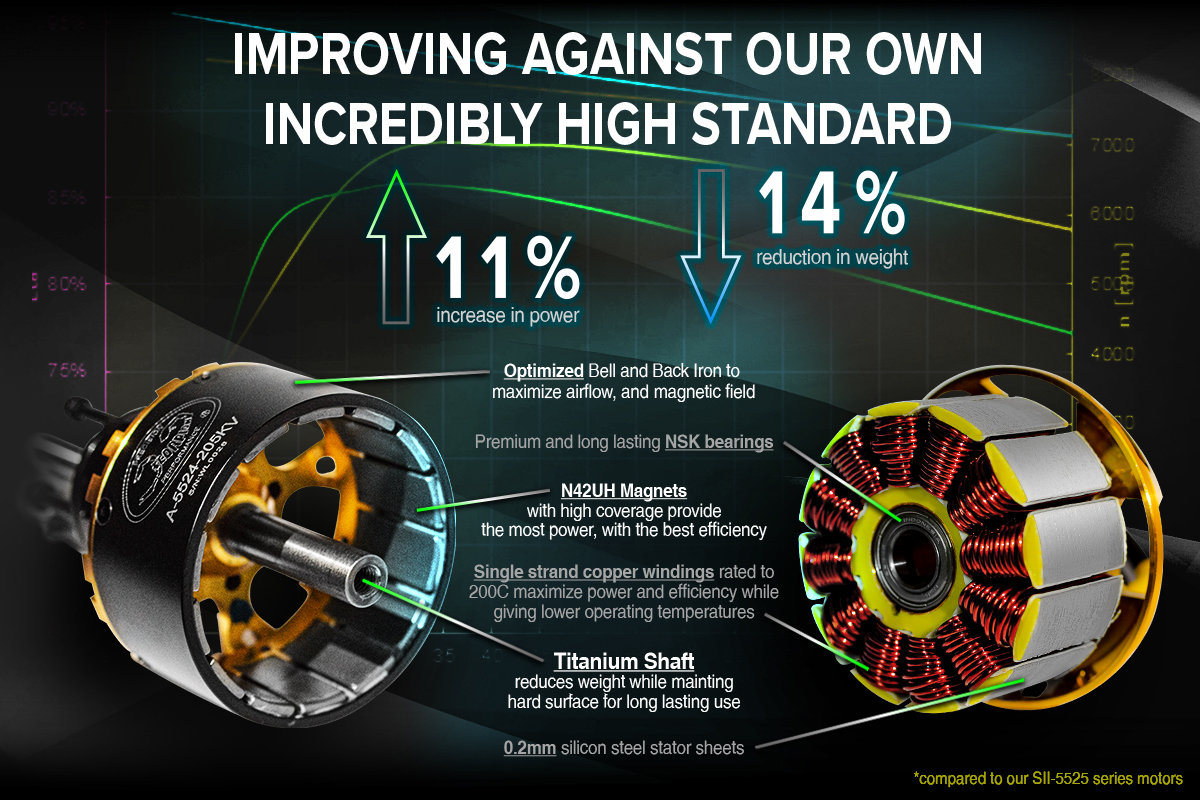

We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and 2 x single strand enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

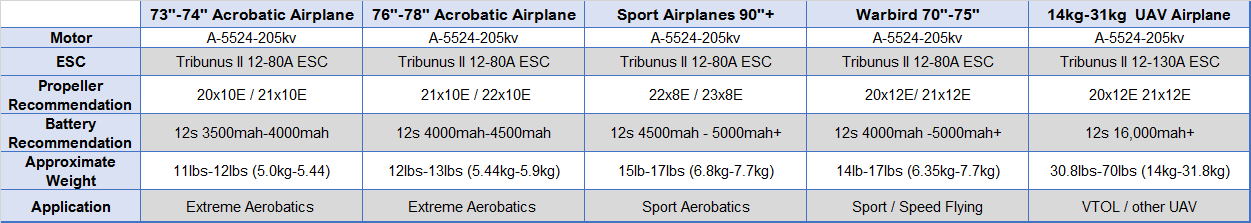

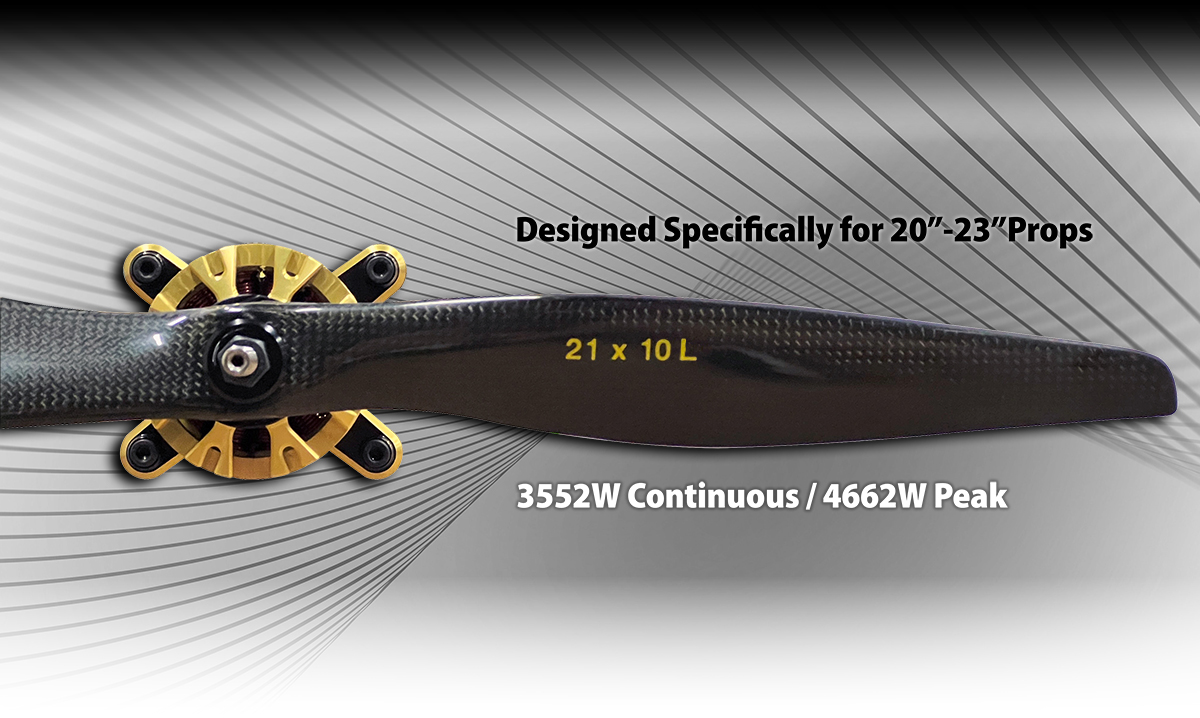

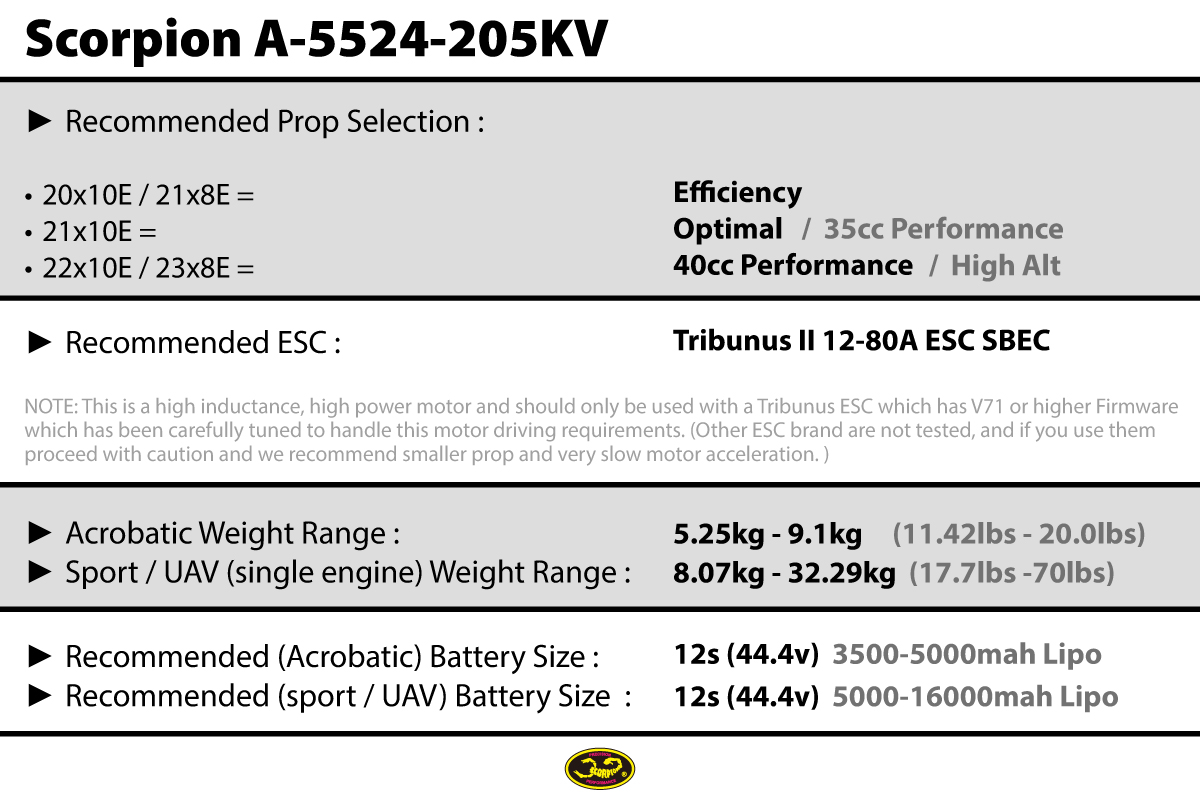

Recommended Prop Selection:scorpion-a-5524-205kv.jpg

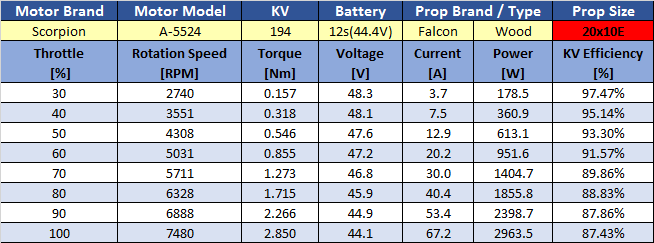

  • 20x10E / 21x8E = Efficiency

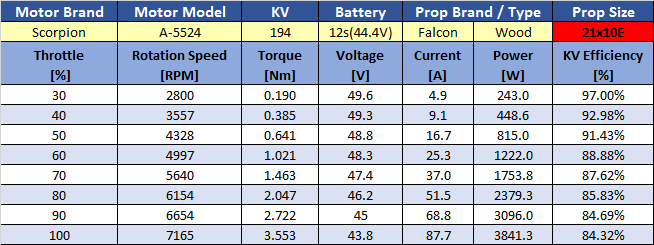

  • 21x10E = Optimal / 35cc performance

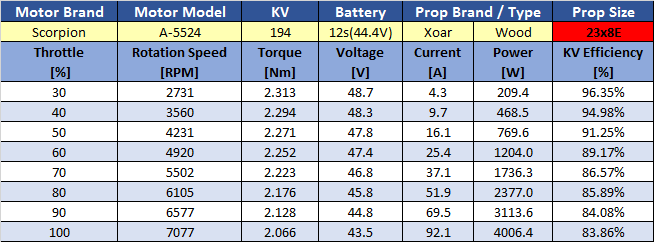

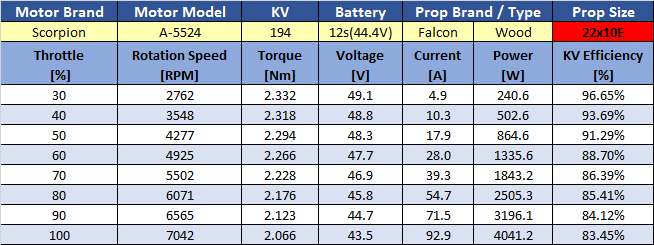

  • 22x10E / 23x8E = 35cc performance / High Alt

Recommended ESC:

  • Tribunus II 12-80A ESC SBEC

Acrobatic Weight Range -:

  • 5,25kg - 9,1kg

Sport / UAV (single engine) Weight Range :

  • 8,07kg - 32,29kg


  • Motor Kv: 205 RPM / Volt
  • Weight (Motor only): 622g
  • Weight (including mount + Prop mount accessories): 655g

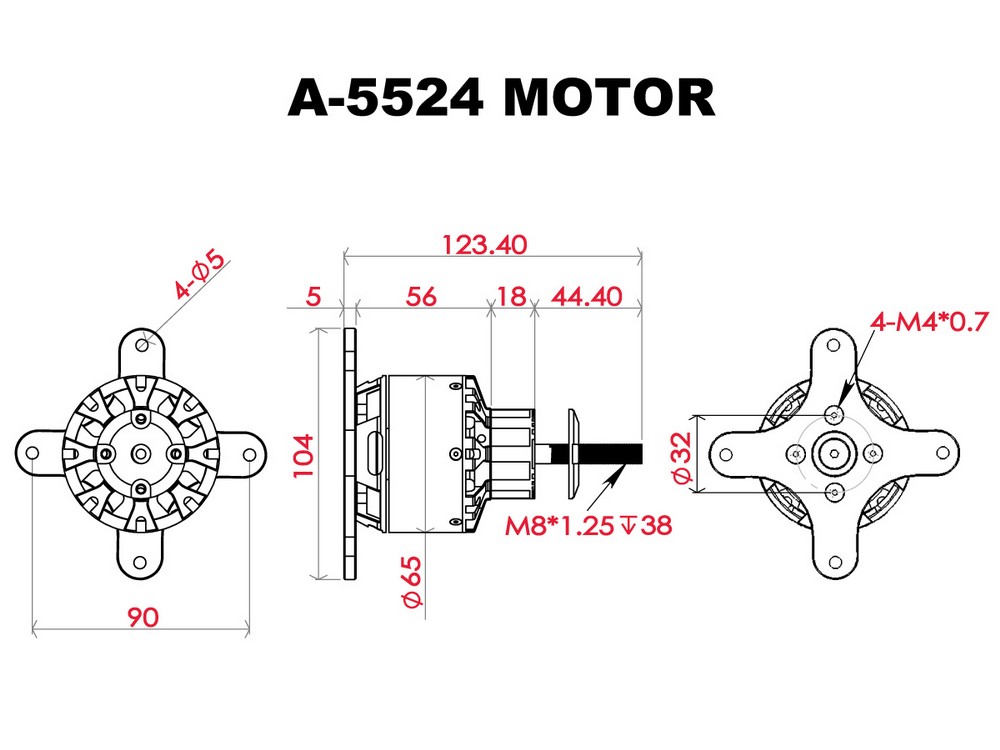

  • Motor Body Dimensions: 74 mm x 65.8mm
  • External Shaft Diameter: 8mm
  • Continuous Current: 80A
  • Continuous Power: 3552 Watts
  • Peak Current: 80A
  • Peak Power: 4662 Watts
  • Max Rated Lipo Cell: 12s
  • Stator Diameter: 55.0 mm
  • Stator Thickness: 24 mm
  • No. of Stator Arms: 12
  • Magnet Poles: 14
  • Motor Wind: 9T/10T Delta
  • Motor Wire: 2-Strand x 0,96mmscorpion-a-5524-205kv-lieferumfang.jpg
  • No-Load Current (IO/15V): 1,51 Amps
  • Motor Internal Resistance (phase-phase): 35 mOhm
  • Motor Inductance (phase-phase) @ 1khz: 40 mHrz

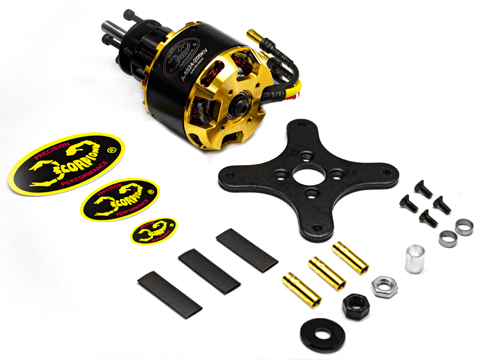

Included in the Box:

  • 1 x Scorpion A-5524 BLDC Motor
  • 1 x A-55/65 Cross Mount (stock)
  • 4 x M4 Cross Mount Mounting Bolts

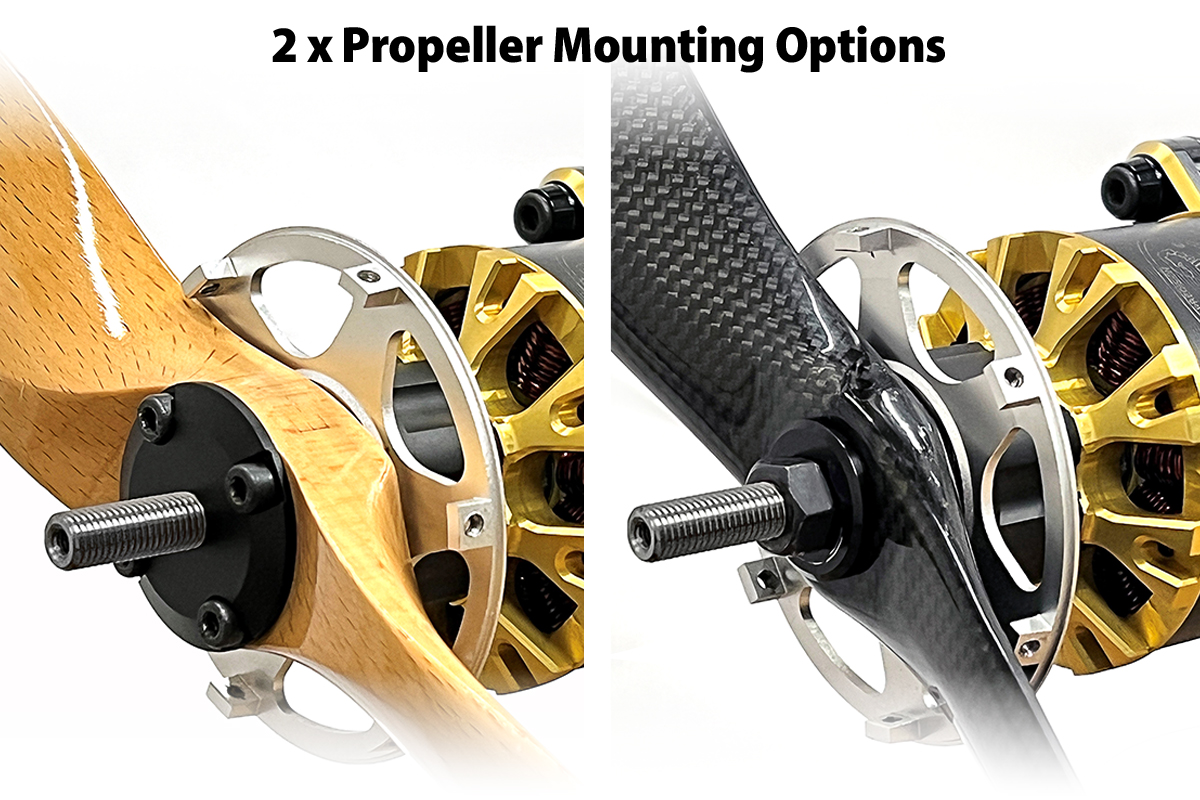

  • 3 x Prop Bore Spacers (8x10x 4/4/10)
  • 3 x Female 6mm Connectors
  • 3 x Heat Shrink
  • 3 x Scorpion Stickers
  • 2 x M8 Nuts
