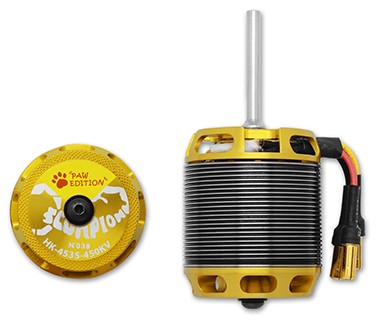

SCORPION HK-4535-450kV 14S Torque / Kraft Brushless Motor
The Scorpion HK-4535-450KV PAW Edition is designed for using on 700 to 800 class helicopters running on 14-cell Li-Po power.
This motor represents the most technologically advanced power source ever offered for a 700 to 800 class electric helicopter and also produces 7% more torque than HK-4535-450Kv 12N10P at the same power input.
Each of the new HK-4535-450KV PAW Edition motor is wound with a single strand of 1.7 mm wire for the highest possible efficiency.
This motor is capable of running continuously at an input power of 6650 watts at 125 amps, and can handle peak inputs of 12200 watts and 230 amps for 2 seconds.
This is limited to 144 pieces.

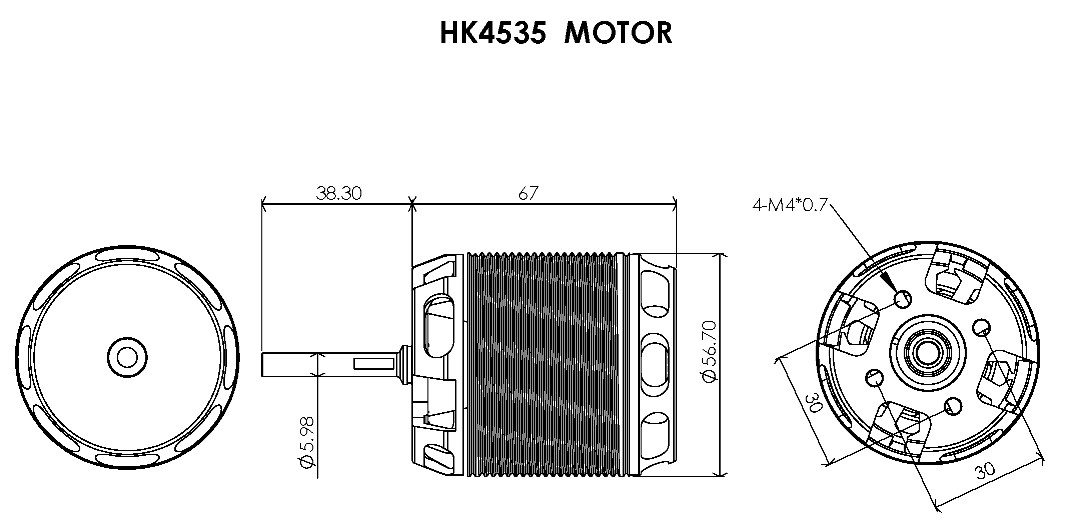

*This motor is using 30mm bolt spacing on the mounting with M4 Screw holes
Specifications:
Stator Diameter: 45 mm
Stator Thickness: 35 mm (1.38 in)
No. of Stator Arms: 12
No. of Stator Poles: 14
Motor Wind: 4T+4T in double Wye (YY)
Motor Wire: 1-Strand 1.7 mm
Motor Kv: 450KV RPM/Volt
No-Load Current (Io/10V): 2.18 Amps
Motor Resistance (RM): 0.007 Ohms
Max Continuous Current: 125 Amps
Max Continuous Power: 6650 Watts
Weight: 658 Grams (23.18 oz)
Outside Diameter: 56.7 mm (2.23 in)
Shaft Diameter: 5.98 mm (0.24 in)
Body Length: 67.0 mm (2.63 in)
Overall Shaft Length: 117mm (4.6 in)
Max Lipo Cell: 14 s
Max Peak Current: 230 (2 seconds)
Max Peak Power: 12200 (2 seconds)
Motor Timing: 5deg to 15 deg
Drive Frequency: 8kHz
Weight including packaging 1055g
For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!
HK Patent No. : HK1141674 - China Patent No. : ZL2010 2 0298704.9 - Taiwan Patent No. : M399539 German Utility Patent No. : 202012006207.7 - U.S Patent No. : Pending - All Others Worldwide Patent : Pending
