Manufacturer:Scorpion

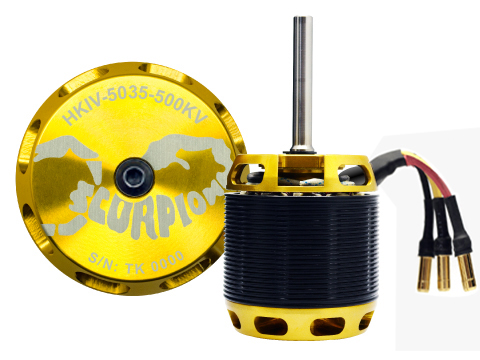

SCORPION HKIV-5035-500 KV (8/55 mm) Brushless Motor

Highlight - Brandnew HeliMotor 700-800 size & Scale Helicopters, 12S, 7,1KW, 8mm Motor Shaft, 785g ...

*HIGHLIGHT
Delivery time:

already reordered (no stock)
 Stück
Add to cart

 SCORPION HKIV-5035-500KV - 8/55mm Motorwelle logo-scorpion-small.png

  • HeliMotor der 700-800er Klasse sowie für Scalemodelle
  • Since January 2012 the HKIII-50 series has released, this is one of the best motor for helicopter in 700 Speed helicopter and 800 class.
  • After 8 years now we are pleased to announce the forth generation of HK-50 motor, HKIV-5035 series motor!!! With the same motor design and materials of HKII-45 series, and single strand winding technique on this size of motor, it has the better efficiency and power conversion than HKIII-50 series, with an entirely new EM field design, while improving the compatibility with various speed controllers available on the market.
  • With the new design of the rotor and new configuration, Scorpion HKIV-5035 series not only provide even higher efficiency, but also higher peak power and higher torque with lower running temperature.

Specifications:

  • Stator Diameter: 50 mm
  • Stator Thickness: 35 mm
  • No. of Stator Arms: 12scorpion-hkiv-5035-500.jpg
  • Magnet Poles: 10
  • Motor Wind: 4+3 Turn Delta
  • Motor Wire: 1-Strand 1.8mm
  • Motor Kv: 500 RPM / Volt
  • No-Load Current (Io) @ 10 v 4.2 Amps
  • Motor Resistance (Rm): 0.0108 Ohms
  • Max Continuous Current: 120 Amps / 160A Peak
  • Max Continuous Power: 5328 Watts / 7104 Max
  • Weight: 785 Grams
  • Outside Diameter: 62.2 mm
  • Shaft Diameter: 7.98 mm (0.31 in)
  • Body Length: 69,2 mm
  • Overall Shaft Length: 124,8 mm
  • Max Lipo Cell: 12s
  • Motor Timing: 5deg
  • Drive Frequency: 8kHz
