die Neuheit 12/2025 - der Edle Goblin GENESIS SPORT - The new Genesis Sport is completely redesigned, offering several advanced features:
The new Genesis Sport is completely redesigned, offering several advanced features:

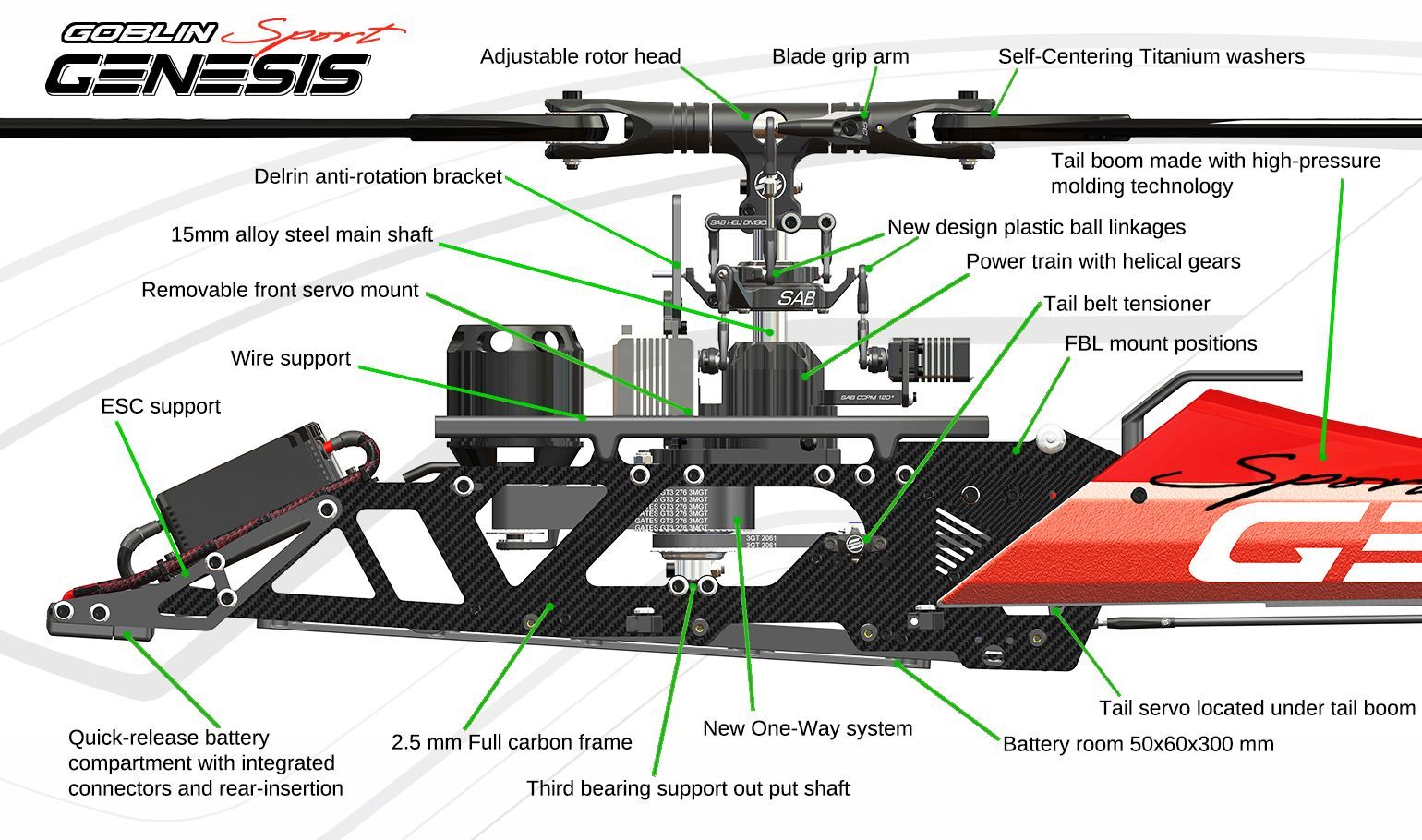

Transmission:
Belt Drive: Ensures a very quiet and smooth transmission.
One-Way Bearing: positioned directly on the main shaft for maximum smoothness during autorotation.
15 mm Main Shaft: Supported by two bearings assembled in a separate unit for ease of maintenance.
Rotor Head:
New Design: Features 35 mm blade grip arms with a new locking system.
Self-Centering Titanium Washers: Ensure automatic centering for greater precision.
Pivot Option for Spindle: Fully configurable for rigidity and maximum movement.
Tail Rotor:
8 mm Tail Shaft with 8x16x5 bearings for significantly increased rigidity.
Single-Piece Shaft and Hub: Made from a single piece for maximum precision.
Double-Point Pitch Control Slider: Reduces play in the tail rotor control.
Tail Boom:
Molded Carbon Fiber: Tail boom is molded carbon fiber and assembled directly to the main frame.
Belt Tensioning System: Includes an indicator for tension force for optimal control.
Canopy and Blades:
Rear Battery Insertion: Batteries are inserted from the rear with integrated connectors.
No Canopy Removal Needed: Canopy does not need to be removed for battery changes.
The kit includes new S747-O main blades and the new S110-O tail blades.
The Genesis Sport offers advanced features that make it an excellent choice for both competition and demanding RC helicopter enthusiasts.
Specifications:
AIRFRAME weight: 2584 gr (no blades, no battery, no electronics).
Main rotor diameter: 1650 mm (with 747 mm blades).
Main blade length: 690 to 760 mm.
Tail rotor diameter: 292 mm (with 110 mm tail blades).
Tail blade length: 105 to 115 mm.
Cyclic Servos: Standard size 40 mm.
Tail Servo: Standard size 40 mm.
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1 - 4.9:1 (26T includes 4.9:1)
Main shaft 15 mm, Tail shaft 8 mm
Molded carbon tail boom
Motor 12S, 480/560 KV
Battery room: 50x60x300 mm
KIT Includes:
21T motor pulley (other pulley sizes available).
2 battery trays with integrated connectors.
S747 Orange (747 mm main blades)
S110 Orange (110 mm tail blades)
