SAB ILGOBLIN PRO 700 KSE 3-BLATT

ILGoblin PRO 3-BLADE 700 Kyle Stacy Edition - The iLGoblin Pro KSE elevates 3-blade flying to a whole new level. This model is a fully upgraded version featuring a carbon-look finish, with a 3-mainblade rotor and a 3-tailblade rotor, meticulously refi

1.328,00 EUR

zzgl. Versandkosten

Lieferzeit:

im Zulauf (bestellt)

In den Warenkorb

SAB TAUMELSCHEIBENLEHRE 15MM / SWASHPLATE LEVELER 15mm - ILGoblin PRO ...

SAB TRANSPORTTASCHE - GOBLIN 700 / 770 / Urukay / KRAKEN / RAW

KST X20 SERVO COMBO 3x X20-2208 V8.0 / 1x X20-1035 V3.0 HELI

YGE AUREUS 135 HVT BEC Brushless Regler 12S - BLACK EDITION

YGE 205 HVT V2 BEC BRUSHLESS REGLER 14S - BLACK EDITION

» ILGOBLIN PRO 700 3-BLATT KYLE STACY EDITION «

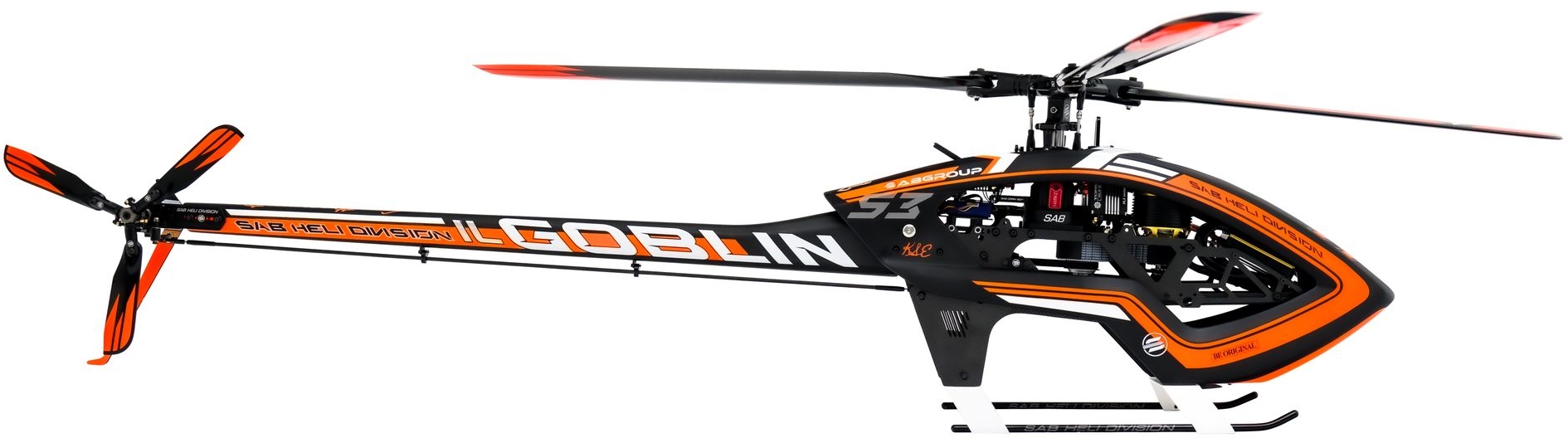

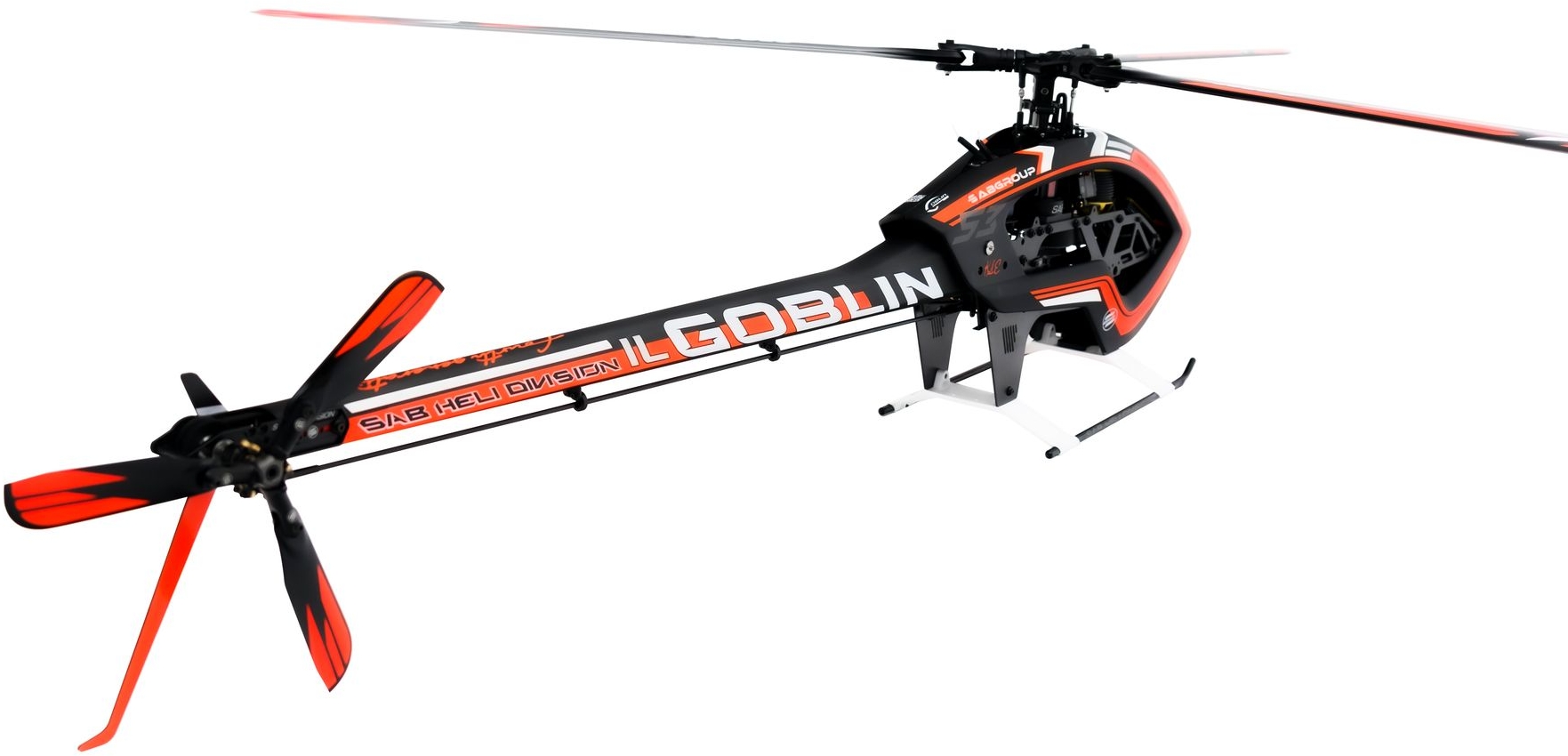

The iLGoblin Pro KSE elevates 3-blade flying to a whole new level.

This model is a fully upgraded version featuring a carbon-look finish, with a 3-Blade msin rotor and a 3-Blade Tail.
meticulously refined by Kyle Stacy to achieve the best flight characteristics.
The model incorporates newly designed blades, specifically designed to enhance its performance.
With a more robust transmission case, redesigned tail rotor, upgraded head design, and the cutting-edge 682mm 3-blades
it sets the standard as the strongest and most precise 3-blade helicopter available.

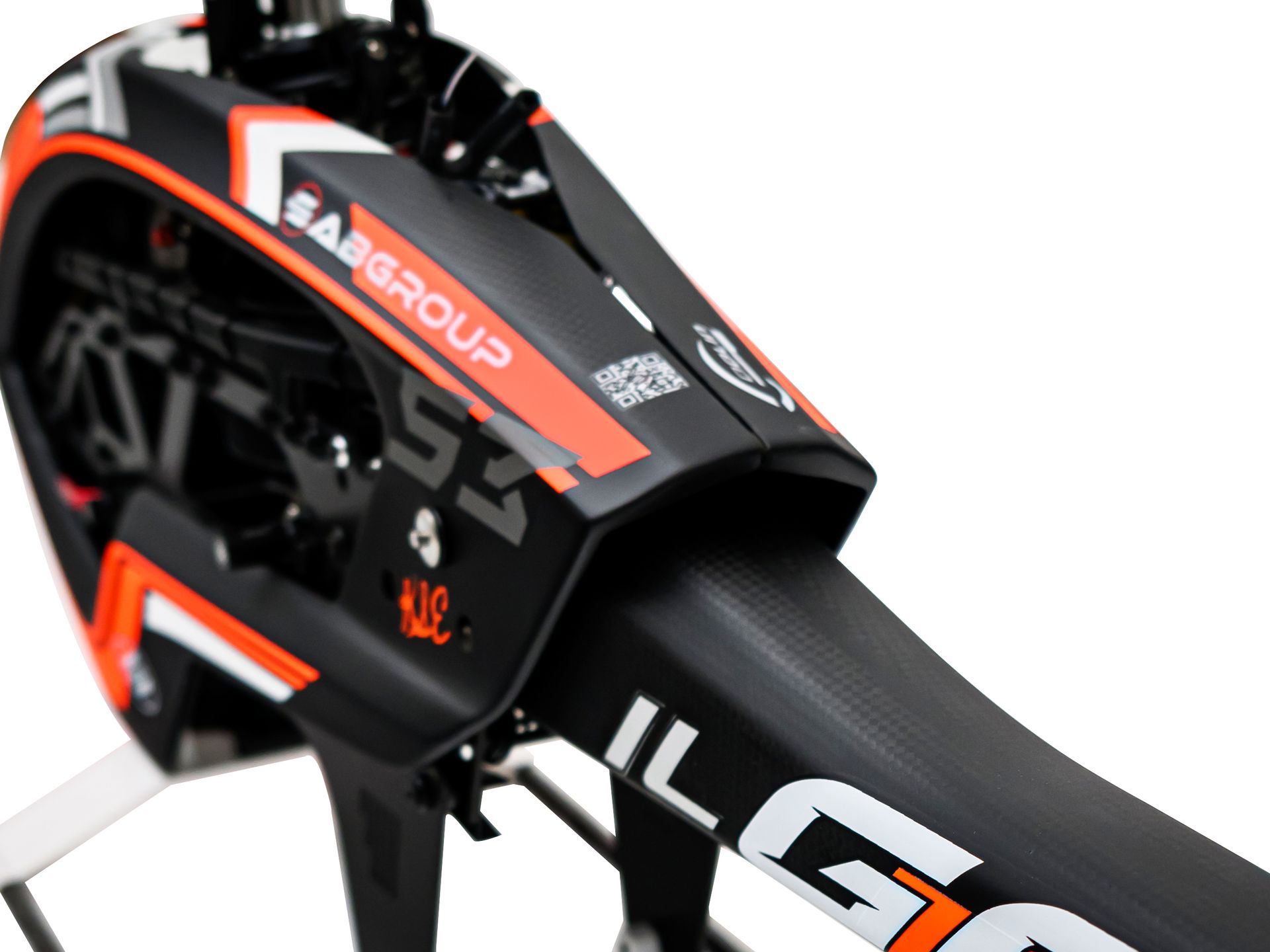

Its striking orange carbon fiber scheme adds a distinctive touch, making it truly one of a kind.

« DETAILS »

AIRFRAME weight: 2272 gr (no blades, no battery, no electronics)
Main blades length: 682 mm (3 Blades)
Tail blades length: 110 mm (3 Blades)
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Molded carbon tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm

« Kit includes »

21T motor pulley (other pulley sizes available).
2 battery trays with integrated connectors.
S6823-O 3-BLADE MAIN BLADES Set 682mm Orange
S1103-O 3-BLADE TAIL BLADES Set 110mmOrange

Here are the main innovations:

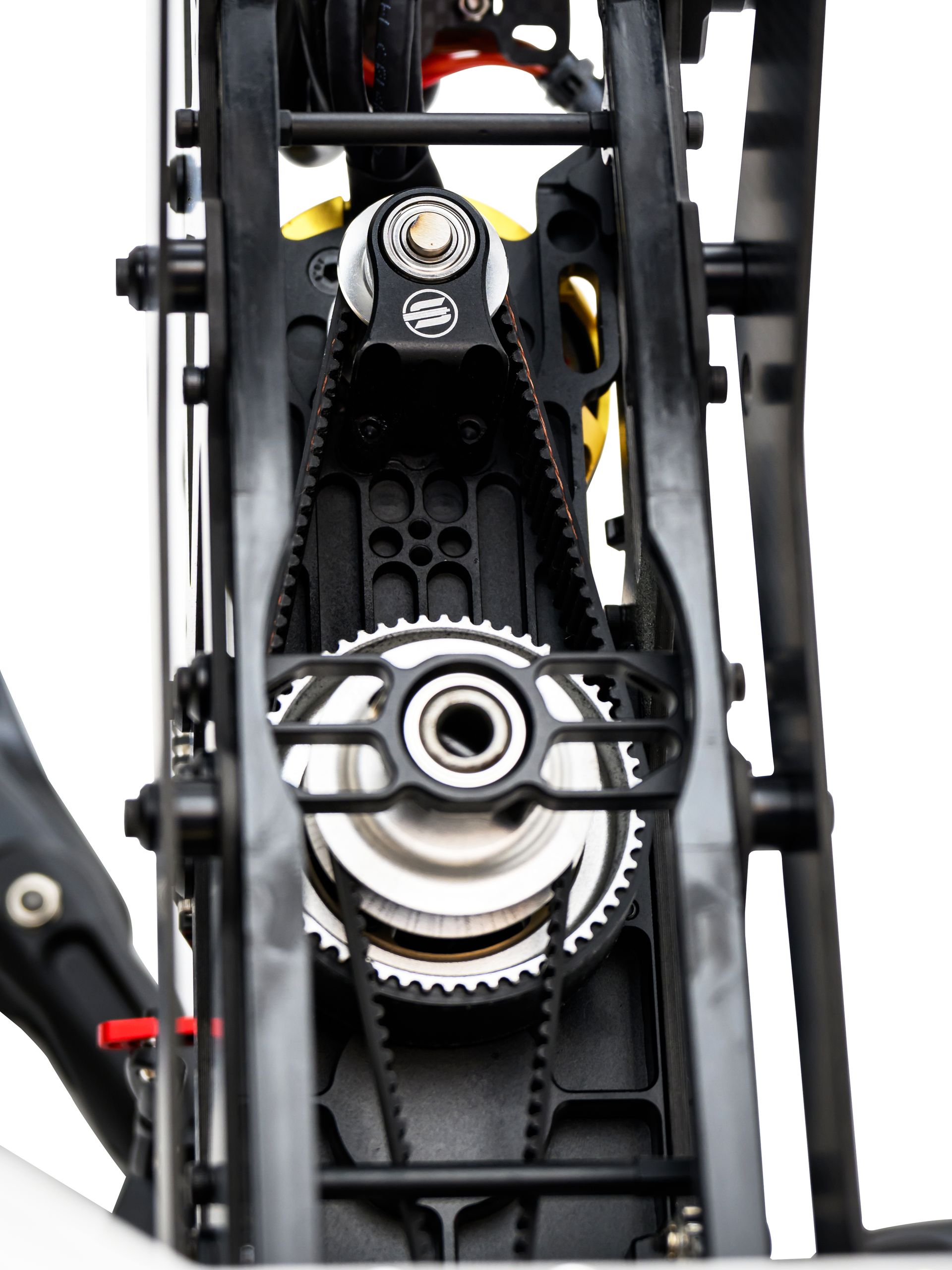

Main transmission:
The main transmission is based on the renowned GOBLIN gearbox, now further improved.
The main shaft diameter has been increased to 15 mm for increased rigidity.
New helical gears for increased durability and strength.
New One-Way system, redesigned for optimal performance.
A fast disassembly servo mount that allows for easier and faster maintenance on the servos.
The new gearbox is lighter than previous models.

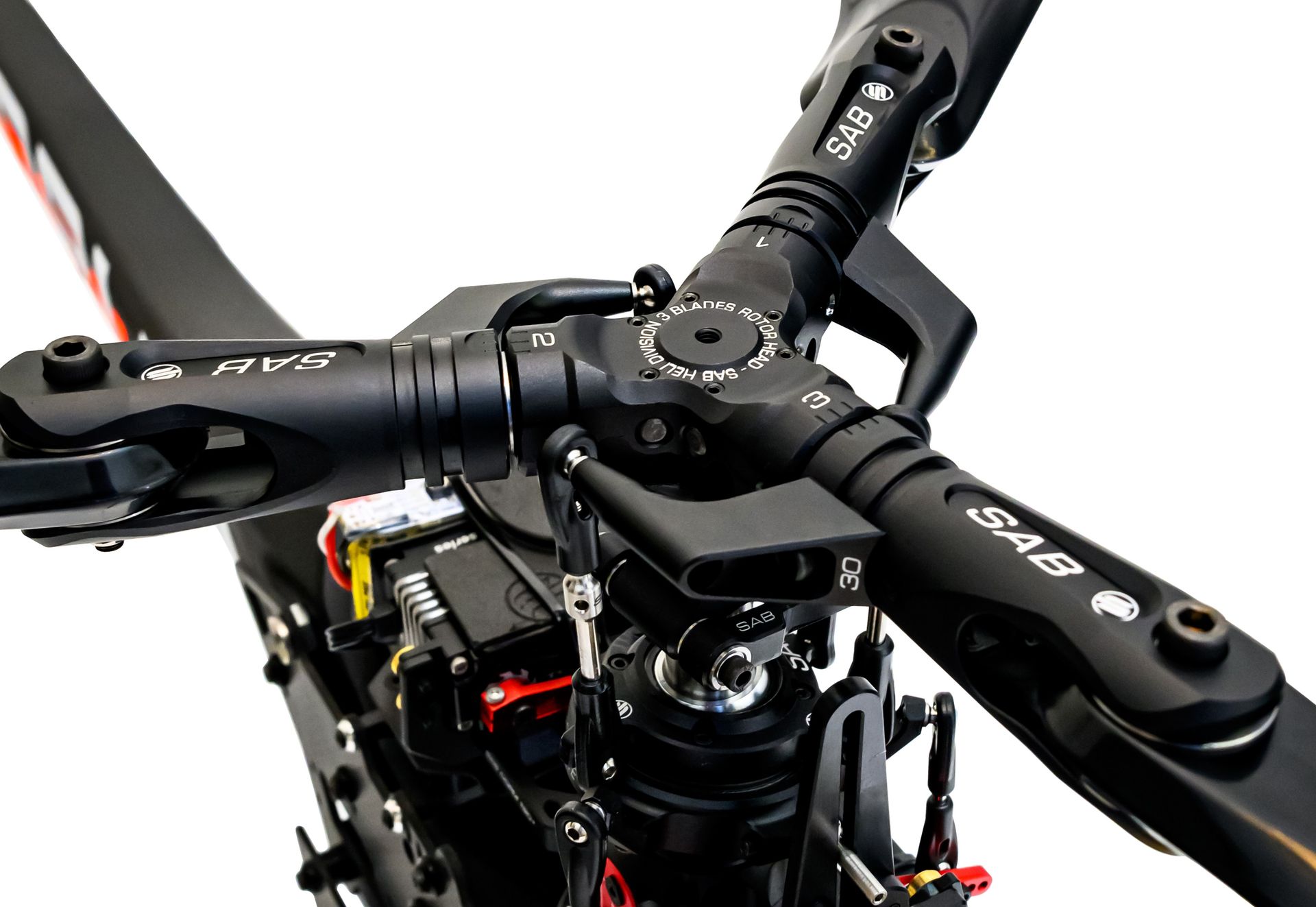

Rotor head:
New design that features new blade grip arms with an improved locking system.
Self-Centering Titanium washers that ensure automatic centering for greater precision.
Possibility of adding a pivot shaft for the spindle allowing customization of rigidity and maximum movement.

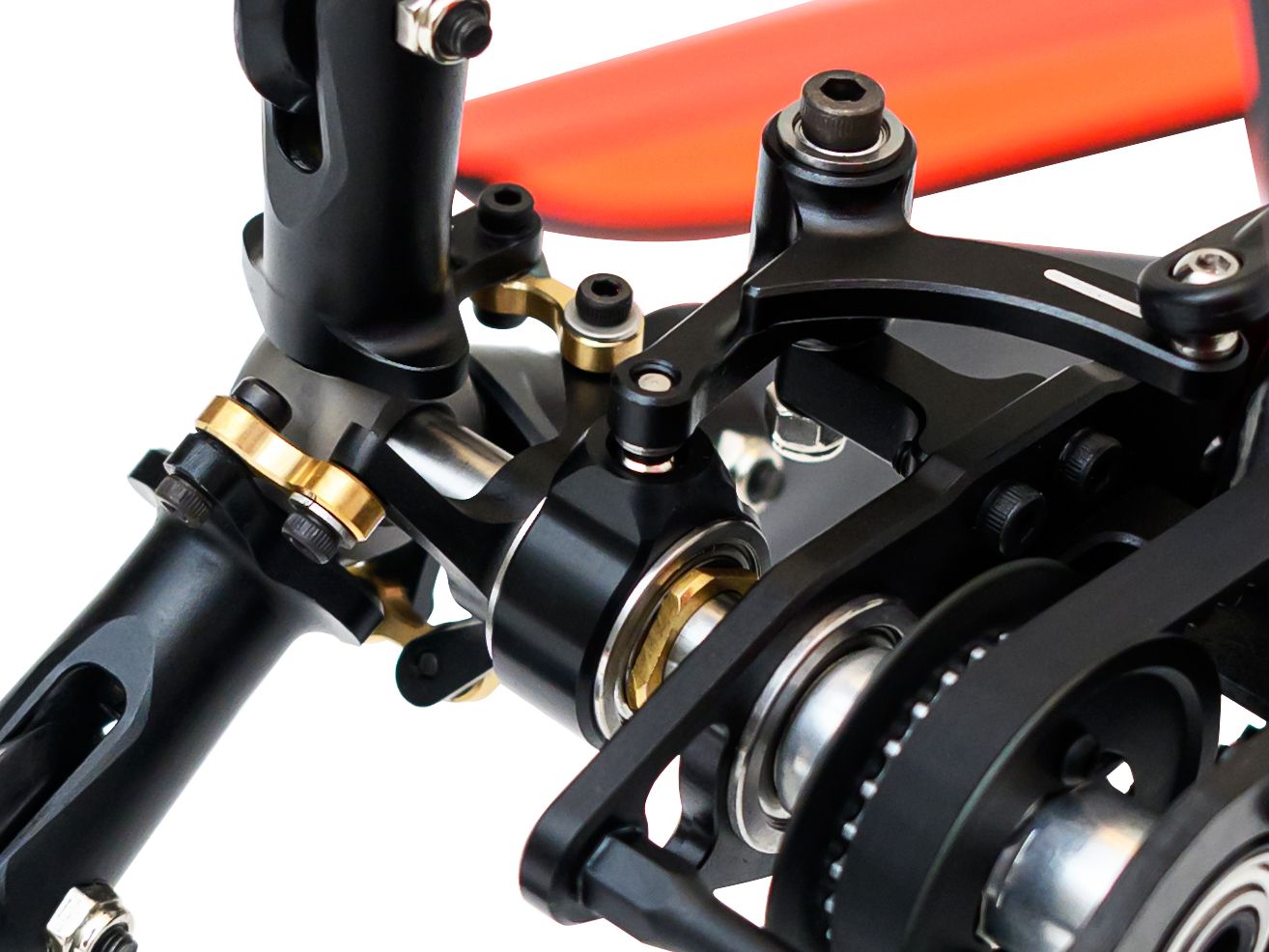

Tail rotor:
8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.
The shaft and the Hub are made from a single part in order to have maximum precision.
The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preferences.

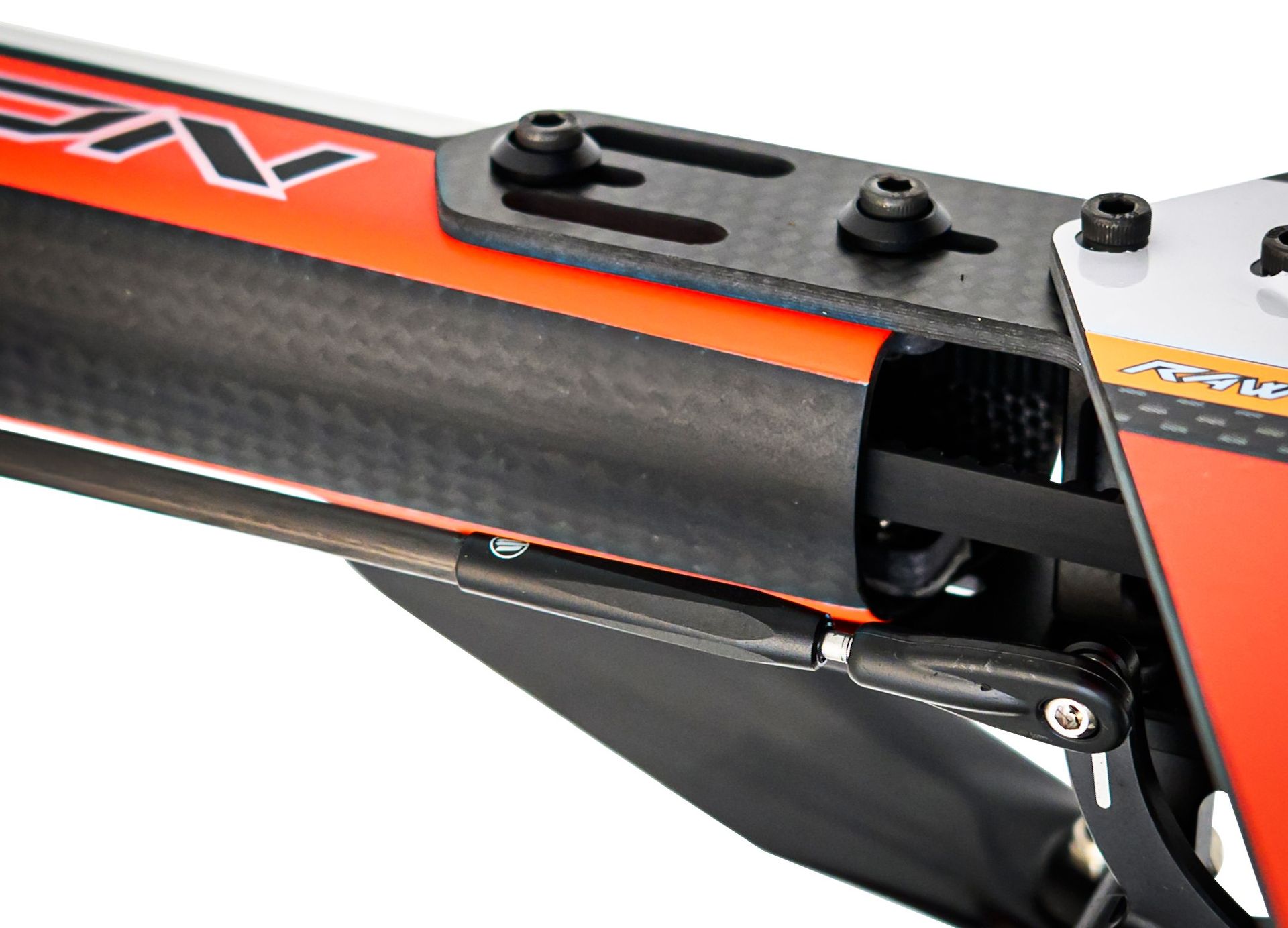

Tail boom:
Made with high-pressure molding technology and its weight is only 180 gr.

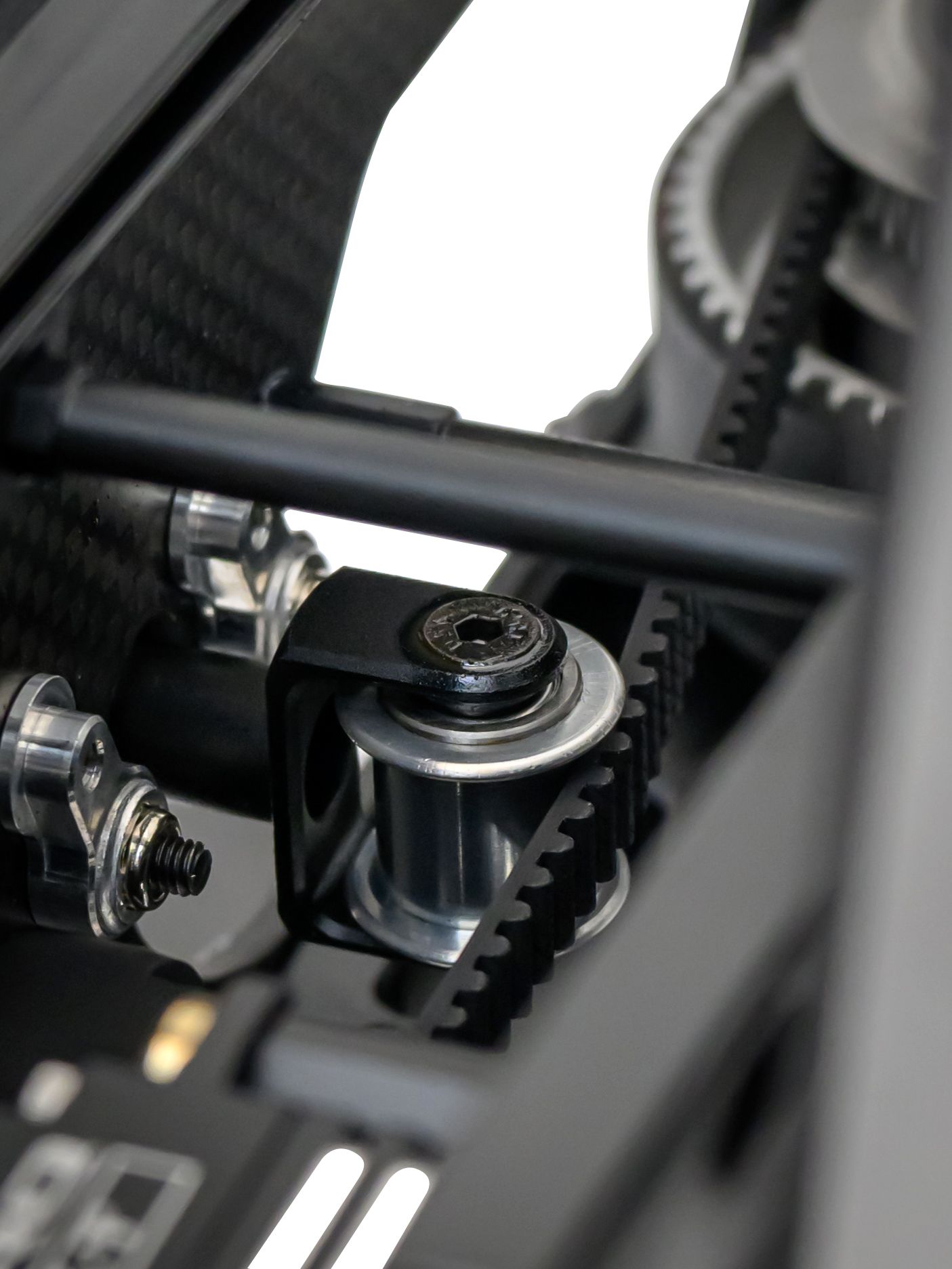

Includes a belt tensioning system with an indicator for optimal control

Canopy and blades:
With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.
The blades in the kit are the new 682mm 3-Blades with new profile and dynamic performance, color-matched to the canopy.
The tail blades are 110mm 3-Blades with a new design for improved performance.
