Hersteller:Scorpion

SCORPION A-3017-560KV

Neuentwicklung 2023!, 6S Lipo 710W, nur 134g 1,2m Klasse (kleiner 10cc Verbrenner) und 30-35cm Propeller, 510W Dauerleistung, 5,98mm Welle, 560KV, 36,6x36,5mm

- BRANDNEU -
Lieferzeit:

kleine Menge




Scorpion A-3017-560KVscorpion-power-systems.png



Die A-3017-Serie wurde speziell für 48-Zoll / 1,2m Akrobatikflugzeuge oder andere Sport- / UAV-Flugzeuge entwickelt, die eine Leistung von bis zu 962 W benötigen.Auch als Größe 30-32E bekannt. Für die A-3017 bieten wir 3 x kV-Bereiche von 560 / 600 / 920 für verschiedene Anwendungen und verschiedene Spannungsbereiche.
Die 560 kV sind speziell für sanftere Sportfluganwendungen oder UAV-Anwendungen vorgesehen.

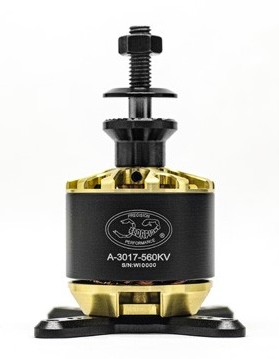

Empfohlene Propeller:scorpion-a-3017-560-motor.jpg

  • 12x6 / 12x7 = Efficiency
  • 13x6 = für Standardflug (kein 3D)
  • 13x6,5 / 14x6 = Hohe Leistung

Empfohlene Regler

  • Tribunus 06-80A ESC SBEC

ACRO Gewichtsbereich:

  • 1,3kg - 1,9kg

Sport / UAV (Einzel Motor) Gewichtsbereich:

  • 2,3kg - 4,6kg


  • Motor Kv: 560 RPM / Volt
  • Gewicht: 134g
  • Gewicht (inkl. Halterung Prop. Zub.): 152g
  • Motor Abmesseungen: 36,6 mm x 36,5 mm
  • Motorwelle Durchmesser: 5,98mm
  • Dauerstrom: 23A
  • Kontinuierliche Leistung: 510 Watt
  • Spitzenstrom: 32A
  • Spitzenleistung: 710 Watts
  • Max empf. Lipo: 6s
  • Stator Durchmesser: 30.0 mm
  • Stator Dicke: 17 mm
  • Anzahl Statorarme: 12
  • Magnet Pole: 14
  • Motor Wicklung: 10T/11T Deltascorpion-a-3017-motor-lieferumfang.jpg
  • Motor Kabel: 7-Strand x 0,25mm
  • Leerlaufstrom (IO/15V): 0,69 Amps
  • Motorinnenwiderstand: 80 mOhm
  • Motorinduktivit (phase-phase) @ 1khz: 20 mHrz

Lieferumfang:

  • 1 x A-3017 Motor mit Unterlegscheibe und Mutter
  • 1 x 44/58 mm Kreuzmontage + Schrauben
  • 3 x Rundsteckverbinder + Schrumpfschlauch
  • 3 x Skorpion-Aufkleber
  • 16 x 3 x 10 x 1 mm Druckabstandsscheiben
  • 4 x M3 x 10 Befestigungsschrauben
  • 4 x M3 x 16 Befestigungsschrauben

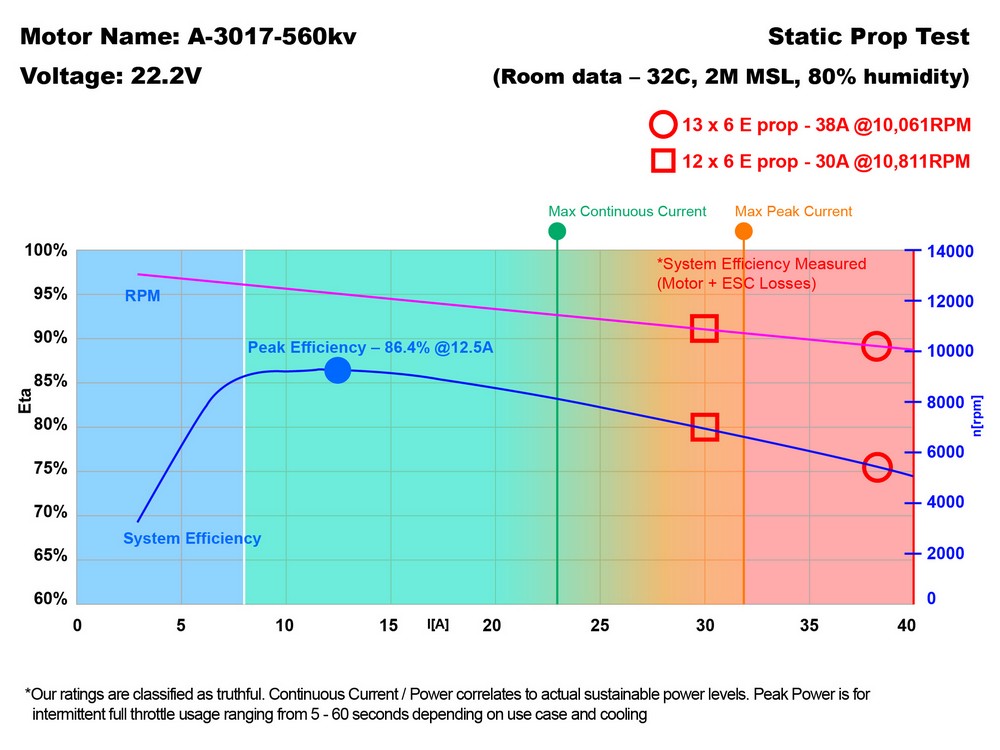

scorpion-a-3017-560kv---performance-chart.jpg scorpion-a-3017-series-dimension.jpg

 Scorpion A-3017-560KVscorpion-power-systems.png



The A-3017 series was designed specifically for 48" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 962w of power.
Also known as the 30-32E size. For the A-3017 we offer 3 x kv ranges of 560 / 600 / 920 for various applications and various voltage ranges.
The 560kv being specifically for smoother sport flying applications, or UAV applications.

Recommended Prop Selection:

  • 12x6 / 12x7 = Efficiency
  • 13x6 = For Standard Flight (not 3D)
  • 13x6.5 / 14x6 = High Alt

Recommended ESC:

  • Tribunus 06-80A ESC SBEC - SPORT

Acrobatic Weight Range -:

  • 1,3kg - 1,9kg

Sport / UAV (single engine) Weight Range :

  • 2,3kg - 4,6kg

Specifications:

  • Motor Kv: 560 RPM / Volt
  • Weight (Motor only): 134g
  • Weight (including mount + Prop mount accessories): 152g
  • Motor Body Dimensions: 36,6mm x 36,5mm
  • External Shaft Diameter: 5,98mm
  • Continuous Current: 23A
  • Continuous Power: 510 Watts
  • Peak Current: 32A
  • Peak Power: 710 Watts
  • Max Rated Lipo Cell: 6s
  • Stator Diameter: 30.0 mm
  • Stator Thickness: 17 mm
  • No. of Stator Arms: 12
  • Magnet Poles: 14
  • Motor Wind: 10T/11T Delta
  • Motor Wire: 7-Strand x 0,25mm
  • No-Load Current (IO/15V): 0,69 Amps
  • Motor Internal Resistance (phase-phase): 80 mOhm
  • Motor Inductance (phase-phase) @ 1khz: 20 mHrz

Included in the Box:

  • 1 x A-3017 Motor with prop washer & nut
  • 1 x 44/58mm Cross Mount + Screws
  • 3 x Female Bullet Connectors + heatshrink
  • 3 x Scorpion Stickers
  • 16 x 3x10x1mm thrust spacing washers
  • 4 x M3x10 moutning screws
  • 4 x M3x16 mounting screws
