Art.Nr.:
Hersteller:Scorpion

Scorpion HKII-2206-5300KV (2.3mm Shaft)

designed for the newer micro helicopters, such as the GAUI EP200, that goes with 2.3mm output shaft. All Scorpion HK Series 22mm motors come with 3.5mm male Bullet style connectors already attached ...

inkl. MwSt (19%)zzgl. Versandkosten
Lieferzeit:

kleine Menge

scorpion-power-systems.pngSCORPION HKII-2206-5300 (2,3mm Welle)



All Scorpion HK Series 22mm motors come with 3.5mm male Bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller, heatshrink to cover the bullet connectors and mounting screws. Since the HK series motors are primarily designed for Helicopter and Ducted Fan use, they do not include a prop adapter.
This motor is specifically designed for the newer micro helicopters, such as the GAUI EP200, that goes with 2.3mm output shaft.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

Technische Daten:
Scorpion: HKII-2206-5300KV
Stator Durchmesser: 22.0 mm
Stator Stärke: 6.0 mm
Stator Arme: 9
Pole: 6
Windungen: 16 Turn Delta

Draht: 8-Strand 0.21 mm
U/min/V: 5300
Leerlauf (Io): 2,12 A @ 6 V
Widerstand (Rm): 0.031 Ohm
Belastbarkeit: 18A
Max Leistung: 130 W
Gewicht: 34g

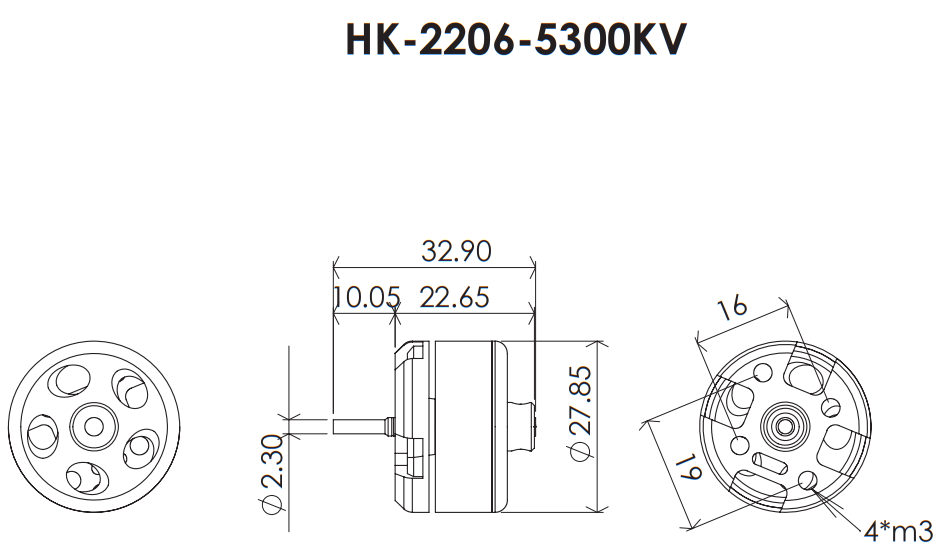

Durchmesser: 27.9 mm
Durchmesser Motorwelle: 2.3 mm
Motorlänge: 22.6 mm
Wellenlänge: 32.6 mm
Max. Lipo Zellen: 3S

Motor Timing: 5deg
Motor Frequenz: 8kHz

Lieferumfang:
1 x Scorpion HKII-2206-5300KV Motor
3 x Female Connectors
3 x Heat Shrink
4 x M2.5 Screws
