Hersteller:Scorpion

Scorpion HKII-4235-520Kv (Nick Maxwell Edition)

700er Power/ Performance Heli Brushlessmotor 520KV / 9600W in der Nick Maxwell Limited Edition - Leistung eines großen 4525-520 im kleineren Gehäuse!

inkl. MwSt (19%)zzgl. Versandkosten
Lieferzeit:

kleine Menge

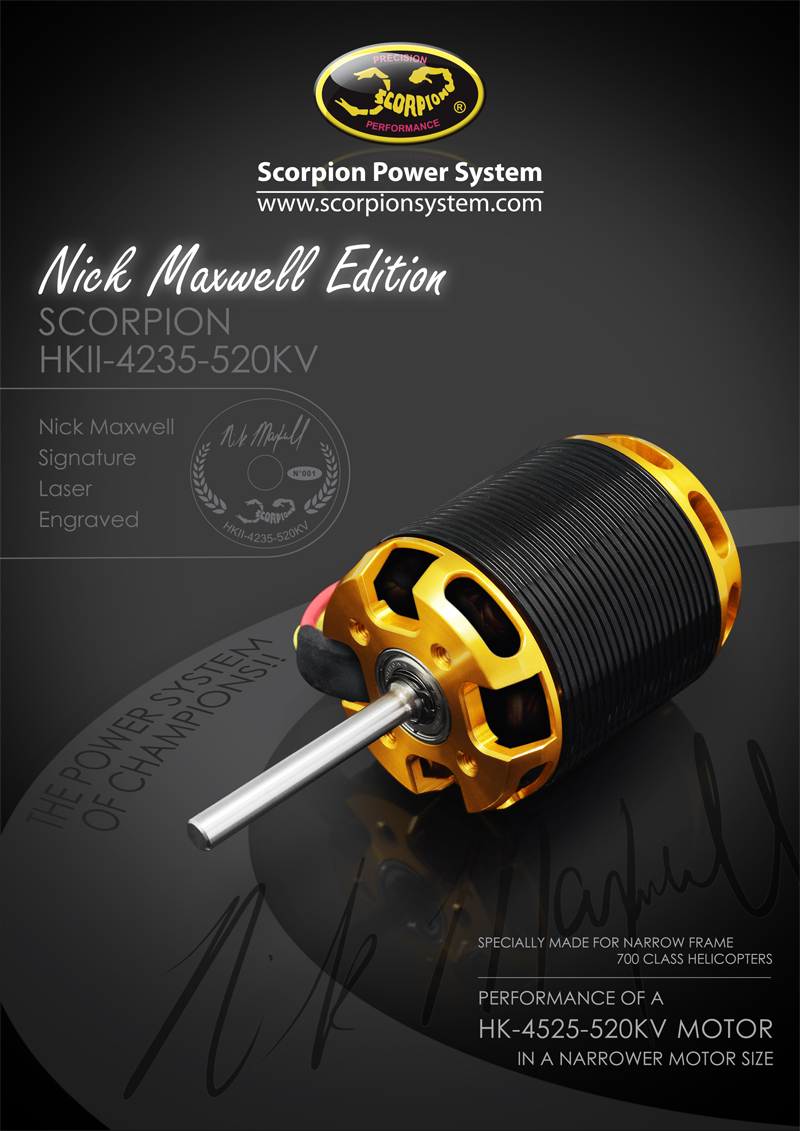

scorpion-power-systems.pngScorpion HKII-4235-520KV (Nick Maxwell Edition) - POWER des legendären 4525-520 schmaler verpackt!

Introducing our brand new motor, HKII-4235-520kv (Nick Maxwell Edition)! It is specially made for narrow frame 700 class helicopters. It has the power and performance of a HK-4525-520kv motor in a narrower motor frame. Additional to that, HKII-4235-520kv is leaser engraved with Nick Maxwell signature on the motor.

Stator Diameter.......................42 mm (1.65 in)
Stator Thickness......................35 mm (1.38 in)
No. of Stator Arms...................12
No. of Stator Poles...................10
Motor Wind.............................5+4 Turn Delta
Motor Wire..............................1-Strand 1.5 mm
Motor Kv.................................520KV RPM/Volt
No-Load Current (Io/10V).........2.3 Amps
Motor Resistance (RM)..............0.012 Ohms
Max Continuous Current............100 Amps
Max Continuous Power..............4450 Watts
Weight....................................519 Grams (18.18 oz)
Outside Diameter......................52.3 mm (2.06 in)
Shaft Diameter..........................5.98 mm (0.24 in)
Body Length..............................61.90 mm (2.45 in)
Overall Shaft Length...................110.0 mm (4.33 in)
Max Lipo Cell.............................12s
Max Peak Current.......................215A (2 seconds)
Max Peak Power.........................9600 Watts (2 seconds)
Motor Timing.............................5deg to 15 deg
Drive Frequency.........................8kHz
