HeliMotor der 700-800er Klasse sowie für Scalemodelle
Since January 2012 the HKIII-50 series has released, this is one of the best motor for helicopter in 700 Speed helicopter and 800 class.

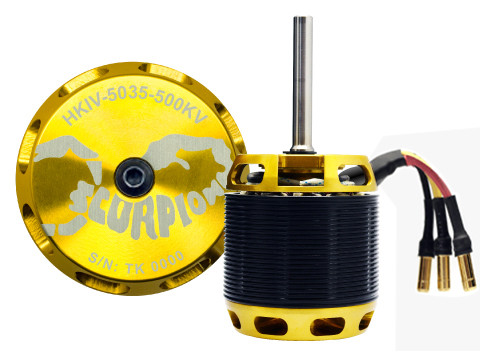

After 8 years now we are pleased to announce the forth generation of HK-50 motor, HKIV-5035 series motor!!! With the same motor design and materials of HKII-45 series, and single strand winding technique on this size of motor, it has the better efficiency and power conversion than HKIII-50 series, with an entirely new EM field design, while improving the compatibility with various speed controllers available on the market.
With the new design of the rotor and new configuration, Scorpion HKIV-5035 series not only provide even higher efficiency, but also higher peak power and higher torque with lower running temperature.
Specifications:
Stator Diameter: 50 mm
Stator Thickness: 35 mm
No. of Stator Arms: 12
Magnet Poles: 10
Motor Wind: 4+3 Turn Delta
Motor Wire: 1-Strand 1.8mm
Motor Kv: 500 RPM / Volt
No-Load Current (Io) @ 10 v 4.2 Amps
Motor Resistance (Rm): 0.0108 Ohms
Max Continuous Current: 120 Amps / 160A Peak
Max Continuous Power: 5328 Watts / 7104 Max
Weight: 785 Grams
Outside Diameter: 62.2 mm
Shaft Diameter: 7.98 mm (0.31 in)
Body Length: 69,2 mm
Overall Shaft Length: 124,8 mm
Max Lipo Cell: 12s
Motor Timing: 5deg
Drive Frequency: 8kHz
