ULTRA-GUARD 430 Back Up Solution Super Combo

incl. LED Flash & 430Mah Ultra Guard Lipo Battery, Pufferspeicher System für deinen RC Helikopter oder Flugzeug ...

++ Must Have Item ++
endlich wieder da!

ULTRA GUARD 430 is a small lightweight easy to install smart landing system designed to restore total backup control allowing you to land your model safely following a main power failure. A welcome new development and additional safeguard is the easy to fit Ultra Guard high intensity LED Flash Alarm..optipower-ultra-guard-banner-2.png

The device is plugged into a free port on your RX or FBL system and when you power up the device waits, monitors the system set voltage, then arms at that voltage less 0.5V. The device is then armed and monitoring the system voltage and the state of the buffer pack.
 If the buffer pack needs topping up it will do that and balance it from the main packs or RX pack and stop when it gets to a nominal 8.1V. The device samples the system voltage every 2mS and if the system voltage drops below the armed set voltage then the buffer pack steps in if the system voltage recovers it drops out, this is seamless. The device when working can and does indicate locally that its operational and if it is charging or not but this is not able to be seen at distance.
A separate external high intensity LED can be fitted that shows you are on the buffer pack, this is an option and these can be cascaded if required. The device works across 4.6V to 8V.
The combo version (the board and buffer pack) are bound together by clear shrink wrap as is the super combo version (inc LED system).
The total weight is <39g inc LED <35g ex the LED. All parts can be purchased separately. The device can go to storage charge if its not going to be used for some time.

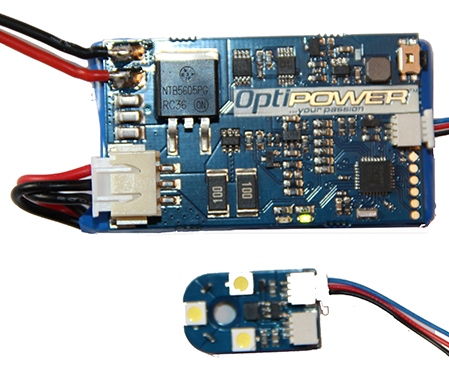

Benefits & Featuresoprus2s-l-ultra-guard-combo-led-optipower.jpg

  • Voltage Sensing 2 - 8.2V
  • harges and balances at upto 2C in flight
  • universal JR connector
  • JST-XH balance connection to main board
  • LED system status
  • Storage charge function
  • 5A continuous & 10A peak rated intermittent
  • Total weight just 40 grams
  • Vibration proof flexi board
  • Automotive industry quality components
  • Manufactured in Europe
